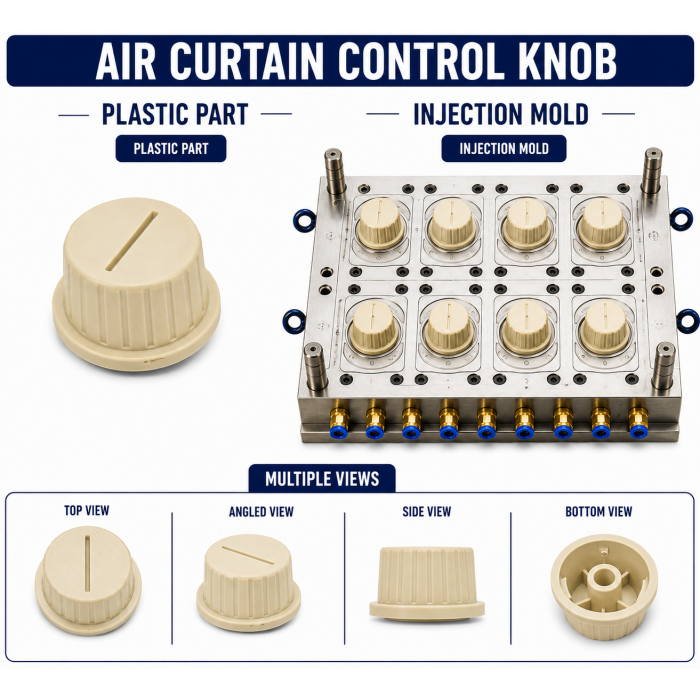

Air Curtain Plastic Control Knob Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd. provides precision Air Curtain Plastic Control Knob Mould and Moulding Service for manufacturing durable and accurately moulded plastic control knobs used in air curtain systems and HVAC equipment. The control knob is designed to provide convenient manual operation of functions such as fan speed, temperature, operating mode, timer, or other adjustable settings, depending on the equipment configuration.

Our plastic control knob moulding solutions can be customized according to the control shaft, switch interface, knob diameter, height, rotation angle, grip requirements, panel design, and installation method. The knob can be developed with features such as shaft bores, D-shaped or keyed interfaces, locating marks, pointer indicators, ribs, grooves, knurling, and retaining elements.

The injection mould is engineered for consistent reproduction of the knob's geometry, surface finish, and critical shaft interface. We support OEM, ODM, replacement-part, and bulk manufacturing requirements with tooling and injection moulding solutions based on component complexity and production volume.

Key Features

• Precision injection mould development for control knob production

• Accurate shaft and switch interface

• Customized knob diameter, height, and profile

• D-shaft, keyed, splined, or other compatible bore designs

• Comfortable grip geometry

• Pointer, indicator mark, or position-reference options

• Ribs, grooves, or textured surfaces for improved handling

• Consistent rotational fit and positioning

• Customized colour and surface finish options

• Lightweight and durable plastic construction

• Single-cavity or multi-cavity mould options

• OEM and ODM manufacturing support

Industrial Applications

Application Area	Usage
Air Curtain Systems	Manual control of operating functions
HVAC Equipment	Adjustment of selected control settings
Commercial Air Curtains	Fan speed or mode control interfaces
Industrial Air Curtains	Manual adjustment controls
Control Panels	Rotary control applications
Electrical Appliances	Plastic rotary knobs and interfaces
Replacement Parts	Replacement control knob manufacturing
OEM Production	Customized air curtain control knobs

Manufacturing Process

Product Design & Development

The control knob is designed according to the corresponding switch or control shaft dimensions, required rotation, grip requirements, panel clearance, and overall appliance appearance. Features such as shaft bores, keyways, pointer marks, ribs, grooves, and locating elements can be incorporated according to the application.

Plastic Mould Design

A precision injection mould is designed around the approved control knob geometry. Gate position, parting line, draft angles, cooling channels, ejection arrangement, cavity configuration, and visible surface requirements are evaluated for consistent moulding.

Mould Manufacturing

The mould can be manufactured using suitable tooling materials such as P20, H13, or S136 steel according to production volume, component complexity, durability, and surface finish requirements. CNC machining, EDM, drilling, grinding, polishing, and mould fitting processes may be used.

Injection Moulding

The selected plastic material is heated and injected into the mould cavity under controlled processing conditions. After cooling and solidification, the control knob is ejected from the mould.

Finishing & Assembly

Moulded control knobs are inspected for flash, sink marks, short shots, warpage, scratches, and other surface defects. Secondary operations such as trimming, cleaning, printing, marking, or assembly can be performed when required.

Quality Inspection

Finished knobs are inspected for dimensions, shaft-bore accuracy, mounting fit, rotation interface, pointer alignment, surface quality, and overall moulding consistency.

Raw Materials

Material	Suitable Characteristics
ABS	Good rigidity, surface finish, and dimensional stability
PP	Lightweight and suitable for selected knob designs
HIPS	Suitable impact resistance for selected appliance applications
PC+ABS	Good strength and dimensional stability
PBT	Good dimensional stability for functional components
Nylon	High mechanical strength for demanding shaft interfaces
PC	Good strength and dimensional stability
Glass-Filled Nylon	Increased stiffness for demanding mechanical applications
Flame-Retardant Plastic	Can be selected where specific fire-performance requirements apply

Material selection should consider grip requirements, shaft-interface strength, rotational loads, temperature exposure, dimensional stability, surface finish, and the intended operating environment.

Quality Control

Raw Material Inspection

Plastic resin is checked against the specified material grade and production requirements before processing.

Mould Inspection

The mould is inspected for cavity dimensions, alignment, parting surfaces, cooling channels, ejector operation, and critical shaft-interface features.

Dimensional Inspection

Important dimensions such as knob diameter, height, shaft bore, keyway, wall thickness, pointer position, and mounting features are checked against approved specifications.

Visual Inspection

Components are inspected for flash, short shots, sink marks, warpage, flow marks, weld lines, scratches, burn marks, and colour variation.

Fitment & Functional Inspection

The knob can be checked for shaft fitment, rotational engagement, pointer alignment, mounting stability, and compatibility with the corresponding control mechanism.

Packaging Inspection

Finished control knobs are appropriately packed to minimize scratches, deformation, contamination, and damage during transportation.

Buyer Guide

1. Provide Control Shaft Specifications

Share shaft diameter, shaft shape, keyway dimensions, spline details, insertion depth, and required mounting arrangement.

2. Define Knob Design Requirements

Specify knob diameter, height, grip profile, pointer location, surface texture, colour, and other appearance requirements.

3. Provide Drawings or Samples

2D drawings, 3D CAD files, physical samples, photographs, or existing control knobs can be used as references for product and mould development.

4. Select the Appropriate Plastic

Material should be selected according to mechanical strength, rotational loads, temperature exposure, dimensional stability, grip requirements, and surface finish.

5. Confirm Production Volume

Expected batch quantity and annual demand help determine the appropriate mould material, cavity configuration, tooling design, and production strategy.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Our injection moulding capabilities support consistent production of precision plastic control knobs with accurate dimensions and repeatable quality.

In-House Mould Manufacturing

Our mould manufacturing expertise helps maintain control over critical shaft interfaces, cavity geometry, surface finish, ejection, and dimensional requirements.

OEM & ODM Manufacturing

Customized control knobs can be manufactured according to customer drawings, CAD files, samples, dimensions, and specific air curtain requirements.

Quality Assurance

Material inspection, mould inspection, dimensional checking, visual inspection, and fitment testing help maintain consistent production quality.

Cost-Effective Manufacturing

Optimized mould design, suitable material selection, and efficient injection moulding processes support economical manufacturing for different order volumes.

Frequently Asked Questions

1. What is an Air Curtain Plastic Control Knob?

An Air Curtain Plastic Control Knob is a moulded plastic rotary control component used to manually adjust selected functions of an air curtain system.

2. Which materials can be used for plastic control knobs?

ABS, PP, HIPS, PC+ABS, PBT, Nylon, PC, Glass-Filled Nylon, and suitable flame-retardant plastics can be considered according to mechanical, thermal, dimensional, and application requirements.

3. Can the control knob be customized for different shaft designs?

Yes. The shaft bore can be developed for D-shaped, keyed, splined, round, or other compatible shaft configurations according to the control mechanism.

4. Can markings or pointer indicators be added to the knob?

Yes. Pointer indicators, position markings, textures, grooves, colours, and other visual or functional features can be incorporated according to the approved design.

5. Can you manufacture Air Curtain Plastic Control Knobs for bulk production?

Yes. Single-cavity or multi-cavity mould solutions can be considered according to knob size, component complexity, production quantity, annual demand, and required manufacturing efficiency.
