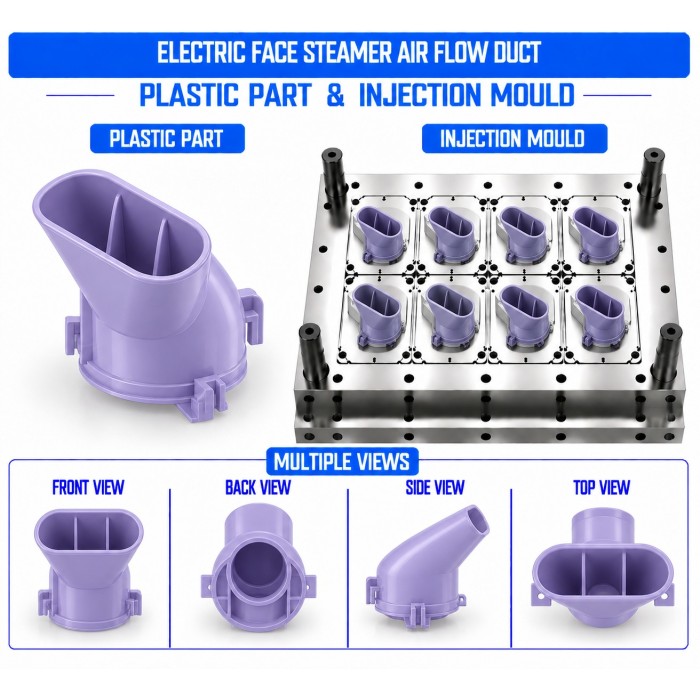

Electric Face Steamer Plastic Air Flow Duct Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd. provides Electric Face Steamer Plastic Air Flow Duct Mould and Moulding Service for manufacturing precision-moulded plastic air flow ducts used in electric face steamers and facial steaming appliances. The air flow duct forms a defined internal passage for directing and managing air movement between the fan, steam-generation area, air inlet, steam outlet, or other internal sections according to the appliance design.

The air flow duct can be developed according to the required airflow path, duct dimensions, inlet and outlet positions, fan interface, steam passage, mounting arrangement, internal clearances, and surrounding housing geometry. Injection moulding supports consistent duct dimensions, smooth internal surfaces, accurate interfaces, and repeatable assembly for OEM and customized appliance production.

Key Features

• Precision-moulded plastic air flow duct

• Designed for internal airflow management in electric face steamers

• Customized duct dimensions according to appliance geometry

• Defined inlet and outlet passages

• Accurate connection with fan housing or airflow components

• Smooth internal surfaces for controlled air passage

• Mounting bosses, clips, tabs, ribs, and locating features

• Proper clearance from electrical and heat-generating components

• Provision for sealing or gasket interfaces where required

• Controlled wall thickness for dimensional consistency

• Reinforced mounting and connection areas

• Customized colour and surface finish where visible

• Lightweight and compact internal design

• Repeatable fitment during assembly

• Suitable for OEM, ODM, and customized production

Industrial Applications

Manufacturing Process

1. Product Design & Development

The air flow duct is developed according to the fan position, air inlet and outlet locations, steam-generation arrangement, housing geometry, required passage dimensions, and internal component clearances. Airflow direction, duct bends, transitions, mounting points, and interfaces with adjacent components are considered during product development.

2. Plastic Mould Design

A precision injection mould is designed according to the air flow duct geometry. Cavity and core configuration, parting line, gate location, cooling channels, draft angles, venting, and ejection arrangement are planned to support accurate formation of internal passages, connection interfaces, ribs, and mounting features.

3. Mould Manufacturing

The mould components are precision-machined, fitted, polished, assembled, and inspected. Suitable mould steel such as P20 Steel, H13 Steel, or S136 Steel can be selected according to production volume, required mould life, dimensional requirements, and surface-finish specifications.

4. Injection Moulding

The selected thermoplastic material is heated and injected into the mould cavity under controlled processing conditions. Injection pressure, melt temperature, holding pressure, cooling time, and cycle time are controlled according to the resin and air flow duct geometry.

5. Finishing & Assembly Preparation

After moulding, gates and excess plastic are removed where applicable. Air passages, inlet and outlet openings, mounting features, sealing interfaces, and connection points are checked and prepared for assembly.

6. Quality Inspection

Finished air flow ducts are inspected for dimensions, passage geometry, opening sizes, mounting features, surface quality, warpage, flash, and proper fitment with the fan, steam-generation assembly, and surrounding housing.

Raw Materials

The final plastic grade should be selected according to airflow temperature, steam/moisture exposure, proximity to the heater or steam generator, mechanical requirements, vibration, dimensional stability, and electrical environment. For ducts carrying or located near hot steam, the selected material should be validated for the actual operating temperature and moisture conditions.

Quality Control

• Raw Material Inspection: Verification of the specified resin grade, colour, and incoming material condition.

• Mould Inspection: Checking cavity, core, internal passage-forming sections, cooling system, parting surfaces, and ejection mechanism.

• Dimensional Inspection: Measurement of duct dimensions, wall thickness, inlet/outlet openings, mounting points, and critical interfaces.

• Air Passage Inspection: Verification of internal duct geometry, passage continuity, openings, and connection interfaces.

• Visual Inspection: Checking for flash, short shots, sink marks, burn marks, scratches, weld lines, and warpage.

• Fitment Inspection: Verification of connection with the fan housing, steam-generation assembly, nozzle, or surrounding enclosure.

• Assembly Inspection: Checking mounting, alignment, clearances, and sealing interfaces where applicable.

• Packaging Inspection: Protection of finished ducts against deformation, scratches, dust, and handling damage.

Buyer Guide

When sourcing an Electric Face Steamer Plastic Air Flow Duct Mould and Moulding Service, buyers should provide:

• Overall duct dimensions

• 2D engineering drawing or 3D CAD model

• Air inlet and outlet dimensions

• Required airflow direction and passage geometry

• Fan housing or fan interface dimensions

• Steam-generation assembly interface, if applicable

• Mounting bosses, clips, tabs, ribs, or locating features

• Required sealing or gasket arrangement

• Internal component clearances

• Operating temperature and steam/moisture exposure

• Preferred plastic grade

• Required colour and surface finish

• Expected production quantity

• Prototype or sampling requirements

Providing accurate airflow, fan, steam-generation, and housing specifications helps in developing the mould with suitable passage geometry, component clearance, mounting, and assembly compatibility.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Renovator Appliances Ltd. provides precision injection moulding solutions for customized airflow and internal plastic components used in electric face steamers and personal care appliances.

In-House Mould Manufacturing

Mould development and manufacturing can be coordinated according to air duct geometry, internal passages, mounting features, operating conditions, and production volume.

OEM & ODM Manufacturing

Customized air flow ducts can be developed according to customer drawings, CAD models, samples, or approved technical specifications.

Quality Assurance

Raw materials, moulds, dimensions, internal passages, interfaces, surface quality, and assembly fitment can be inspected throughout the manufacturing process.

Cost-Effective Manufacturing

Optimized mould design and controlled injection moulding processes support consistent production and economical manufacturing for suitable development and production quantities.

Frequently Asked Questions

1. What is an Electric Face Steamer Plastic Air Flow Duct?

It is a moulded plastic component that provides a defined internal passage for directing and managing airflow or air movement within an electric face steamer according to the appliance design.

2. Which materials can be used for an air flow duct?

PP, ABS, HIPS, PC+ABS, PBT, Nylon/PA, glass-filled nylon, PC, and suitable flame-retardant or heat-resistant engineering plastics can be considered according to temperature, moisture, mechanical, dimensional, and electrical requirements.

3. Can the air flow duct be customized according to the face steamer design?

Yes. Duct dimensions, inlet and outlet positions, passage geometry, fan interface, mounting features, sealing provisions, colour, and surface finish can be customized according to the approved appliance design.

4. Can the air flow duct be designed for hot steam or heated airflow?

Yes. The duct geometry can be developed for the required airflow or steam path, but the selected plastic grade must be validated for the actual temperature, moisture exposure, and proximity to the steam or heat-generating components.

5. Can Renovator Appliances Ltd. manufacture both the air flow duct mould and moulded components?

Yes. Renovator Appliances Ltd. can support mould development, mould manufacturing, and injection moulding of customized electric face steamer plastic air flow ducts according to customer drawings, CAD models, samples, and production specifications.
