Electric Flour Mill Plastic Anti Vibration Foot Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

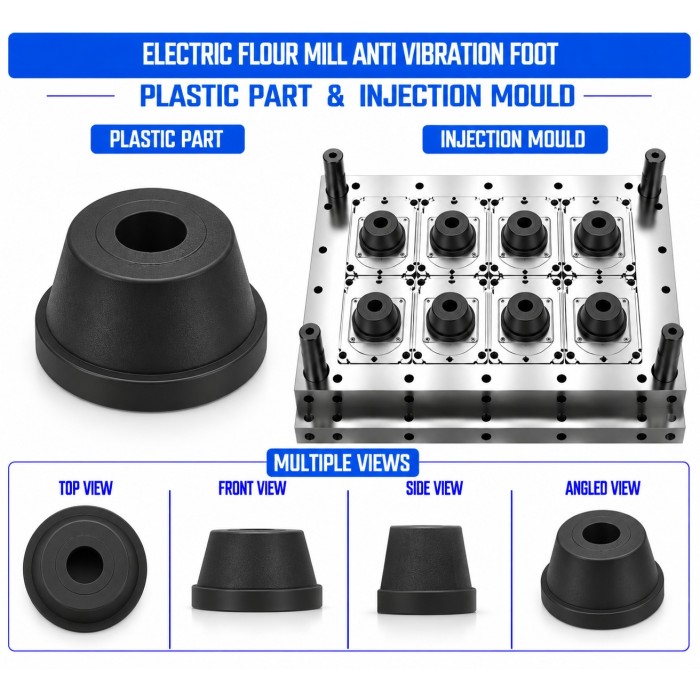

Renovator Appliances Ltd. provides Electric Flour Mill Plastic Anti Vibration Foot Mould and Moulding Service for manufacturing precision-moulded plastic anti-vibration feet used in domestic and commercial electric flour mills. The anti-vibration foot is designed to support the machine base, provide stable floor contact, and help reduce the transmission of movement and vibration from the operating motor and grinding mechanism to the supporting surface.

The plastic anti-vibration foot can be developed according to the flour mill base geometry, machine weight, mounting arrangement, floor-contact area, vibration conditions, and required clearance. Depending on the design, the moulded plastic component can also provide an interface for a separate rubber or elastomeric pad. Injection moulding supports consistent dimensions, accurate mounting features, controlled geometry, and repeatable assembly.

Key Features

• Precision-engineered plastic anti-vibration foot

• Designed according to electric flour mill base requirements

• Supports stable floor contact and machine positioning

• Suitable for mounting with screws, slots, clips, tabs, or press-fit arrangements

• Provision for separate rubber or elastomeric vibration-damping pad where required

• Reinforced mounting and load-bearing areas

• Controlled contact geometry for consistent positioning

• Accurate dimensions for proper fitment with the flour mill base

• Suitable for different machine sizes and base configurations

• Customized colours, textures, and surface finishes

• Controlled wall thickness for consistent moulding

• Suitable for OEM, ODM, and customized flour mill designs

Industrial Applications

Manufacturing Process

1. Product Design & Development

The anti-vibration foot is developed according to the flour mill base dimensions, machine weight, mounting arrangement, floor-contact area, and operating conditions. Load-bearing areas, mounting features, contact geometry, clearances, wall thickness, and the interface with any rubber or elastomeric pad are evaluated during product development.

2. Plastic Mould Design

The injection mould is designed according to the anti-vibration foot geometry. The cavity, core, parting line, gate location, runner system, cooling channels, venting, and ejection arrangement are planned to accurately form mounting bosses, slots, ribs, contact surfaces, and other required features.

3. Mould Manufacturing

The mould can be manufactured using suitable tool steel such as P20 Steel, H13 Steel, or S136 Steel, depending on production volume, required mould life, dimensional requirements, and surface finish. CNC machining, EDM, grinding, polishing, fitting, and mould assembly are carried out as required.

4. Injection Moulding

The selected thermoplastic material is heated and injected into the mould cavity under controlled processing conditions. Injection pressure, melt temperature, holding pressure, cooling time, and cycle time are adjusted according to the selected material and component geometry.

5. Finishing & Assembly Preparation

After moulding, gates and excess plastic are removed where applicable. The anti-vibration foot is inspected for mounting features, contact surfaces, sharp edges, and proper interface with the flour mill base. If a separate elastomeric pad is specified, the plastic component can be prepared for its assembly.

6. Quality Inspection

Finished anti-vibration feet are inspected for dimensional accuracy, mounting geometry, contact-area consistency, surface quality, warpage, flash, and proper fitment with the flour mill base and associated components.

Raw Materials

The final material should be selected according to the machine weight, mounting loads, vibration conditions, operating temperature, floor-contact requirements, and surrounding environment. A moulded plastic foot alone does not necessarily provide significant vibration damping; where vibration isolation is required, a suitable rubber, TPE, TPU, or other elastomeric interface may be incorporated and validated according to the actual application.

Quality Control

• Raw Material Inspection: Plastic grade, colour, and incoming material condition are checked before production.

• Mould Inspection: Cavity, core, parting surfaces, cooling system, venting, and ejection arrangement are inspected.

• Dimensional Inspection: Overall dimensions, mounting points, contact area, wall thickness, and critical interfaces are checked.

• Visual Inspection: Components are checked for flash, short shots, sink marks, warpage, burn marks, scratches, and other moulding defects.

• Fitment Inspection: The foot is checked against the specified flour mill base for correct positioning and mounting.

• Stability & Interface Inspection: Contact geometry, mounting retention, and the interface with any specified elastomeric pad are checked according to the approved design.

• Packaging Inspection: Finished components are packed appropriately to minimize scratches, deformation, dust, and handling damage.

Buyer Guide

When sourcing an Electric Flour Mill Plastic Anti Vibration Foot Mould and Moulding Service, buyers should provide the flour mill base dimensions, machine weight, mounting arrangement, foot dimensions, floor-contact area, vibration requirements, required clearance, 2D engineering drawing or 3D CAD model, preferred plastic grade, colour, surface finish, and expected production quantity.

If the design requires vibration damping, buyers should also specify whether a separate rubber, TPE, TPU, or other elastomeric pad is required. For new product development, special attention should be given to load distribution, mounting strength, floor-contact geometry, machine stability, operating vibration, material hardness, and the actual interface between the plastic foot and supporting surface.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Our injection moulding capabilities support consistent production of precision plastic anti-vibration feet with repeatable dimensions, mounting features, and surface quality.

In-House Mould Manufacturing

Mould development and manufacturing can be coordinated according to the foot geometry, mounting requirements, production volume, and dimensional specifications.

OEM & ODM Manufacturing

Customized anti-vibration feet can be developed and manufactured according to customer drawings, CAD models, samples, or approved product specifications.

Quality Assurance

Raw materials, moulds, dimensions, mounting features, contact geometry, appearance, and assembly interfaces can be inspected throughout the manufacturing process.

Cost-Effective Manufacturing

Optimized mould design, suitable material selection, and controlled injection moulding processes can support economical production for different order volumes.

Frequently Asked Questions

1. What is an Electric Flour Mill Plastic Anti Vibration Foot?

It is a moulded plastic support component fitted beneath an electric flour mill to provide machine support, positioning, and floor contact. A separate elastomeric pad can be incorporated where vibration damping is required.

2. Which plastic materials can be used for an anti-vibration foot?

PP, ABS, HDPE, HIPS, PC+ABS, PBT, Nylon/PA, Glass-Filled Nylon, and suitable engineering plastics can be considered according to the required load, strength, dimensional stability, and operating conditions. TPE or TPU may be considered for an elastomeric damping interface.

3. Which steel is suitable for the anti-vibration foot mould?

P20 Steel, H13 Steel, or S136 Steel can be selected depending on production volume, required mould life, dimensional requirements, surface finish, and mould design complexity.

4. Can the anti-vibration foot be customized according to the flour mill design?

Yes. Foot dimensions, mounting arrangement, contact area, screw bosses, slots, clips, ribs, elastomer-pad interface, colour, texture, and surface finish can be customized according to the approved flour mill design.

5. Can Renovator Appliances Ltd. provide both mould making and moulding?

Yes. Renovator Appliances Ltd. can support mould development, mould manufacturing, and injection moulding for customized electric flour mill plastic anti-vibration feet, subject to the required design and production specifications.
