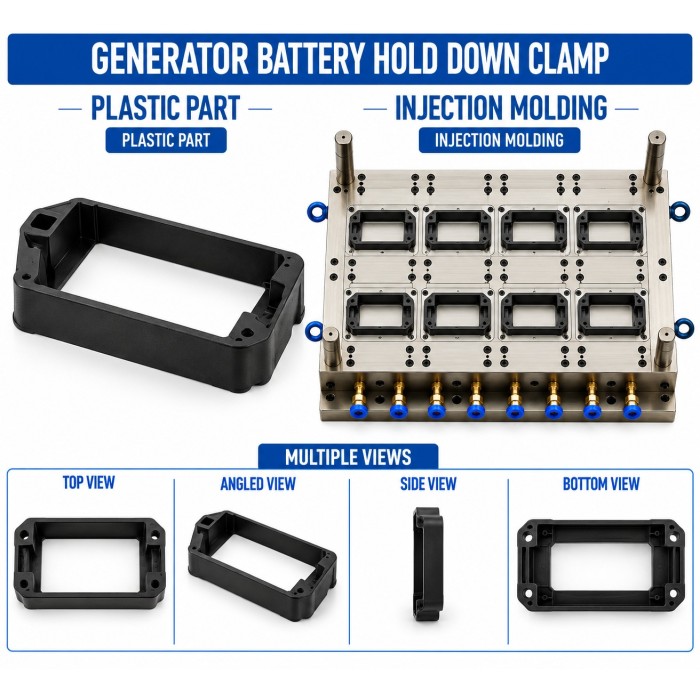

Generator Plastic Battery Hold Down Clamp Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd manufactures Generator Plastic Battery Hold Down Clamp Mould and Moulding Service for battery-retention assemblies used in generator sets. The component helps hold the battery securely in its designated position and limits unwanted movement caused by generator vibration, handling, or transportation.

The mould is developed according to the battery dimensions, clamp profile, mounting arrangement, required clamping position, fastener interface, clearance around battery terminals, and available installation space. Where the plastic component works together with threaded rods, bolts, brackets, or a metal support, the moulded part is designed to provide the required locating and retaining features without interfering with the complete battery mounting system.

Key Features

• Application-specific design for generator battery mounting

• Controlled clamp profile according to battery dimensions

• Accurate mounting-hole, slot, or fastener interface

• Locating features for stable battery positioning

• Clearance around battery terminals and cable connections

• Reinforcing ribs for improved stiffness where required

• Smooth contact surfaces to reduce damage to the battery casing

• Controlled wall thickness for consistent moulding

• Suitable for vibration-exposed generator applications

• Compatible with specified mechanical fastening arrangements

• Suitable for OEM and replacement-part manufacturing

Industrial Applications

Manufacturing Process

1. Product Design & Development

The clamp is designed according to the battery length, width, height, mounting position, contact area, required retention force, and generator frame arrangement. Clearance for battery terminals, cables, ventilation, servicing, and adjacent components is incorporated into the design.

2. Plastic Mould Design

The mould is developed with the required clamp profile, mounting holes or slots, locating features, ribs, fastening interfaces, and draft angles. Gate placement and cavity geometry are optimized to maintain dimensional stability in areas subjected to clamping loads.

3. Mould Manufacturing

The mould is manufactured using suitable mould steel such as P20, H13, or S136 Steel depending on production volume, tool-life requirements, material selection, and required dimensional accuracy. Precision machining ensures accurate formation of mounting and locating features.

4. Injection Moulding

The selected plastic is heated and injected into the mould cavity under controlled processing conditions. Injection pressure, temperature, packing, and cooling parameters are adjusted to achieve consistent dimensions, stiffness, and surface quality.

5. Finishing & Assembly Preparation

After moulding, the clamp is trimmed and inspected for flash, gate vestige, sharp edges, and surface defects. Mounting holes, slots, locating features, and battery-contact surfaces are checked before assembly.

6. Quality Inspection

Finished components are inspected for overall dimensions, mounting-hole position, clamp geometry, wall thickness, stiffness, battery clearance, and fitment with the corresponding battery tray or generator frame. Functional trial assembly can be performed with the actual battery mounting hardware.

Raw Materials

The final material should be selected according to battery weight, required clamping force, generator vibration, operating temperature, exposure to moisture or battery-related chemicals, and the design of the complete mounting assembly.

Quality Control

Renovator Appliances Ltd focuses on dimensional and functional inspection of the battery hold down clamp. Key inspection points include:

• Battery contact and locating dimensions

• Overall clamp profile

• Mounting-hole or slot position

• Fastener interface dimensions

• Wall thickness consistency

• Rib and reinforcement geometry

• Clearance around battery terminals and cables

• Surface condition and edge quality

• Resistance to deformation under the specified load

• Fitment with the battery tray and generator frame

• Batch-to-batch dimensional consistency

Buyer Guide

When sourcing Generator Plastic Battery Hold Down Clamp Mould and Moulding Service, buyers should provide the battery dimensions and weight, mounting arrangement, required clamp position, fastening method, generator frame dimensions, battery tray details, expected vibration conditions, and production quantity.

The complete battery-retention system should be evaluated rather than treating the plastic clamp as an isolated load-bearing component. If the clamp carries significant retention force, the plastic material, reinforcement, fasteners, and supporting frame should be validated together for static load, vibration, and long-term durability.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Controlled injection moulding processes support consistent production of generator battery hold down clamps with accurate mounting and locating geometry.

In-House Mould Manufacturing

In-house tooling capabilities allow the mould to be developed around the actual battery, tray, frame, and fastening arrangement.

OEM & ODM Manufacturing

Custom moulds and moulded battery-retention components can be developed from OEM drawings, CAD models, physical samples, or generator assembly requirements.

Quality Assurance

Dimensional inspection, trial fitment, visual inspection, and functional checks help maintain consistent battery clamp quality.

Cost-Effective Manufacturing

Optimized mould design and repeatable injection moulding processes support efficient production for development, replacement, and high-volume OEM requirements.

Frequently Asked Questions

1. What is a Generator Plastic Battery Hold Down Clamp used for?

It is used as part of the battery-retention system to help restrict battery movement within the generator battery mounting area.

2. Can the clamp be customized for a specific battery?

Yes. The clamp can be designed according to the battery dimensions, mounting position, tray configuration, fastening arrangement, and required clearances.

3. Which plastic material is suitable for a battery hold down clamp?

Nylon, Glass-Filled Nylon, PP, ABS, PC+ABS, and other engineering plastics may be considered depending on the required stiffness, load, vibration resistance, temperature, and chemical exposure.

4. Can the plastic clamp withstand generator vibration?

The component can be designed for the specified vibration environment, but its final performance should be validated as part of the complete battery mounting assembly, including fasteners, tray, frame, and battery.

5. Can Renovator Appliances Ltd manufacture both the mould and the battery hold down clamps?

Yes. The service can include mould design and manufacturing followed by injection moulding of Generator Plastic Battery Hold Down Clamp components according to the required OEM specifications.
