Product Overview

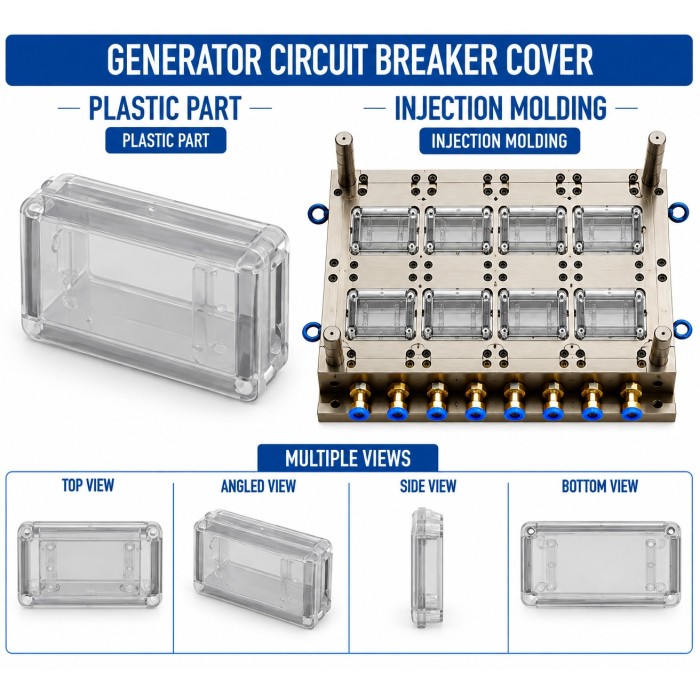

Renovator Appliances Ltd manufactures Generator Plastic Circuit Breaker Cover Mould and Moulding Service for protective covers used around circuit breaker assemblies in generator control panels and electrical enclosures. The cover helps protect the breaker and its surrounding electrical connections from accidental contact, dust, moisture, and mechanical interference while maintaining the required access for breaker operation and inspection.

The mould is developed according to the circuit breaker dimensions, mounting arrangement, switch or toggle position, terminal clearance, cable-entry requirements, panel thickness, and available installation space. Injection moulding provides accurate openings, consistent wall thickness, secure mounting features, and repeatable production for generator electrical assemblies.

Key Features

• Application-specific cover design for generator circuit breaker assemblies

• Protective enclosure around the circuit breaker area

• Accurate clearance around breaker terminals and wiring

• Switch or toggle access opening according to the breaker design

• Mounting holes, clips, tabs, or fastening features as required

• Reinforcing ribs for improved cover stiffness

• Controlled wall thickness for dimensional stability

• Smooth edges around operating and cable-access openings

• Suitable electrical insulation properties according to selected material

• Consistent fitment with generator control panels and enclosures

• Suitable for OEM and replacement-part manufacturing

Industrial Applications

Manufacturing Process

1. Product Design & Development

The cover is designed according to the circuit breaker body dimensions, toggle or switch position, terminal locations, mounting arrangement, panel thickness, and cable routing. Required operator access and clearance from electrical connections are incorporated into the component design.

2. Plastic Mould Design

The mould incorporates the breaker profile, operating opening, mounting bosses or clips, terminal clearances, cable-entry features, ribs, draft angles, and parting-line arrangement. Gate placement is selected to maintain dimensional stability around critical openings and mounting areas.

3. Mould Manufacturing

The mould is manufactured using suitable mould steel such as P20, H13, or S136 Steel based on production volume, required mould life, material selection, and surface-finish requirements. Precision machining ensures accurate formation of breaker openings and mounting features.

4. Injection Moulding

The selected plastic is heated and injected into the mould cavity under controlled processing conditions. Injection pressure, temperature, packing, and cooling are optimized to minimize warpage, sink marks, flash, and dimensional variation around the circuit breaker opening.

5. Finishing & Assembly Preparation

After moulding, the covers are trimmed and inspected for flash, gate vestige, sharp edges, and surface defects. Breaker openings, mounting features, cable clearances, and operating access areas are checked before assembly.

6. Quality Inspection

Finished covers are inspected for overall dimensions, breaker clearance, toggle access, mounting-hole position, wall thickness, surface finish, and fitment with the generator control panel. Trial assembly with the actual circuit breaker and panel can be performed to verify operation and clearance.

Raw Materials

Material selection should be based on the complete electrical enclosure design, operating temperature, voltage/current environment, flame-resistance requirements, mechanical exposure, and applicable safety standards.

Quality Control

Renovator Appliances Ltd performs dimensional, visual, and fitment inspections for circuit breaker covers. Key inspection points include:

• Circuit breaker body clearance

• Toggle or switch operating clearance

• Terminal and cable clearance

• Mounting-hole and clip position

• Wall thickness consistency

• Panel fitment

• Surface finish and edge condition

• Flash and moulding defect inspection

• Material and colour consistency

• Dimensional stability between production batches

Electrical creepage, clearance, insulation, flame-resistance, and enclosure requirements should be validated for the complete generator electrical assembly according to the applicable specifications and standards.

Buyer Guide

When sourcing Generator Plastic Circuit Breaker Cover Mould and Moulding Service, buyers should provide the circuit breaker model or dimensions, panel thickness, toggle position, terminal locations, cable-entry requirements, mounting arrangement, required operating access, material requirements, and production quantity.

For outdoor generators, environmental protection should be considered together with the complete control-panel enclosure. The cover should not restrict circuit breaker operation, servicing, ventilation requirements, or required electrical clearances.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Controlled injection moulding processes support accurate production of generator circuit breaker covers with consistent openings and mounting geometry.

In-House Mould Manufacturing

In-house tooling capabilities allow the mould to be developed around the actual circuit breaker, panel, wiring, and enclosure requirements.

OEM & ODM Manufacturing

Custom moulds and circuit breaker covers can be developed from OEM drawings, CAD data, physical samples, or electrical panel specifications.

Quality Assurance

Dimensional inspection, visual checks, trial fitment, and production monitoring help maintain consistent electrical cover quality.

Cost-Effective Manufacturing

Optimized tooling and repeatable injection moulding processes support efficient production for development quantities, replacement components, and high-volume OEM requirements.

Frequently Asked Questions

1. What is a Generator Plastic Circuit Breaker Cover used for?

It provides protective coverage around a generator circuit breaker assembly while maintaining access to the breaker operating mechanism and required electrical connections.

2. Can the cover be customized for a specific circuit breaker?

Yes. The mould can be developed according to the breaker dimensions, toggle position, terminal arrangement, panel thickness, mounting method, and cable-routing requirements.

3. Which plastic material is suitable for a circuit breaker cover?

ABS, PC+ABS, flame-retardant ABS, flame-retardant PC+ABS, Nylon/PA, and other suitable engineering plastics may be considered according to the electrical and environmental requirements.

4. Can the cover include an opening for the circuit breaker switch?

Yes. The mould can incorporate a precisely positioned operating opening or protective interface according to the circuit breaker's toggle or switch design.

5. Can Renovator Appliances Ltd manufacture both the mould and the circuit breaker covers?

Yes. The service can include mould design and manufacturing followed by injection moulding of Generator Plastic Circuit Breaker Cover components according to the required OEM specifications.
