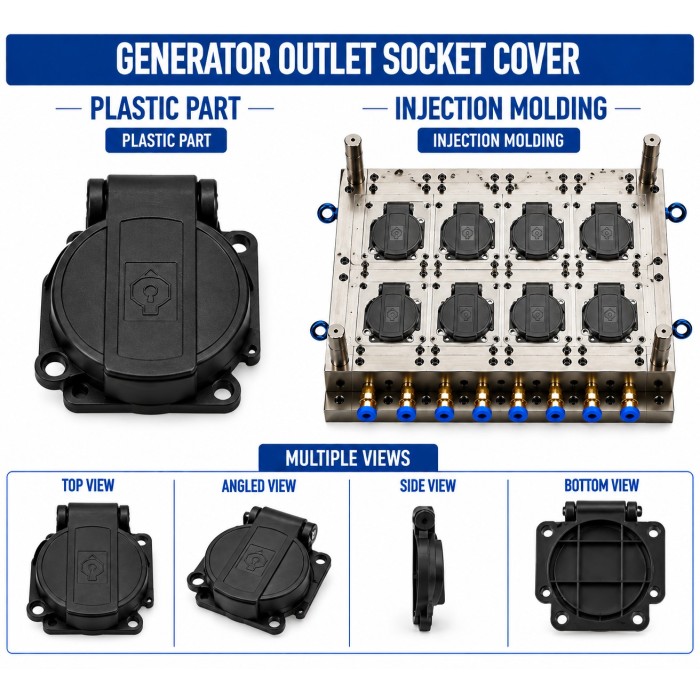

Generator Plastic Outlet Socket Cover Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd manufactures Generator Plastic Outlet Socket Cover Mould and Moulding Service for protective covers used around electrical outlet sockets installed on generator control panels or electrical enclosures. The cover helps protect the socket area from dust, moisture, accidental contact, and mechanical interference while maintaining the required access for plugging in electrical equipment.

The mould is developed according to the outlet socket dimensions, socket face profile, mounting arrangement, plug clearance, cable/wiring space, cover opening, and generator panel geometry. Injection moulding provides accurate socket alignment, consistent wall thickness, reliable mounting features, and repeatable production for generator applications.

Key Features

• Application-specific cover design for generator outlet socket assemblies

• Protective coverage around electrical socket areas

• Accurate socket opening and plug-access geometry

• Clearance for plug insertion and removal

• Mounting holes, clips, tabs, or fastening features as required

• Reinforcing ribs for improved structural stability

• Controlled wall thickness for dimensional consistency

• Smooth edges around the socket access opening

• Optional hinged or removable cover arrangement where required

• Material options suitable for electrical enclosure applications

• Consistent fitment with generator control panels

• Suitable for OEM and replacement-part production

Industrial Applications

Manufacturing Process

1. Product Design & Development

The socket cover is designed according to the outlet socket dimensions, socket face shape, plug configuration, panel thickness, mounting arrangement, and required access area. Clearance for plug insertion, removal, and cable movement is considered during development.

2. Plastic Mould Design

The mould incorporates the socket opening, cover profile, mounting features, hinge or retaining elements where applicable, ribs, locating features, and draft angles. Parting-line and gate locations are selected to maintain accurate geometry around the socket-access area.

3. Mould Manufacturing

The mould is manufactured using suitable mould steel such as P20, H13, or S136 Steel based on production quantity, required tool life, material selection, and surface-finish requirements. Precision machining ensures accurate socket opening and mounting-feature dimensions.

4. Injection Moulding

The selected plastic material is heated and injected into the mould cavity under controlled conditions. Injection pressure, temperature, packing, and cooling parameters are optimized to minimize warpage, sink marks, flash, and dimensional variation.

5. Finishing & Assembly Preparation

After moulding, the covers are trimmed and inspected for flash, gate vestige, sharp edges, and surface defects. Socket openings, hinge or retention features, and mounting interfaces are checked before the component is prepared for generator assembly.

6. Quality Inspection

Finished covers are checked for overall dimensions, socket clearance, plug-access opening, mounting-hole position, wall thickness, surface finish, and fitment with the generator panel. Trial assembly with the actual outlet socket and plug can be performed to verify clearance and usability.

Raw Materials

The final material should be selected according to operating temperature, outdoor exposure, impact requirements, electrical enclosure requirements, moisture exposure, and applicable safety specifications.

Quality Control

Renovator Appliances Ltd performs dimensional, visual, and functional fitment inspections for outlet socket covers. Key inspection points include:

• Socket opening dimensions

• Plug insertion and removal clearance

• Mounting-hole and clip position

• Hinge or retention feature alignment where applicable

• Wall thickness consistency

• Panel fitment

• Surface finish and edge condition

• Flash and moulding defect inspection

• Material and colour consistency

• Dimensional stability between production batches

The cover's electrical insulation, creepage, clearance, ingress protection, and other safety characteristics should be validated as part of the complete outlet socket and generator enclosure assembly.

Buyer Guide

When sourcing Generator Plastic Outlet Socket Cover Mould and Moulding Service, buyers should provide the socket model or dimensions, socket face profile, plug configuration, panel thickness, mounting arrangement, required cover type, plug-access clearance, environmental conditions, material requirements, and production quantity.

For outdoor generators, the cover design should be evaluated with the complete socket assembly to determine the required protection against dust and moisture. If a hinged cover is used, its opening angle, retention, repeated operating cycles, and clearance from the plug and cable should also be considered.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Controlled injection moulding processes support consistent production of generator outlet socket covers with accurate openings and mounting geometry.

In-House Mould Manufacturing

In-house tooling capabilities allow the mould to be developed around the actual outlet socket, plug clearance, panel, and enclosure arrangement.

OEM & ODM Manufacturing

Custom moulds and outlet socket covers can be developed from OEM drawings, CAD models, physical samples, or generator control-panel specifications.

Quality Assurance

Dimensional inspection, visual checks, trial assembly, and production monitoring help maintain consistent socket cover quality.

Cost-Effective Manufacturing

Optimized mould design and repeatable injection moulding processes support efficient production for development, replacement, and high-volume OEM requirements.

Frequently Asked Questions

1. What is a Generator Plastic Outlet Socket Cover used for?

It protects the generator's electrical outlet socket area from accidental contact, dust, moisture, and mechanical interference while allowing the required access for plug connection.

2. Can the outlet socket cover be customized for a specific socket?

Yes. The cover can be designed according to the socket dimensions, face profile, mounting arrangement, plug configuration, and generator panel geometry.

3. Can the cover be manufactured with a hinged design?

Yes. A hinged, removable, snap-fit, or other retention arrangement can be incorporated according to the socket assembly and required operating access.

4. Which plastic material is suitable for an outlet socket cover?

ABS, PC+ABS, flame-retardant grades, Nylon/PA, and other suitable engineering plastics may be considered depending on electrical, mechanical, thermal, and environmental requirements.

5. Can Renovator Appliances Ltd manufacture both the mould and the outlet socket covers?

Yes. The service can include mould design and manufacturing followed by injection moulding of Generator Plastic Outlet Socket Cover components according to the required OEM specifications.
