Product Overview

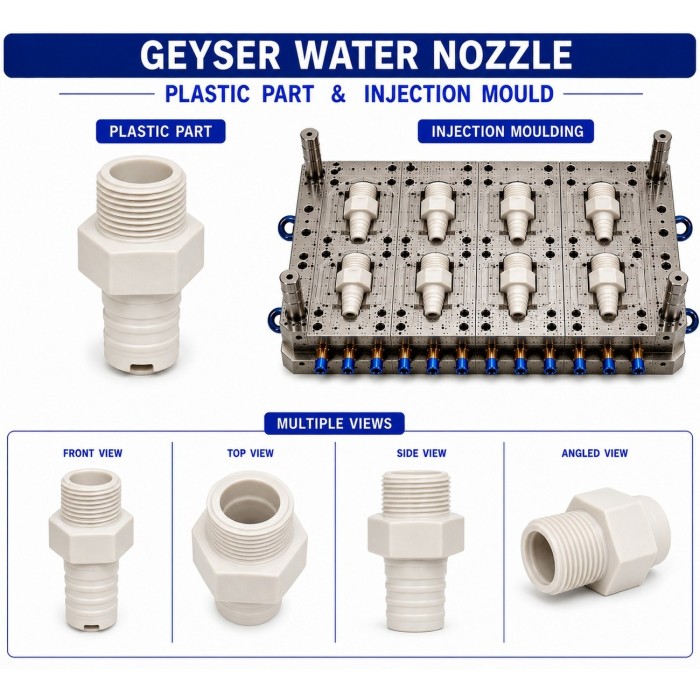

Geyser Plastic Water Nozzle is a precision-moulded plastic component used in the water-flow system of electric geysers and water heaters. It provides a defined passage and connection point for water entering, exiting, or being distributed within the geyser assembly. The nozzle geometry is designed according to the required water-flow direction, pipe connection, internal diameter, pressure conditions, and installation arrangement.

Renovator Appliances Ltd provides complete Geyser Plastic Water Nozzle Mould and Moulding Services, including product development, injection mould design, mould manufacturing, mould trial, plastic injection moulding, dimensional inspection, and bulk production. The nozzle can be manufactured according to customer drawings, CAD models, existing samples, or specific geyser assembly requirements.

Key Features

The Geyser Plastic Water Nozzle is designed with an accurately formed internal water passage to maintain the required connection and flow path within the geyser. Its inlet and outlet portions can be customized according to the pipe or hose connection used in the appliance. Depending on the design, the nozzle can include threaded sections, push-fit connections, locking features, mounting flanges, ribs, or sealing surfaces.

The component is lightweight compared with metal alternatives and can be produced with consistent dimensions through injection moulding. Material selection can also be made according to the required temperature resistance, water-contact conditions, pressure resistance, and mechanical strength.

Industrial Applications

The Geyser Plastic Water Nozzle is primarily used in the water-flow system of electric storage geysers and water heaters. It can function as a water inlet connection, outlet connection, internal water-distribution nozzle, or connecting interface between different water-flow components, depending on the appliance design.

It is suitable for domestic geysers, residential water heaters, commercial water-heating equipment, OEM geyser assemblies, and customized water-heater systems. The exact nozzle design changes according to the geyser's water-flow architecture, pipe size, connection method, and installation position.

Manufacturing Process

The Geyser Plastic Water Nozzle is manufactured through plastic injection moulding. First, the product design is developed according to the required inlet/outlet dimensions, internal water passage, connection arrangement, wall thickness, and assembly requirements.

The selected plastic material is then dried or prepared according to its processing requirements and fed into the injection moulding machine. The material is heated until it becomes molten and is injected into the precision mould cavity. The mould cavity forms the outer profile and the core or insert forms the internal water passage.

After filling, holding pressure is applied to maintain the nozzle's dimensional accuracy. The component is then cooled inside the mould before being ejected. After ejection, the nozzle is inspected for flash, dimensional variation, internal passage defects, warpage, cracks, and connection accuracy.

Mould Manufacturing Process

The Geyser Plastic Water Nozzle Mould is manufactured according to the nozzle's external profile, internal water passage, connection geometry, production quantity, and required mould life.

The mould design includes the cavity, core, internal passage-forming core/insert, parting line, gating system, cooling channels, and ejection mechanism. Because the nozzle contains an internal water passage, accurate core and insert design is particularly important for maintaining the required internal diameter and flow path.

After mould design approval, the mould components are manufactured using CNC machining, EDM, drilling, grinding, and precision finishing. The mould is then assembled and trial production is carried out. During mould trials, the internal passage, inlet/outlet dimensions, connection fitment, cooling, ejection, surface finish, and overall dimensions are checked before final production approval.

Raw Materials

The raw material for a Geyser Plastic Water Nozzle must be selected according to its actual water-flow application. Since the component may come into contact with heated water, the material should have suitable temperature resistance, dimensional stability, mechanical strength, water-contact compatibility, and chemical resistance.

Depending on the design and technical requirements, materials such as PP, HDPE, PBT, PA, or POM may be considered. For applications involving higher temperature or mechanical requirements, an appropriate engineering-grade thermoplastic can be selected.

The final material should always be finalized according to the nozzle's operating temperature, pressure, water-contact requirements, connection design, and customer specification rather than selecting a material only on the basis of cost.

Quality Control

Quality control for the Geyser Plastic Water Nozzle focuses particularly on the dimensions and integrity of the water-flow path because incorrect dimensions can affect connection fitment or water flow.

During inspection, the overall length, outer diameter, inner passage diameter, inlet/outlet dimensions, wall thickness, thread or connection dimensions, mounting features, and sealing surfaces can be checked according to the approved drawing.

The moulded part is also inspected for flash, short shots, sink marks, warpage, cracks, surface defects, and deformation. Where required by the customer's specification, the finished nozzle can undergo water-flow, leakage, pressure, or assembly-fitment testing to verify its suitability for the intended geyser application.

Production Capacity

The production capacity of the Geyser Plastic Water Nozzle depends on its product weight, mould cavity configuration, injection moulding machine capacity, material, mould design, and cycle time.

For example, if a single-cavity mould has a 20-second cycle, its theoretical production rate is approximately 180 pieces per hour. Actual production will be lower depending on machine utilization, material handling, inspection, mould maintenance, and production downtime.

For higher-volume requirements, a multi-cavity mould can be considered where the nozzle design and production economics permit it. The final production capacity should be calculated after reviewing the actual product weight, dimensions, cycle time, cavity count, and required monthly quantity.

Buyer Guide

Before developing a Geyser Plastic Water Nozzle Mould and Moulding Service, the buyer should provide the nozzle's 2D drawing, 3D CAD model, or existing sample. Important technical information includes inlet and outlet diameter, internal water-passage diameter, connection type, thread specification if applicable, operating temperature, working pressure, water-flow requirement, and mounting arrangement.

The buyer should also specify the required plastic grade, product colour, surface finish, dimensional tolerances, expected product weight, monthly production quantity, and any required leakage or pressure testing.

Providing these details allows the mould to be designed according to the actual geyser assembly instead of using generic dimensions, resulting in better product fitment and production consistency.

Why Choose Renovator?

Renovator Appliances Ltd provides an integrated solution for manufacturing customized plastic components used in geysers and other home appliances. For the Geyser Plastic Water Nozzle, the service can cover the complete process from product design and mould development to injection moulding and finished-part inspection.

The mould can be developed according to customer drawings, samples, CAD models, production volumes, and technical requirements. This integrated approach helps maintain consistency between the product design, mould geometry, plastic material, injection moulding process, and final component dimensions.

Renovator can also support OEM and customized production requirements where the customer needs specific water connections, dimensions, materials, colours, surface finishes, or production quantities.

Frequently Asked Questions (FAQ)

1. What is a Geyser Plastic Water Nozzle?

A Geyser Plastic Water Nozzle is an injection-moulded plastic component that provides a defined water-flow passage or connection within a geyser's water-flow system. Its exact function may be as an inlet, outlet, internal distribution, or connecting nozzle depending on the geyser design.

2. Which plastic material is suitable for a Geyser Water Nozzle?

The suitable material depends on the nozzle's temperature, pressure, water-contact conditions, mechanical requirements, and connection design. PP, HDPE, PBT, PA, and POM may be considered for different applications, subject to technical suitability.

3. Can the nozzle be manufactured according to an existing sample?

Yes. An existing nozzle sample can be used as a reference for developing the CAD model, mould design, dimensions, internal water passage, and injection-moulded replacement component, subject to measurement and design verification.

4. Can the Water Nozzle mould be customized?

Yes. The mould can be customized according to the required inlet/outlet dimensions, internal passage, threads, mounting features, wall thickness, product geometry, cavity count, and production quantity.

5. Can Renovator provide both the mould and finished plastic nozzles?

Yes. Renovator can provide the complete mould manufacturing and plastic injection moulding service, allowing customers to source both the production mould and finished Geyser Plastic Water Nozzle from the same manufacturing solution.
