Hair Treatment Steamer Plastic Bottom Cover Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

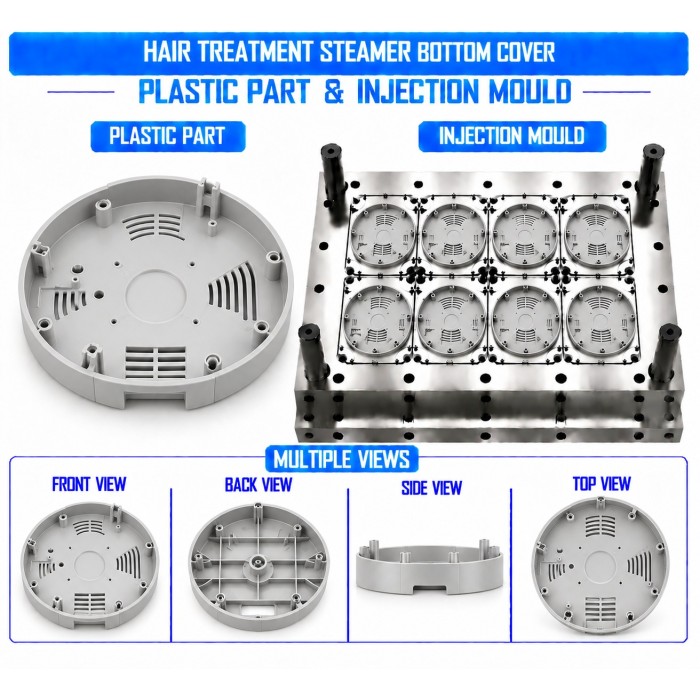

Renovator Appliances Ltd manufactures precision Plastic Injection Moulds and provides injection moulding solutions for Hair Treatment Steamer Plastic Bottom Cover components used in professional salon, hair spa, and beauty treatment equipment. The bottom cover forms the lower enclosure of the steamer and supports the overall housing structure while protecting internal electrical, heating, wiring, airflow, and mechanical components.

The mould is developed according to the required bottom-cover geometry, housing dimensions, wall thickness, mounting arrangement, internal clearances, ventilation requirements, and connection with the upper and side housing sections. The Hair Treatment Steamer Plastic Bottom Cover can be customized with mounting bosses, screw holes, clips, ribs, feet locations, cable openings, ventilation provisions, and other assembly features according to OEM and ODM requirements.

Key Features

• Precision injection moulding for consistent Hair Treatment Steamer Plastic Bottom Cover production

• Accurate lower housing profile and dimensional control

• Controlled wall thickness for improved structural stability

• Proper alignment with top, front, back, and side housing panels

• Integrated screw bosses and mounting points

• Provision for clips and snap-fit features where required

• Reinforced mounting areas for improved assembly strength

• Internal ribs for additional rigidity

• Clearance for internal electrical and mechanical components

• Provision for cable routing and connector access where required

• Ventilation openings can be incorporated according to equipment requirements

• Provision for supporting feet or base mounting features

• Smooth and uniform external surface

• Customized colour, texture, and surface finish

• Suitable for prototype as well as high-volume production

• Supports OEM and ODM manufacturing requirements

Industrial Applications

Manufacturing Process

1. Product Design & Development

The Hair Treatment Steamer Plastic Bottom Cover is developed according to the customer's CAD drawing, 3D model, physical sample, or complete machine housing specifications. The design is reviewed for base profile, mating edges, mounting points, component clearance, cable routing, ventilation, supporting feet, and connection with adjoining housing parts.

2. Plastic Mould Design

The injection mould is designed according to the bottom-cover geometry and selected plastic material. Parting line, draft angles, gate location, runner system, cooling channels, ejection arrangement, shrinkage allowance, and cavity configuration are optimized for consistent filling and dimensional stability.

3. Mould Manufacturing

Mould components are manufactured using suitable mould steels such as P20 Steel, H13 Steel, or S136 Steel depending on production volume, material characteristics, mould-life requirements, and surface-finish requirements. CNC machining, EDM, drilling, grinding, polishing, and mould fitting are used to achieve accurate cavity geometry.

4. Injection Moulding

The selected plastic material is processed using controlled injection moulding parameters. Injection temperature, pressure, filling speed, holding pressure, cooling time, and cycle time are adjusted according to the plastic grade and bottom-cover design.

5. Finishing & Assembly Preparation

After moulding, each bottom cover is inspected and prepared for assembly. Gate marks, flash, and unwanted edges are removed where required. Mounting bosses, screw holes, clips, ribs, feet locations, cable openings, ventilation openings, and mating edges are checked for proper assembly with the complete steamer housing.

6. Quality Inspection

Finished Hair Treatment Steamer Plastic Bottom Cover components are checked for dimensional accuracy, wall thickness, profile, warpage, mounting alignment, surface finish, and housing fitment. Trial assembly can be performed to confirm alignment with the upper, side, front, and rear housing components.

Raw Materials

The final plastic grade is selected according to the operating temperature, structural load, electrical safety requirements, impact resistance, surface appearance, and customer specifications.

Quality Control

Renovator Appliances Ltd performs quality checks during mould development, trial production, and regular injection moulding. Inspection can include:

• Plastic material and grade verification

• Mould cavity dimensional inspection

• Bottom-cover length, width, height, and profile checking

• Wall-thickness consistency

• Mating-edge accuracy

• Screw-boss and mounting-hole position

• Clip and snap-fit accuracy

• Internal rib dimensions

• Supporting foot and base mounting position

• Ventilation-opening dimensions where applicable

• Cable and connector clearance

• Internal component clearance

• Warpage and deformation inspection

• Sink-mark and short-shot inspection

• Flash inspection

• Surface finish and texture inspection

• Colour consistency

• Trial assembly with adjoining housing parts

• Batch-to-batch dimensional consistency

Buyer Guide

When ordering a Hair Treatment Steamer Plastic Bottom Cover Mould and Moulding Service, buyers should provide a CAD drawing, 3D model, physical sample, or complete housing specifications where available. Important requirements include:

• Required bottom-cover dimensions and profile

• Complete housing or mating-component details

• Mounting boss and screw-hole locations

• Clip or snap-fit requirements

• Internal rib requirements

• Supporting feet or base mounting requirements

• Ventilation-opening requirements

• Cable and connector clearance

• Required wall thickness

• Plastic material and grade

• Colour and surface texture

• Surface finish requirements

• Expected production quantity

• Required mould life

• Prototype or mass-production requirements

• OEM or ODM assembly requirements

For a bottom cover carrying internal mounting loads, the mould and component design should provide appropriate reinforcement around bosses, mounting points, and load-bearing areas while maintaining suitable wall thickness and cooling.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Renovator Appliances Ltd provides controlled plastic injection moulding for precision housing components with consistent dimensions and repeatable production quality.

In-House Mould Manufacturing

In-house mould manufacturing provides better control over cavity geometry, cooling, ejection, mould fitting, and surface-finish requirements.

OEM & ODM Manufacturing

Customized Hair Treatment Steamer Plastic Bottom Cover moulds and moulded parts can be developed according to customer drawings, samples, machine designs, and assembly requirements.

Quality Assurance

Dimensional, visual, material, and assembly-related inspections help ensure that the moulded bottom cover meets the required product specifications.

Cost-Effective Manufacturing

Integrated mould manufacturing and injection moulding services support efficient production for prototype development as well as regular commercial quantities.

Frequently Asked Questions

1. What is a Hair Treatment Steamer Plastic Bottom Cover?

A Hair Treatment Steamer Plastic Bottom Cover is the lower plastic housing component that protects internal parts and provides the base structure of the hair treatment steamer.

2. Which plastic materials can be used for the bottom cover?

ABS, PP, HIPS, PC+ABS, PC, flame-retardant ABS, and other suitable engineering plastics can be considered according to the required strength, heat resistance, structural requirements, electrical safety, and appearance.

3. Can mounting bosses and supporting feet be integrated into the bottom cover?

Yes. Screw bosses, mounting points, locating features, clips, snap-fits, reinforcing ribs, and supporting-foot provisions can be incorporated directly into the injection-moulded bottom cover according to the machine assembly design.

4. Can ventilation and cable openings be included in the mould?

Yes. Ventilation openings, cable routing provisions, connector clearances, and other required openings can be incorporated according to the internal component arrangement and equipment design.

5. Can Renovator manufacture both the mould and plastic bottom cover?

Yes. Renovator Appliances Ltd can provide mould manufacturing and injection moulding solutions for Hair Treatment Steamer Plastic Bottom Cover production, supporting customized OEM and ODM requirements
