Product Overview

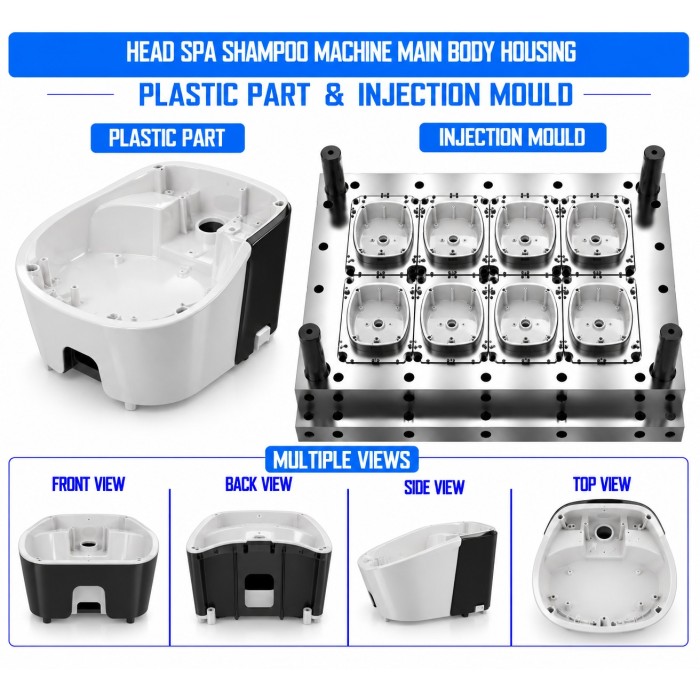

Head Spa Shampoo Machine Plastic Main Body Housing is the primary plastic enclosure used in head spa and professional scalp treatment machines. It forms the main structural and external body of the machine and is designed to accommodate and protect important internal components such as the shampoo or water tank, water circulation system, pump, pipes, electrical wiring, control components, drainage connections and supporting assemblies.

Renovator Appliances Ltd. provides customized Head Spa Shampoo Machine Plastic Main Body Housing Mould and Moulding Services for manufacturers, OEMs and equipment brands requiring accurately moulded housings for different machine configurations. The housing can be developed according to the machine's overall dimensions, internal component arrangement, water-flow path, drainage layout, pipe routing, electrical interfaces, mounting requirements and external design.

The injection moulded housing can incorporate mounting bosses, ribs, supports, clips, slots, cable-routing provisions, pipe passages, ventilation openings and assembly interfaces wherever required by the machine design. Proper wall thickness, draft angles and reinforcement features are considered during mould development to support dimensional stability, strength and reliable assembly.

The mould and moulding process can be customized according to production volume, plastic grade, surface finish, colour requirements, dimensional tolerances and expected service conditions.

Key Features

• Precision-engineered main body housing for head spa shampoo machines

• Designed according to specific machine dimensions and internal component layout

• Suitable for professional salon, spa and scalp-treatment equipment

• Supports integration of water tanks, pumps, pipes, drainage and electrical components

• Customized mounting bosses, ribs, brackets, clips, tabs and fastening points

• Provision for water inlet, outlet, drainage and internal pipe routing where required

• Cable-routing and electrical component clearance features

• Controlled wall thickness for improved moulding consistency

• Reinforced structural areas around mounting and fastening points

• Smooth and consistent external surface finish

• Customized colour, texture and appearance options

• Suitable material selection according to strength, impact, heat and chemical exposure requirements

• Accurate dimensional interfaces for mating plastic and non-plastic components

• Injection moulding suitable for repeat production

• OEM and ODM manufacturing support

• Prototype-to-production development support

• Consistent part-to-part dimensional quality

Industrial Applications

Manufacturing Process

1. Product Design & Development

The manufacturing process starts with the development of the Head Spa Shampoo Machine Plastic Main Body Housing according to the customer's 2D drawings, 3D CAD model, sample or machine design. Overall dimensions, internal component arrangement, water tank position, pump location, pipe routing, drainage connections, electrical components and assembly clearances are reviewed.

Mounting bosses, ribs, support structures, clips, fastening points, cable passages, pipe openings and mating interfaces are incorporated according to the machine's requirements. Wall thickness, draft angles, corner radii and reinforcement areas are also considered to reduce moulding-related defects and improve component stability.

2. Plastic Mould Design

A dedicated injection mould is designed according to the geometry of the main body housing. Cavity and core construction, parting line, gate location, runner system, cooling channels, venting and ejection arrangement are determined according to the component design.

Special attention is given to deep sections, ribs, bosses, mounting features, pipe openings, cable passages and other functional details so that the finished housing can be ejected smoothly while maintaining the required dimensional accuracy.

3. Mould Manufacturing

The mould is manufactured using suitable mould steel such as P20 Steel, H13 Steel or S136 Steel, depending on production volume, required mould life, dimensional requirements and surface-finish expectations.

CNC machining, EDM machining, drilling, grinding, polishing and other precision mould-making operations are performed according to the approved mould design. Proper alignment of cavity and core components is maintained to achieve consistent part geometry.

4. Injection Moulding

The selected plastic material is dried or conditioned where required and processed in an injection moulding machine. The material is heated to the required processing temperature and injected into the mould cavity under controlled pressure.

Injection pressure, temperature, holding pressure, cooling time, screw speed and cycle time are controlled to achieve consistent filling, proper packing and dimensional stability. Cooling is maintained uniformly to reduce warpage and deformation in the large housing structure.

5. Finishing & Assembly Preparation

After moulding, each main body housing is inspected and prepared for assembly. Gate marks, flash and other moulding residues are removed where required.

The component is checked for short shots, sink marks, weld-line issues, warpage, scratches, cracks, deformation and surface defects. Mounting bosses, pipe openings, drainage interfaces, cable passages, clips and other assembly features are checked for proper formation.

6. Quality Inspection

The finished housing undergoes dimensional and visual inspection according to the approved specifications. Critical dimensions, mounting locations, wall thickness, pipe interfaces, drainage openings and mating areas are verified.

The housing is also checked for fitment with internal components and corresponding machine parts. Functional assembly checks can be performed to verify proper alignment of tanks, pumps, piping, control components and other assemblies.

Raw Materials

Material selection should be finalized according to the actual operating temperature, water or chemical exposure, structural requirements, electrical environment, appearance and applicable product standards.

Quality Control

Raw Material Inspection

Plastic raw material is checked according to the selected grade and required processing characteristics before production.

Mould Inspection

Mould cavity, core, parting surfaces, cooling system, ejection system and critical mould features are inspected before production.

Dimensional Inspection

Critical housing dimensions, mounting points, openings, bosses, ribs and mating interfaces are checked against approved drawings or CAD specifications.

Visual Inspection

Parts are inspected for flash, short shots, sink marks, weld lines, scratches, burn marks, cracks and other visible defects.

Wall Thickness Inspection

Critical areas of the housing are checked for excessive variation that could affect strength, appearance or dimensional stability.

Mounting Feature Inspection

Bosses, screw locations, clips, tabs and fastening structures are checked for proper formation and assembly compatibility.

Water & Pipe Interface Inspection

Where applicable, water inlet, outlet, drainage openings and pipe-routing interfaces are inspected for correct positioning and fitment.

Assembly Inspection

The housing is tested with corresponding internal and external components to verify proper alignment and assembly.

Packaging Inspection

Finished housings are packed using suitable protective packaging to reduce scratches, deformation and handling damage during transportation.

Buyer Guide

Before ordering Head Spa Shampoo Machine Plastic Main Body Housing Mould and Moulding Services, buyers should provide the available product information, including:

• 2D engineering drawing or 3D CAD model

• Overall housing dimensions

• Machine assembly drawing

• Internal component layout

• Water tank and pump arrangement

• Water inlet and outlet locations

• Drainage requirements

• Pipe and hose routing

• Electrical component positions

• Cable-routing requirements

• Mounting bosses and screw locations

• Required ribs, clips, tabs and supports

• Mating component details

• Required plastic material and grade

• Colour and surface texture requirements

• Expected production quantity

• Required mould life

• Prototype or sample requirements

• Applicable dimensional tolerances

Providing complete technical information helps in developing the mould and housing according to the actual machine assembly.

Why Choose Renovator Appliances Ltd.?

Advanced Injection Moulding Facility

Renovator Appliances Ltd. provides injection moulding solutions for complex plastic housings and functional components used in professional equipment and appliances.

In-House Mould Manufacturing

Dedicated mould development and manufacturing support helps maintain better control over cavity geometry, dimensional accuracy, cooling, ejection and overall mould performance.

OEM & ODM Manufacturing

Customized production is available according to customer drawings, samples, CAD models, branding requirements and machine-specific specifications.

Quality Assurance

Inspection is carried out across mould manufacturing, plastic injection moulding, finishing and final component checking to maintain consistent production quality.

Cost-Effective Manufacturing

Mould and moulding solutions can be planned according to production quantity, material requirements, mould life and component complexity to support economical mass production.

Frequently Asked Questions

1. What is a Head Spa Shampoo Machine Plastic Main Body Housing?

It is the primary plastic external enclosure and structural body of a head spa shampoo machine. It provides space and protection for components such as water tanks, pumps, piping, drainage systems, wiring and controls.

2. Can the main body housing be customized according to our machine design?

Yes. The housing can be developed according to customer-provided drawings, CAD models, samples, dimensions, internal layouts, mounting requirements and water or electrical interfaces.

3. Which plastic materials can be used for the main body housing?

Depending on the application, materials such as ABS, PP, HIPS, PC+ABS, PC, PBT, Nylon/PA, Glass-Filled Nylon and suitable flame-retardant grades can be considered.

4. Which mould steel is suitable for this product?

P20 Steel, H13 Steel and S136 Steel can be selected according to production quantity, mould life, dimensional requirements and surface-finish requirements.

5. Can Renovator Appliances manufacture both the mould and plastic housing?

Yes. Renovator Appliances Ltd. can support the mould manufacturing and injection moulding process for customized Head Spa Shampoo Machine Plastic Main Body Housing from product development through production.
