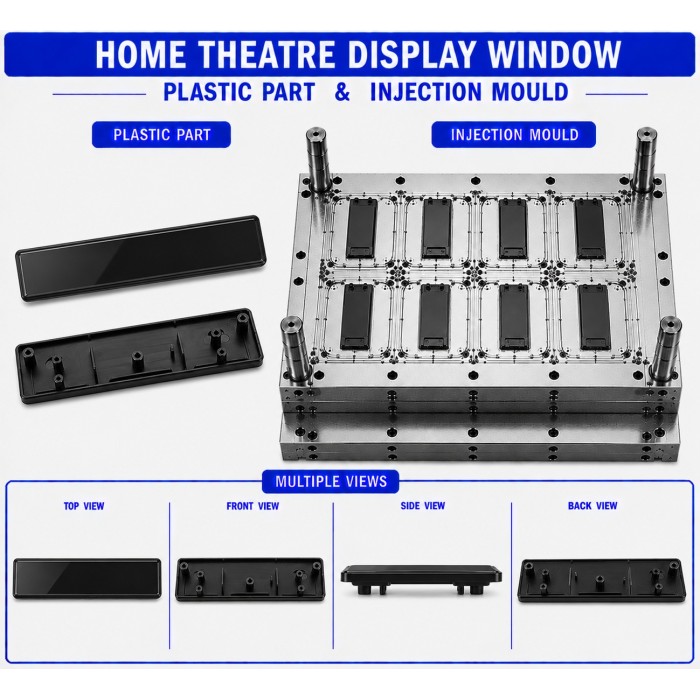

Home Theater Plastic Display Window Mould and Moulding Service

Product Overview

Home Theater Plastic Display Window Mould and Moulding Service is used for manufacturing precision plastic display windows designed for home theater systems. The display window provides a protective and visually integrated surface in front of the appliance's LED, LCD, segment, or other electronic display while maintaining clear visibility of the displayed information.

The display window can be manufactured according to specific display dimensions, viewing area, thickness, optical clarity, tint, light-transmission requirements, mounting arrangement, surface finish, material, colour, and home theater front-panel design using precision plastic injection moulding.

Key Features

• Precision-moulded plastic display window

• Designed for home theater display assemblies

• Clear and uniform display visibility

• Supports LED, LCD, and segment displays

• Customized transparent or tinted appearance

• Accurate display alignment

• Snap-fit or press-fit mounting options

• Smooth and high-quality surface finish

• Lightweight and durable construction

• Suitable for high-volume production

Industrial Applications

Home Theater Plastic Display Windows are used in:

• Home theater systems

• AV receivers

• Amplifiers

• Soundbars

• Audio systems

• Media players

• DVD and Blu-ray players

• Entertainment consoles

• Digital control panels

• Consumer electronic appliances

Manufacturing Process

The Home Theater Plastic Display Window is manufactured using the plastic injection moulding process. Selected plastic granules are fed into an injection moulding machine and heated to the required processing temperature.

The molten plastic is injected into a precision-engineered mould cavity containing the required display-window profile, optical surface, mounting features, and front-panel geometry. Controlled cooling allows the plastic to solidify into the required shape.

After cooling, the mould opens and the finished display window is ejected. The moulded component is inspected for overall dimensions, optical clarity, light transmission, display visibility, mounting accuracy, surface finish, flash, sink marks, scratches, and warpage.

Mould Manufacturing Process

The mould is designed according to the required product drawing or 3D CAD model. Particular attention is given to the display viewing area, optical surface, wall thickness, mounting features, snap-fits, draft angles, parting line, cooling channels, and ejection mechanism.

Suitable mould steel such as P20, H13, or S136 can be selected according to production volume, component complexity, mould life, and required surface finish.

Mould components are manufactured using CNC machining, EDM, precision drilling, grinding, polishing, and precision fitting. For transparent or high-gloss display windows, the cavity surface can be polished to achieve the required optical finish.

After mould assembly, trial moulding is performed to verify filling, cooling, ejection, dimensions, display visibility, light transmission, mounting fit, surface appearance, and assembly compatibility.

Raw Materials

Suitable materials may include:

• PC

• PMMA

• ABS

• PC/ABS

• PS

• HIPS

• Optical-grade polycarbonate

• Optical-grade acrylic

• Tinted transparent plastic grades

• Translucent plastic grades

• UV-resistant grades where required

Material selection depends on optical clarity, light transmission, impact resistance, dimensional stability, colour, surface appearance, and application requirements.

Quality Control

The Display Window can be inspected for:

• Overall dimensions

• Display viewing area

• Optical clarity

• Light transmission

• Tint consistency

• Window thickness

• Mounting dimensions

• Snap-fit accuracy

• Surface finish

• Gloss level

• Colour consistency

• Scratches and optical defects

• Flash and burrs

• Warpage

• Cracks and sink marks

• Display visibility

• Assembly compatibility

Production Capacity

Production capacity depends on mould cavity count, injection moulding machine capacity, product weight, cycle time, cooling time, plastic material, and machine operating efficiency.

For example, an 8-cavity mould operating with a 20-second cycle time can theoretically produce approximately 1,440 pieces per hour, before accounting for downtime, inspection, material changes, and other production losses.

Actual production capacity depends on the final display window design, mould configuration, machine specifications, material, and operating conditions.

Buyer Guide

When ordering a Home Theater Plastic Display Window Mould and Moulding Service, buyers should provide the product drawing or 3D CAD model, display dimensions, viewing area, display type, required transparency or tint, light-transmission requirements, mounting arrangement, surface finish, plastic material, colour, expected production quantity, and assembly specifications.

For illuminated displays, buyers should also specify the LED/LCD position, illumination intensity, viewing angle, light-diffusion requirements, and required visual uniformity.

These details help determine the appropriate mould design, mould steel, cavity configuration, plastic material, and injection moulding machine.

Why Choose Renovator Appliances Ltd.?

• Customized display window mould development

• Precision plastic injection moulding

• Optical-grade plastic options

• Accurate display viewing areas

• Customized transparent and tinted finishes

• High-gloss surface finishing

• Precise mounting and snap-fit features

• Consistent light transmission

• Single-cavity and multi-cavity mould solutions

• High-volume production support

Frequently Asked Questions (FAQ)

1. What is a Home Theater Plastic Display Window?

A Home Theater Plastic Display Window is a transparent, tinted, or translucent plastic component positioned in front of an electronic display to protect it while allowing information and indicators to remain visible.

2. Which plastic materials can be used for the display window?

Common materials include PC, PMMA, ABS, PC/ABS, PS, HIPS, and suitable optical-grade plastics. Material selection depends on transparency, light transmission, impact resistance, surface finish, and dimensional requirements.

3. Can the display window be customized?

Yes. It can be customized according to display dimensions, viewing area, thickness, transparency, tint, light transmission, mounting arrangement, viewing angle, colour, and surface finish.

4. Can tinted display windows be manufactured?

Yes. Tinted, transparent, translucent, and light-filtering display windows can be manufactured according to the required display visibility and optical appearance.

5. Does Renovator Appliances Ltd. provide both mould manufacturing and moulding services?

Yes. Renovator Appliances Ltd. provides customized plastic mould manufacturing and injection moulding services for Home Theater Plastic Display Windows according to customer drawings, 3D models, material specifications, and production requirements.
