Product Overview

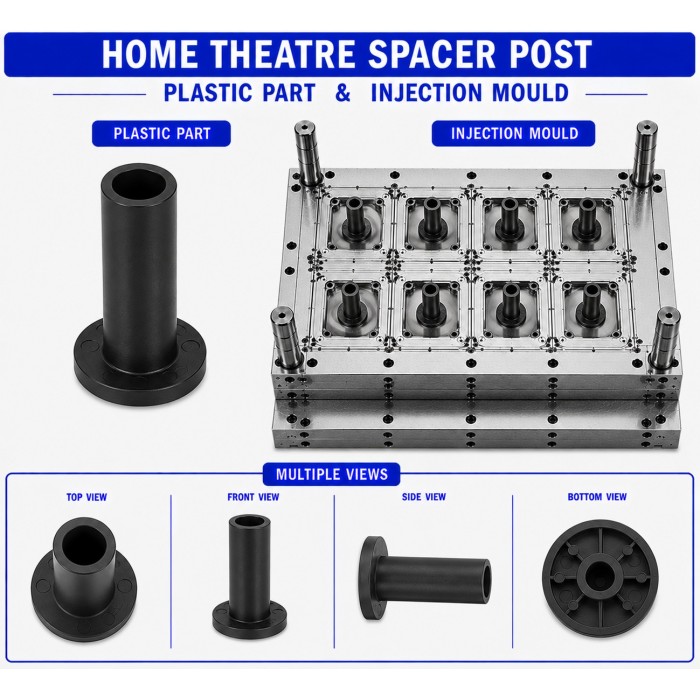

Home Theatre Plastic Spacer Post is a precision injection-moulded plastic component used as a spacing, positioning, and support element inside home theatre and audio-video equipment. It maintains a defined distance between two components, such as a PCB, amplifier board, speaker assembly, control panel, cabinet section, mounting plate, or other internal electronic parts.

The spacer post helps prevent direct contact between components and provides a controlled mounting height for screws, PCB supports, or other fastening arrangements. Its dimensions are selected according to the required height, outer diameter, screw-hole size, mounting position, and clearance between internal components.

Renovator Appliances Ltd provides complete Home Theatre Plastic Spacer Post Mould and Moulding Services, including product development, mould design, precision mould manufacturing, mould trials, plastic injection moulding, quality inspection, and bulk production.

Key Features

The Home Theatre Plastic Spacer Post is designed to provide consistent spacing and stable mechanical support inside the home theatre assembly. Its height determines the distance maintained between the mounted components, while the outer diameter and base geometry provide the required mechanical stability.

The spacer can be manufactured with a through-hole, blind hole, screw boss, locating pin, flange, or snap-fit feature depending on the assembly method. Different heights and diameters can be developed to accommodate PCB mounting, speaker mounting, amplifier assemblies, control panels, and cabinet structures.

The component is lightweight, dimensionally consistent, and suitable for repeated OEM production through precision injection moulding.

Industrial Applications

The Home Theatre Plastic Spacer Post is used wherever controlled spacing or mounting support is required inside home theatre and audio-video equipment.

It can be used in:

• Home Theatre Systems

• Speaker Assemblies

• Soundbar Assemblies

• Subwoofer Assemblies

• Amplifier Assemblies

• AV Receiver Assemblies

• PCB Mounting Systems

• Control Panel Assemblies

• Audio-Video Equipment Cabinets

• OEM Home Theatre Equipment

The exact design depends on the component being supported and the required distance between the PCB, electronic assembly, speaker, amplifier, cabinet, mounting plate, or control panel.

Manufacturing Process

The Home Theatre Plastic Spacer Post is manufactured using plastic injection moulding. The product design is first developed according to the required spacer height, outer diameter, hole diameter, mounting method, load requirements, and available installation space.

A suitable plastic material is selected according to the required mechanical strength, dimensional stability, temperature resistance, and assembly conditions. The material is processed in an injection moulding machine and injected into the precision mould cavity.

The cavity forms the external spacer profile while the core forms the internal hole or mounting feature. After filling and packing, the component is cooled and ejected from the mould.

The finished spacer post is then inspected for height, diameter, hole dimensions, flatness, flash, warpage, and assembly fitment.

Mould Manufacturing Process

The Home Theatre Plastic Spacer Post Mould is designed according to the spacer's external profile, internal hole, required cavity count, production volume, and injection moulding machine specifications.

The mould includes the required cavity, core pin, parting line, gating system, cooling arrangement, and ejection system. For a spacer with a central hole, the core pin must be accurately manufactured to maintain the required internal diameter.

After mould design approval, mould components are manufactured through CNC machining, EDM, drilling, grinding, and precision finishing. The mould is assembled and trialled with the selected plastic material.

Trial components are checked for spacer height, outer diameter, internal hole diameter, flash, warpage, ejection, surface finish, and actual assembly fitment. Tool corrections are completed where required before regular production.

Raw Materials

The material for a Home Theatre Plastic Spacer Post should provide adequate mechanical strength and dimensional stability because the component maintains a fixed distance between assembled parts.

Depending on the application, ABS, PP, PA/Nylon, POM, PBT, or PC-ABS can be considered. ABS and PC-ABS can be suitable for rigid electronic assemblies, while PA, POM, and PBT can be considered where higher mechanical strength, dimensional stability, or temperature resistance is required.

The final material should be selected according to the load on the spacer, screw tightening force, operating temperature, required dimensional tolerance, vibration conditions, and customer specifications.

Quality Control

Quality control for the Home Theatre Plastic Spacer Post focuses on dimensional accuracy because even a small variation in spacer height can affect the alignment and mounting of internal components.

The finished component can be checked for overall height, outer diameter, inner-hole diameter, hole depth, flange diameter, base thickness, flatness, and mounting dimensions according to the approved drawing.

The moulded spacer is also inspected for flash, burrs, sink marks, short shots, cracks, warpage, deformation, and surface defects. Assembly testing can be performed using the actual screw, PCB, mounting plate, speaker assembly, or other component to verify proper fitment and spacing.

Production Capacity

Production capacity depends on product weight, mould cavity count, cycle time, plastic material, injection moulding machine capacity, and production efficiency.

Because a spacer post is generally a small injection-moulded component, multi-cavity tooling can be considered for high-volume production. For example, a 16-cavity mould operating at a 20-second cycle has a theoretical output of approximately 2,880 pieces per hour, before production losses and downtime.

Actual production capacity should be finalized according to the actual spacer dimensions, product weight, cavity count, cycle time, machine capacity, and required monthly production quantity.

Buyer Guide

Before ordering a Home Theatre Plastic Spacer Post Mould and Moulding Service, the buyer should provide a 2D drawing, 3D CAD model, or sample of the required spacer.

Important details include spacer height, outer diameter, internal hole diameter, hole depth, screw size, flange dimensions, mounting method, required load, operating temperature, vibration conditions, plastic grade, colour, surface finish, dimensional tolerances, and production quantity.

If the spacer is being used for PCB mounting, the buyer should also provide the PCB hole diameter, screw specification, PCB thickness, and required clearance from the cabinet or mounting plate.

Why Choose Renovator?

Renovator Appliances Ltd provides an integrated solution for customized plastic components used in home theatre, speaker, soundbar, amplifier, and other electronic equipment.

For the Home Theatre Plastic Spacer Post, our service can cover the complete process from product development and mould design to mould manufacturing, injection moulding, quality inspection, and bulk production.

The spacer can be developed according to the customer's actual assembly requirements, including specific height, diameter, hole size, screw compatibility, mounting position, material, colour, and production quantity.

This integrated approach helps maintain consistency between the spacer dimensions, mould design, plastic material, fastening hardware, and final home theatre assembly.

Frequently Asked Questions (FAQ)

1. What is a Home Theatre Plastic Spacer Post?

A Home Theatre Plastic Spacer Post is a plastic spacing and support component used to maintain a fixed distance between internal components such as PCBs, mounting plates, speaker assemblies, amplifiers, control panels, and cabinet sections.

2. What materials can be used for a Plastic Spacer Post?

Depending on the application, ABS, PP, PA/Nylon, POM, PBT, and PC-ABS can be used. Material selection depends on mechanical load, screw tightening force, temperature, vibration, and dimensional requirements.

3. Can the Spacer Post be customized?

Yes. The spacer can be customized according to height, outer diameter, inner-hole diameter, hole depth, flange size, screw size, mounting arrangement, colour, and surface finish.

4. Is a multi-cavity mould suitable for Spacer Post production?

Yes. Because spacer posts are generally small components, multi-cavity moulds can be suitable for high-volume production. The appropriate cavity count depends on the required quantity, component geometry, machine capacity, and production economics.

5. Can Renovator manufacture both the Spacer Post mould and finished components?

Yes. Renovator can provide complete mould manufacturing and plastic injection moulding services, including mould trials, dimensional inspection, assembly-fitment testing, and bulk production according to customer requirements.
