Product Overview

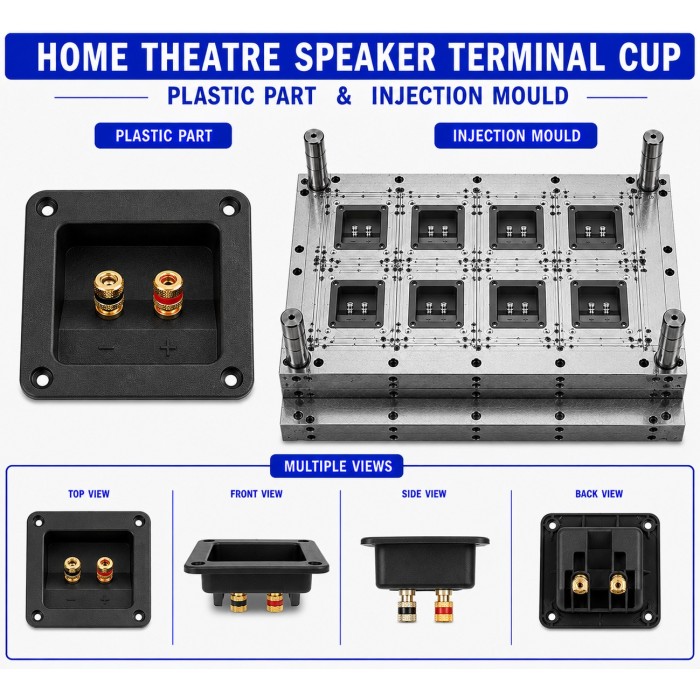

Home Theatre Plastic Speaker Terminal Cup is a precision injection-moulded plastic mounting and enclosure component installed on the rear or side of a speaker cabinet. It provides a defined housing for the speaker terminal connections, allowing speaker wires to be connected securely while keeping the terminals properly positioned within the speaker enclosure.

The terminal cup can be designed with terminal openings, mounting holes, screw bosses, locating features, cable-entry openings, sealing surfaces, and recessed sections according to the speaker cabinet and terminal hardware.

Renovator Appliances Ltd provides complete Home Theatre Plastic Speaker Terminal Cup Mould and Moulding Services, including product development, mould design, precision mould manufacturing, mould trials, plastic injection moulding, dimensional inspection, terminal fitment testing, and bulk production.

Key Features

The Home Theatre Plastic Speaker Terminal Cup provides a dedicated mounting interface for speaker terminals and helps maintain proper positioning of the connection hardware.

Its recessed cup design can provide clearance for terminal hardware and wire connections while keeping the terminal assembly integrated with the speaker cabinet.

The component can be customized with spring-terminal openings, binding-post openings, screw holes, cable passages, mounting bosses, snap-fit features, locating ribs, and sealing surfaces depending on the speaker design.

The cup can also be designed with sufficient wall thickness and reinforcement around the mounting points to withstand repeated wire connection and disconnection.

Industrial Applications

The Home Theatre Plastic Speaker Terminal Cup is used in speaker connection and cabinet assemblies for:

• Home Theatre Speaker Systems

• Surround Sound Speakers

• Bookshelf Speakers

• Satellite Speakers

• Floor-Standing Speakers

• Subwoofer Systems

• Multimedia Speaker Systems

• Soundbar Speaker Assemblies

• Professional Audio Equipment

• OEM Speaker Cabinets

Its exact design depends on the terminal type, speaker cabinet construction, number of terminals, mounting method, wire-entry arrangement, and available installation space.

Manufacturing Process

The Home Theatre Plastic Speaker Terminal Cup is manufactured through plastic injection moulding.

The product design is first developed according to the speaker terminal dimensions, terminal spacing, cabinet wall thickness, mounting arrangement, and required cable clearance.

The selected thermoplastic material is processed according to its specified moulding parameters and injected into the precision mould cavity. The mould forms the terminal cup body, recessed area, terminal openings, mounting holes, bosses, ribs, and cable-entry features.

After filling and packing, the component is cooled to achieve dimensional stability and then ejected from the mould.

The finished component is inspected for terminal-hole dimensions, mounting-hole position, cup depth, wall thickness, terminal fitment, flash, warpage, and surface quality.

Mould Manufacturing Process

The Home Theatre Plastic Speaker Terminal Cup Mould is designed according to the cup's external profile, internal recess, terminal openings, mounting features, production quantity, and required mould life.

The tooling incorporates the required cavity, core, parting line, gate system, cooling channels, and ejection mechanism.

The core is designed to accurately form the recessed terminal area and internal clearances. If the terminal cup contains undercut snap-fit features or complex side openings, slides, lifters, or mould inserts may be incorporated.

Mould components are manufactured using CNC machining, EDM, drilling, grinding, and precision finishing. After mould assembly, trial moulding is performed using the selected plastic material.

Trial components are checked for cup depth, terminal-hole dimensions, mounting-hole alignment, terminal fitment, cabinet fitment, flash, warpage, surface finish, and ejection performance before final production approval.

Raw Materials

The material for a Home Theatre Plastic Speaker Terminal Cup should provide good rigidity, dimensional stability, impact resistance, and resistance to repeated mechanical handling.

Depending on the application, ABS, HIPS, PP, PC-ABS, or PBT can be considered.

ABS and HIPS are suitable options where rigidity and surface appearance are important. PP can be considered for lightweight and impact-resistant designs, while PC-ABS or PBT can be considered where higher mechanical and temperature performance is required.

The final material should be selected according to the terminal hardware, mounting force, cable connection frequency, operating temperature, vibration, cabinet design, dimensional tolerance, and customer requirements.

Quality Control

Quality control for the Home Theatre Plastic Speaker Terminal Cup focuses on accurate terminal positioning and secure fitment with the speaker cabinet.

The component can be checked for overall length, width, height, cup depth, terminal-opening diameter, terminal spacing, mounting-hole diameter, hole-to-hole distance, wall thickness, and cable-entry dimensions according to the approved drawing.

The moulded component is inspected for flash, short shots, sink marks, cracks, warpage, burrs, and surface defects.

Functional assembly testing can be performed by fitting the actual speaker terminals, screws, wires, and speaker cabinet to confirm proper alignment and sufficient clearance for wire connections.

Production Capacity

Production capacity depends on the product weight, mould cavity count, cycle time, plastic material, injection moulding machine capacity, mould design, and production efficiency.

For example, a 4-cavity mould operating at a 25-second cycle has a theoretical production capacity of approximately 576 pieces per hour before inspection, handling, downtime, mould maintenance, and other production losses.

For high-volume requirements, multi-cavity tooling can be considered where the terminal cup geometry and moulding process permit it.

Final production capacity should be determined according to the actual product weight, cavity count, cycle time, machine capacity, and required monthly production quantity.

Buyer Guide

Before ordering a Home Theatre Plastic Speaker Terminal Cup Mould and Moulding Service, the buyer should provide a 2D drawing, 3D CAD model, existing terminal cup sample, speaker cabinet sample, or speaker terminal assembly.

Important specifications include terminal type, number of terminals, terminal diameter, terminal spacing, cup depth, mounting-hole pattern, screw size, cabinet wall thickness, cable-entry requirements, plastic material, colour, surface finish, dimensional tolerances, and production quantity.

Providing the actual speaker terminal hardware and cabinet opening is recommended to ensure accurate fitment and clearance.

Why Choose Renovator?

Renovator Appliances Ltd provides an integrated manufacturing solution for customized plastic speaker components used in home theatre, soundbar, subwoofer, amplifier, and audio-video equipment.

For the Home Theatre Plastic Speaker Terminal Cup, our service can cover the complete process from product development and mould design to precision mould manufacturing, injection moulding, quality inspection, terminal fitment testing, and bulk production.

The terminal cup can be developed according to the customer's actual speaker assembly, including specific terminal type, hole pattern, cup depth, cable clearance, mounting features, material grade, colour, and production quantity.

This integrated approach helps maintain consistency between the terminal hardware, plastic cup, speaker cabinet, mould, plastic material, and final speaker assembly.

Frequently Asked Questions (FAQ)

1. What is a Home Theatre Plastic Speaker Terminal Cup?

A Home Theatre Plastic Speaker Terminal Cup is an injection-moulded plastic component used to house and position speaker terminal connections on a speaker cabinet.

2. Which plastic materials are suitable for a Speaker Terminal Cup?

Depending on the application, ABS, HIPS, PP, PC-ABS, or PBT can be considered. Material selection depends on rigidity, impact resistance, dimensional stability, temperature, and assembly requirements.

3. Can the Terminal Cup be customized according to the speaker terminal?

Yes. The terminal cup can be customized according to the terminal type, terminal diameter, terminal spacing, cup depth, mounting holes, cable-entry openings, and speaker cabinet dimensions.

4. Can the Terminal Cup accommodate different terminal types?

Yes. The mould design can be developed for different terminal arrangements, including spring terminals, binding posts, screw terminals, or other customer-specified speaker connection hardware.

5. Can Renovator manufacture both the Terminal Cup mould and finished components?

Yes. Renovator can provide complete mould manufacturing and plastic injection moulding services, including mould trials, dimensional inspection, terminal fitment testing, cabinet assembly testing, and bulk production according to customer requirements.
