Home Theatre Plastic Wall Mount Plate Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

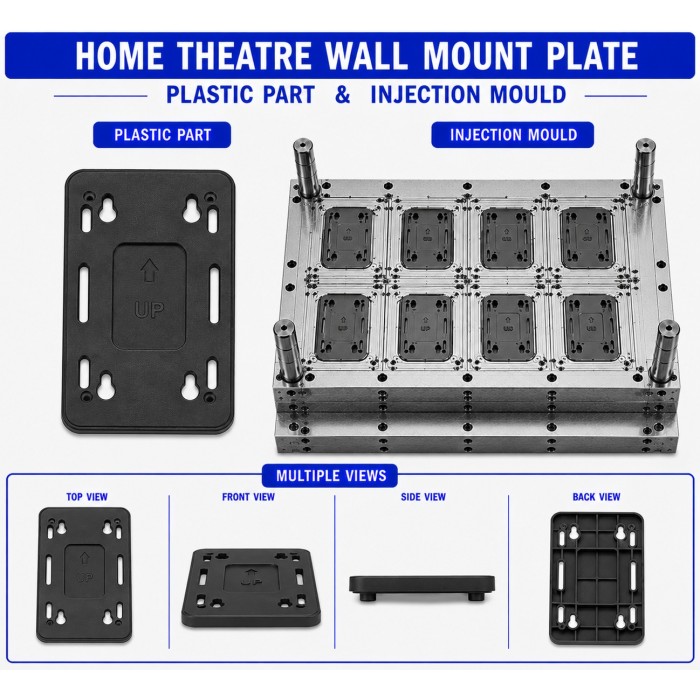

Home Theatre Plastic Wall Mount Plate is a precision injection-moulded plastic mounting component designed to provide a stable interface between a home theatre speaker, soundbar, or other audio equipment and a wall-mounted support system. The plate distributes the mounting load across its mounting area and provides defined fixing and locating points for secure installation.

The wall mount plate can be developed with screw holes, mounting slots, locating ribs, locking features, cable-routing openings, alignment guides, and reinforcement ribs according to the equipment's mounting arrangement.

Renovator Appliances Ltd provides complete Home Theatre Plastic Wall Mount Plate Mould and Moulding Services, including product design support, mould design, precision mould manufacturing, mould trials, plastic injection moulding, dimensional inspection, assembly-fitment testing, and bulk production.

Key Features

The Home Theatre Plastic Wall Mount Plate is designed to provide a defined mounting surface for compatible home theatre equipment. Its mounting-hole pattern and slot arrangement can be customized according to the wall bracket, speaker housing, or soundbar mounting system.

The plate can include elongated adjustment slots for installation alignment, locating features for positioning, locking features for connecting with a mating bracket, and reinforcement ribs to improve stiffness.

Cable-routing openings can also be incorporated where the audio equipment requires cables to pass through or behind the mounting plate. The design can be optimized to maintain adequate clearance between the equipment, mounting hardware, and wall surface.

Industrial Applications

The Home Theatre Plastic Wall Mount Plate is used in mounting assemblies for audio and entertainment equipment.

It can be used for:

• Home Theatre Speaker Mounting

• Soundbar Wall Mounting

• Surround Speaker Systems

• Satellite Speaker Assemblies

• Rear Speaker Mounting Systems

• Audio Equipment Wall Mounts

• Home Audio-Video Equipment

• Speaker Housing Assemblies

• OEM Home Theatre Products

• Customized Audio Equipment Mounting Systems

The actual design depends on the equipment weight, wall-mounting arrangement, screw pattern, mating bracket, installation orientation, and required load capacity.

Manufacturing Process

The Home Theatre Plastic Wall Mount Plate is manufactured using plastic injection moulding. Product geometry is first developed according to the required mounting pattern, equipment dimensions, fixing method, and load requirements.

The selected thermoplastic material is dried or prepared according to its processing requirements and fed into the injection moulding machine. The material is heated and injected into the precision mould cavity.

The mould forms the plate profile, mounting holes or slots, reinforcement ribs, locating features, cable openings, and locking elements. Holding pressure is maintained after filling to control shrinkage and improve dimensional consistency.

The moulded component is cooled and ejected. It is then inspected for mounting-hole accuracy, flatness, warpage, plate thickness, surface quality, and equipment fitment.

Mould Manufacturing Process

The Home Theatre Plastic Wall Mount Plate Mould is designed according to the plate's overall dimensions, mounting-hole arrangement, reinforcement ribs, slots, openings, production quantity, and required mould life.

The tooling consists of the required cavity, core, parting line, gate system, cooling channels, and ejection system. The mould design is optimized to achieve uniform filling across the plate and minimize warpage.

If the plate contains complex slots, side openings, or undercut locking features, suitable mould inserts or slides can be incorporated.

After the mould design is finalized, tooling components are manufactured through CNC machining, EDM, drilling, grinding, and precision finishing. The mould is assembled and trialled with the selected plastic material.

Trial parts are inspected for flatness, dimensions, mounting-hole position, slot dimensions, rib formation, warpage, ejection, surface finish, and assembly fitment. Tool corrections are completed where required before production approval.

Raw Materials

The material for a Home Theatre Plastic Wall Mount Plate should provide sufficient rigidity, dimensional stability, and impact resistance for the intended mounting application.

Depending on the required load and design, materials such as ABS, PC-ABS, PP, PBT, PA/Nylon, or HIPS can be considered.

For rigid mounting applications, ABS, PC-ABS, PBT, or PA may be suitable depending on the required mechanical performance. PP can be considered for lightweight applications where its flexibility and impact resistance are beneficial.

Material selection should be finalized according to the equipment weight, mounting load, screw-tightening force, vibration, operating temperature, wall-mount configuration, dimensional tolerance, and customer specifications.

Quality Control

Quality control for the Home Theatre Plastic Wall Mount Plate focuses on dimensional accuracy, mounting alignment, flatness, and mechanical fitment.

The component can be checked for overall length, width, thickness, mounting-hole diameter, slot length, slot width, hole-to-hole distance, rib dimensions, locating features, and cable-opening dimensions according to the approved drawing.

Flatness and warpage are particularly important because deformation can affect the equipment's mounting alignment.

The finished plate is also inspected for flash, short shots, sink marks, cracks, burrs, surface defects, and deformation. Assembly testing can be performed using the actual speaker, soundbar, screws, or mating bracket to verify proper fitment.

Where specified, the mounting plate can also undergo load and fastening-strength testing according to the customer's technical requirements.

Production Capacity

Production capacity depends on the product weight, mould cavity count, injection moulding machine capacity, material, cycle time, mould design, and production efficiency.

For example, a 2-cavity mould operating with a 30-second cycle has a theoretical production capacity of approximately 240 pieces per hour before inspection, handling, downtime, and mould maintenance losses.

For higher production volumes, multi-cavity tooling may be considered if the plate's dimensions, filling characteristics, mould size, and machine capacity allow it.

The final production capacity should be calculated from the actual product weight, cavity count, cycle time, machine capacity, and required monthly quantity.

Buyer Guide

Before ordering a Home Theatre Plastic Wall Mount Plate Mould and Moulding Service, the buyer should provide a 2D drawing, 3D CAD model, or physical sample.

Important information includes equipment weight, mounting-hole pattern, hole diameter, slot dimensions, mounting orientation, mating bracket dimensions, screw specification, required load capacity, cable-routing requirements, plastic grade, colour, surface finish, dimensional tolerances, and expected production quantity.

For a new design, providing the actual speaker or soundbar housing and wall-mount bracket can help ensure that the plate is developed with correct alignment and clearance.

Why Choose Renovator?

Renovator Appliances Ltd provides an integrated manufacturing solution for customized plastic mounting components used in home theatre, speaker, soundbar, subwoofer, amplifier, and audio-video equipment.

For the Home Theatre Plastic Wall Mount Plate, our service can cover the complete process from product development and mould design to precision mould manufacturing, injection moulding, quality inspection, assembly testing, and bulk production.

The wall mount plate can be developed according to the customer's actual equipment and mounting requirements, including specific hole patterns, slots, ribs, locating features, cable openings, material grades, colours, and production quantities.

This integrated approach helps maintain consistency between the mounting plate, wall bracket, audio equipment housing, mould, plastic material, and final installation assembly.

Frequently Asked Questions (FAQ)

1. What is a Home Theatre Plastic Wall Mount Plate?

A Home Theatre Plastic Wall Mount Plate is a moulded plastic mounting component used to provide a defined fixing and positioning interface between compatible home theatre equipment and a wall-mounting system.

2. Which plastic materials can be used for a Wall Mount Plate?

Depending on the required load and rigidity, ABS, PC-ABS, PP, PBT, PA/Nylon, or HIPS can be considered. The final material depends on equipment weight, mounting load, vibration, temperature, and dimensional requirements.

3. Can the Wall Mount Plate be customized?

Yes. The plate can be customized according to equipment dimensions, mounting-hole pattern, slot arrangement, screw size, cable openings, reinforcement ribs, locating features, colour, and surface finish.

4. Can the Wall Mount Plate support a heavy speaker?

The suitable design and material depend on the speaker weight, mounting arrangement, load distribution, fastening method, and required safety factor. The final component should be validated according to the customer's specified load requirements.

5. Can Renovator manufacture both the mould and finished Wall Mount Plates?

Yes. Renovator can provide complete mould manufacturing and plastic injection moulding services, including mould trials, dimensional inspection, assembly-fitment testing, and bulk production according to customer requirements.
