Inverter Plastic Front Bottom Grill Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

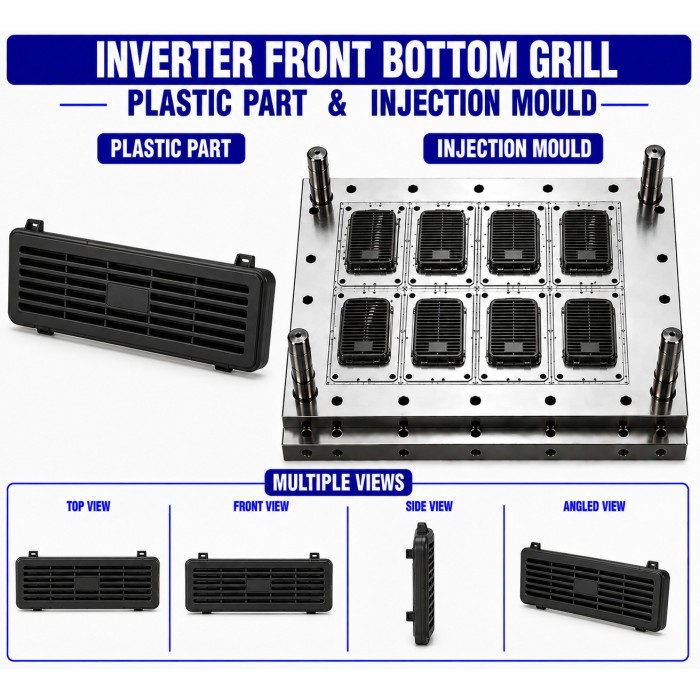

Renovator Appliances Ltd. provides Inverter Plastic Front Bottom Grill Mould and Moulding Service for manufacturing precision-moulded front bottom grill components used in inverter systems. The front bottom grill is generally integrated into the lower front section of the inverter enclosure and can provide ventilation, airflow passage, protective coverage, and a finished appearance.

The injection mould is developed according to the required grill geometry, ventilation openings, mounting arrangement, enclosure interface, and surface finish. Precision injection moulding enables consistent production of grill sections with uniform openings, accurate dimensions, clean edges, and reliable assembly fitment.

Key Features

• Precision-engineered mould for inverter front bottom grill production

• Suitable for OEM and customized inverter designs

• Accurate ventilation openings and grill geometry

• Consistent dimensions for proper enclosure integration

• Provision for mounting holes, clips, ribs, and locating features

• Suitable for different colours and surface textures

• Good dimensional repeatability for batch production

• Designed for efficient plastic injection moulding

• Supports customized grill patterns and configurations

• Material selection according to mechanical, thermal, airflow, and application requirements

Industrial Applications

Manufacturing Process

1. Product Design & Development

The front bottom grill is developed according to the inverter enclosure dimensions, required airflow openings, mounting arrangement, and external appearance. Grill spacing, wall thickness, ribs, clips, and assembly interfaces are reviewed during development.

2. Plastic Mould Design

The injection mould is designed with appropriate cavity and core geometry, parting line, gate location, cooling channels, venting, and ejection system. Special attention is given to the repeated grill openings and thin sections to achieve consistent mould filling and component quality.

3. Mould Manufacturing

Mould components are manufactured using suitable mould steel such as P20, H13, or S136 according to the required production volume and durability. CNC machining, EDM, drilling, polishing, fitting, and mould assembly are performed as required.

4. Injection Moulding

The selected plastic material is heated and injected into the mould cavity under controlled processing conditions. After sufficient cooling, the mould opens and the front bottom grill is ejected. Processing parameters are controlled to maintain dimensional and visual consistency.

5. Finishing & Assembly Preparation

Moulded parts are trimmed and inspected after ejection. Gates, runners, and minor excess material are removed where applicable. The grill can then be prepared for assembly with the inverter enclosure.

6. Quality Inspection

The finished front bottom grill is checked for dimensions, ventilation openings, mounting features, surface quality, deformation, and proper fitment with the corresponding inverter enclosure.

Raw Materials

The final material should be selected according to the inverter's operating temperature, airflow requirements, mechanical loading, electrical environment, chemical exposure, and applicable product specifications.

Quality Control

• Raw Material Inspection: Plastic grade, colour, and material condition are checked before production.

• Mould Inspection: Cavity, core, grill-forming sections, parting surfaces, ejection system, and cooling arrangement are inspected.

• Dimensional Inspection: Overall dimensions, grill openings, wall thickness, mounting points, and locating features are checked.

• Visual Inspection: Parts are examined for flash, short shots, sink marks, warpage, weld lines, scratches, and other visible moulding defects.

• Fitment Inspection: The grill is checked against the inverter enclosure for proper positioning and assembly.

• Airflow Opening Inspection: Grill openings are checked for consistency and unobstructed formation according to the approved design.

• Packaging Inspection: Finished components are packed appropriately to minimize scratches, deformation, and handling damage.

Buyer Guide

When sourcing an Inverter Plastic Front Bottom Grill Mould and Moulding Service, buyers should provide:

• 2D engineering drawing or 3D CAD model

• Overall grill dimensions

• Required ventilation opening pattern

• Mounting and fixing arrangement

• Preferred plastic grade

• Required colour and surface texture

• Expected production quantity

• Operating temperature and application conditions

• Assembly requirements

• Packaging specifications

For new designs, the mould structure and plastic material can be evaluated according to the required component geometry, production volume, and application environment.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Our injection moulding capabilities support consistent production of plastic grill components for inverter and power backup applications.

In-House Mould Manufacturing

We support mould development and manufacturing with precision machining and mould-making processes designed around the component's geometry and production requirements.

OEM & ODM Manufacturing

Customer-specific grill patterns, dimensions, mounting features, colours, and surface finishes can be developed according to approved specifications.

Quality Assurance

Material, mould, dimensional, visual, and fitment inspections help maintain consistent production quality.

Cost-Effective Manufacturing

Efficient mould design, suitable material selection, and controlled injection moulding processes help achieve economical production for different order volumes.

Frequently Asked Questions

1. What is an Inverter Plastic Front Bottom Grill?

It is a moulded plastic component installed at the lower front section of an inverter enclosure, commonly providing ventilation openings, protective coverage, and an integrated external finish.

2. Which plastic materials are suitable for the front bottom grill?

ABS, HIPS, PP, PC+ABS, PC, PBT, and suitable flame-retardant plastics can be considered based on the required strength, airflow, thermal conditions, electrical environment, and appearance.

3. Can the grill opening pattern be customized?

Yes. The grill pattern, opening size, spacing, shape, mounting arrangement, and overall dimensions can be developed according to the customer's approved design.

4. Does Renovator Appliances Ltd. provide both mould making and moulding?

Yes. We can provide plastic injection mould development and moulding services for inverter front bottom grill components based on customer requirements.

5. What details are needed for front bottom grill mould development?

A 2D drawing, 3D CAD file, physical sample, or detailed component specifications can be used to evaluate the mould design, material selection, production process, and manufacturing feasibility.
