Product Overview

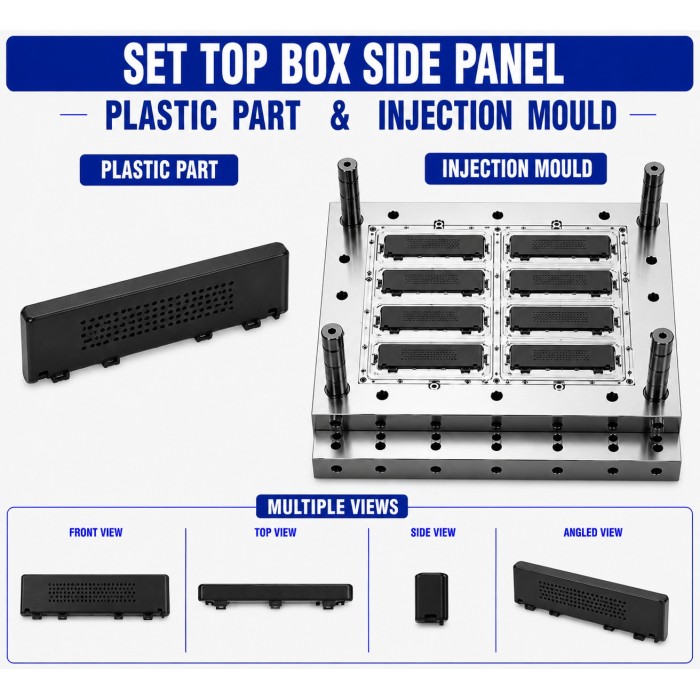

The Set Top Box Plastic Side Panel Mould and Moulding Service is designed for manufacturing precision-moulded plastic side panels used in digital set top boxes, DTH receivers, cable TV boxes, and IPTV devices. The side panel forms the lateral section of the enclosure and helps protect internal electronic components while providing structural support and a finished external appearance.

The side panel can be customized according to the set top box dimensions, internal component layout, ventilation requirements, cable routing, connector positions, and top and bottom cover interfaces. Features such as ventilation slots, locating ribs, mounting bosses, clips, snap-fits, screw-fixing points, cable clearances, and structural reinforcement ribs can be incorporated according to the product design.

Injection moulding provides consistent dimensions, controlled wall thickness, repeatable assembly features, and uniform surface quality suitable for OEM and bulk production.

Key Features

• Precision-moulded plastic side panel for set top box applications

• Provides lateral protection for internal electronic components

• Customized dimensions according to the enclosure design

• Ventilation slots or openings for airflow management

• Mounting bosses, locating ribs, clips, and snap-fit features

• Screw-fixing points for secure enclosure assembly

• Accurate interface with top and bottom covers

• Cable and connector clearance provisions

• Reinforcing ribs for improved structural support

• Controlled wall thickness for dimensional consistency

• Smooth and uniform external surface finish

• Customized colour, texture, and surface appearance

• Lightweight enclosure construction

• Suitable for OEM and ODM manufacturing

• Consistent production through precision injection moulding

Industrial Applications

Manufacturing Process

1. Product Design & Development

The side panel is developed according to the set top box dimensions, internal component arrangement, ventilation requirements, cable routing, and top and bottom cover interfaces. CAD drawings, 3D models, technical specifications, or physical samples can be used for development.

2. Plastic Mould Design

A dedicated injection mould is designed according to the side-panel geometry. Parting line, cavity configuration, gate location, ejection system, cooling channels, draft angles, ribs, bosses, clips, and wall-thickness distribution are considered for reliable moulding.

3. Mould Manufacturing

The mould components are precision-machined, assembled, finished, and inspected. P20 Steel, H13 Steel, S136 Steel, or another suitable mould material can be selected according to production quantity, surface-finish requirements, and expected mould life.

4. Injection Moulding

The selected plastic resin is heated and injected into the mould cavity under controlled processing conditions. After cooling and solidification, the mould opens and the finished side panel is ejected.

5. Finishing & Assembly Preparation

Moulded side panels are inspected for flash, gate marks, sink marks, warpage, scratches, burn marks, and other visible defects. Trimming or secondary finishing can be performed where required.

6. Quality Inspection

Finished side panels are checked for dimensions, ventilation openings, mounting features, cover interfaces, surface finish, and fitment with the complete set top box enclosure.

Raw Materials

The final resin should be selected according to the set top box's operating temperature, electrical environment, impact requirements, enclosure design, flame-performance requirements, and applicable product specifications.

Quality Control

• Raw Material Inspection: Verification of the specified resin grade and processing characteristics.

• Mould Inspection: Checking cavity condition, parting line, cooling system, ejection mechanism, and mould dimensions.

• Dimensional Inspection: Measurement of overall panel dimensions, wall thickness, ribs, openings, bosses, and mounting points.

• Ventilation Inspection: Checking the size, position, and consistency of ventilation slots or openings.

• Cover Interface Inspection: Verification of the mating interface with the top and bottom enclosure covers.

• Mounting Feature Inspection: Checking screw bosses, clips, snap-fits, locating posts, and fastening provisions.

• Cable Clearance Inspection: Verification of required clearance around cables and connectors.

• Structural Inspection: Checking reinforcing ribs and other structural features for proper moulding and assembly.

• Surface Inspection: Checking for warpage, sink marks, scratches, flash, burn marks, and other cosmetic defects.

• Assembly Inspection: Verification of proper enclosure alignment and fastening.

• Packaging Inspection: Protection of finished panels against scratches, deformation, and transportation damage.

Buyer Guide

Before ordering a Set Top Box Plastic Side Panel Mould and Moulding Service, buyers should provide:

• Overall side-panel dimensions

• CAD drawing, 3D model, technical drawing, or physical sample

• Top-cover and bottom-cover mating dimensions

• Internal PCB and component layout

• Required ventilation slot or opening dimensions

• Cable and connector clearance requirements

• Required screw bosses, clips, snap-fits, and locating features

• Structural rib and reinforcement requirements

• Required wall thickness

• Operating temperature and internal heat conditions

• Required plastic grade and flame-performance requirements

• Colour, texture, and surface finish

• Expected production quantity and mould-life requirement

• Prototype or sampling requirements before mass production

Providing accurate enclosure and internal-component specifications helps in developing the mould with proper fitment, ventilation, structural support, and assembly compatibility.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Renovator Appliances Ltd provides precision injection moulding solutions for customized electronic enclosure components and set top box plastic parts.

In-House Mould Manufacturing

In-house mould manufacturing capabilities provide better control over cavity geometry, mounting features, dimensional accuracy, and production requirements.

OEM & ODM Manufacturing

Customized side panels can be developed according to customer CAD files, drawings, physical samples, or technical specifications.

Quality Assurance

Quality-control procedures focus on dimensional consistency, surface finish, fitment, mounting features, ventilation, and application-specific requirements.

Cost-Effective Manufacturing

Optimized moulding solutions support repeat production, consistent quality, and economical manufacturing for suitable production volumes.

Frequently Asked Questions

1. What is Set Top Box Plastic Side Panel Mould and Moulding Service?

It is a customized mould design, mould manufacturing, and injection moulding service for producing plastic side panels used in digital, DTH, cable TV, and IPTV set top box enclosures.

2. Which material is suitable for a set top box side panel?

ABS, HIPS, PP, PC+ABS, PC, PBT, Nylon, glass-filled nylon, and suitable flame-retardant plastics can be considered depending on the required strength, appearance, dimensional stability, temperature, and electrical enclosure requirements.

3. Can the side panel be customized according to the set top box design?

Yes. Dimensions, ventilation openings, mounting bosses, reinforcing ribs, clips, snap-fits, screw posts, locating features, and cable clearances can be customized according to the enclosure design.

4. Can ventilation slots be incorporated into the side panel?

Yes. Ventilation slots, openings, louvers, or other airflow features can be incorporated according to the set top box's internal thermal-management and enclosure requirements.

5. Can Renovator Appliances Ltd manufacture customized side panel moulds for OEM production?

Yes. Customized moulds and injection-moulded set top box side panels can be developed according to customer drawings, CAD models, samples, specifications, and production requirements.
