Room Heater Plastic Air Guide Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd manufactures high-quality Room Heater Plastic Air Guides and provides complete Plastic Injection Mould Design, Mould Manufacturing, and Moulding Services for electric room heaters, fan heaters, ceramic heaters, portable heating appliances, and customized air circulation equipment.

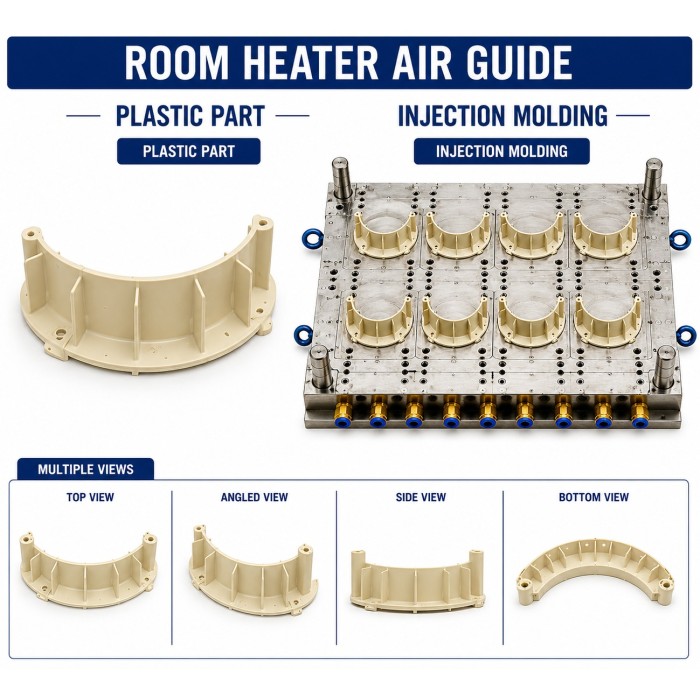

The Room Heater Plastic Air Guide is an internal or semi-enclosed airflow management component designed to guide and distribute air between the blower or fan assembly, heating section, and air outlet of a room heater. It helps maintain a controlled airflow path and can improve the direction and consistency of air movement within the appliance. Depending on the heater design, the air guide may include channels, ribs, partitions, guide walls, mounting bosses, clips, and outlet transitions.

Manufactured using advanced plastic injection moulding technology, our Room Heater Plastic Air Guides are designed for accurate dimensions, smooth airflow paths, structural strength, lightweight construction, secure assembly, and consistent production quality. We offer OEM and customized manufacturing solutions according to customer drawings, CAD files, 3D models, samples, dimensions, and technical specifications.

Key Features

Controlled Airflow Path

Designed to guide air through the required section of the heater and support efficient airflow distribution.

Precision Air Channel Geometry

Manufactured with accurate channels, walls, partitions, ribs, and outlet transitions according to the required airflow path.

Secure Assembly Design

Can include mounting holes, clips, bosses, locating features, and snap-fit arrangements for reliable installation inside the heater.

Lightweight Construction

Plastic construction provides a practical combination of low weight, structural strength, and manufacturing efficiency.

Heat & Dimensional Stability

Suitable plastic materials can be selected according to the operating temperature, airflow conditions, mechanical requirements, and appliance design.

OEM Customization

Available in customized dimensions, channel shapes, wall thicknesses, mounting features, colours, material grades, and surface finishes.

Industrial Applications

Our Room Heater Plastic Air Guides are widely used in:

Manufacturing Process

Our Room Heater Plastic Air Guides are manufactured using controlled and precision plastic injection moulding technology.

Product Design & Development

The air guide is developed using customer drawings, CAD files, 3D models, or existing samples. Important design parameters may include overall dimensions, airflow channel size, wall thickness, guide wall geometry, outlet transition, mounting points, clips, ribs, bosses, internal clearances, and component interfaces.

Mould Design & Manufacturing

A precision injection mould is designed according to the air guide geometry, selected plastic material, production volume, shrinkage requirements, and injection moulding machine specifications. Advanced tooling processes may include:

• CNC machining

• EDM machining

• Wire EDM cutting

• Surface grinding

• Precision polishing

• Insert machining

• Drilling and fitting

• Advanced mould finishing

Material Selection

A suitable plastic grade is selected according to the component's operating temperature, dimensional stability, mechanical strength, heat exposure, airflow environment, and application requirements.

Injection Moulding Production

Plastic resin is heated and converted into molten material inside the injection moulding machine. The molten plastic is injected into the mould cavity under controlled pressure, temperature, and speed to form the required air guide geometry.

Cooling & Ejection

The mould cooling system helps solidify the component while controlling shrinkage and maintaining dimensional stability. After sufficient cooling, the air guide is ejected through the mould ejection system.

Finishing & Quality Inspection

The moulded air guide undergoes trimming, visual inspection, dimensional checking, channel and opening verification, mounting feature inspection, surface inspection, and assembly fitment testing.

Mould Manufacturing Process

Renovator Appliances Ltd provides complete Room Heater Plastic Air Guide Mould Manufacturing Services.

Mould Design

The mould is engineered with suitable cavity and core configuration, parting line, gate location, runner system, cooling channels, draft angles, ejection arrangement, internal guide walls, mounting features, ribs, bosses, and shrinkage allowance.

CNC Machining

Mould plates, cavity components, core components, inserts, and other tooling parts are precision-machined using CNC equipment according to the approved mould design.

EDM & Wire EDM

EDM and Wire EDM processes may be used for complex internal guide features, narrow channels, detailed mounting areas, and sections requiring high machining accuracy.

Cooling System

Cooling channels are designed to provide controlled mould temperature and support consistent dimensions, reduced warpage, and stable production cycles.

Ejection System

The ejection mechanism is designed to safely remove the air guide without damaging thin guide walls, ribs, clips, mounting bosses, or other critical features.

Mould Assembly & Trial

After machining and finishing, all mould components are assembled and aligned. Trial moulding is conducted to evaluate filling, cooling, ejection, shrinkage, warpage, dimensions, channel geometry, surface quality, and assembly fitment.

Final Mould Approval

Necessary tooling corrections, modifications, and finishing operations are completed before the mould is approved for regular injection moulding production.

Raw Materials

The appropriate plastic material depends on the air guide's operating temperature, mechanical requirements, dimensional stability, heat exposure, and heater design.

Final material selection should be based on the actual operating temperature, component location, heater design, airflow conditions, and applicable technical or safety requirements.

Quality Control

Every Room Heater Plastic Air Guide can undergo systematic quality inspection to maintain dimensional accuracy, correct airflow geometry, structural integrity, and assembly consistency.

• Raw material verification

• Overall dimension inspection

• Wall thickness inspection

• Air channel dimension checking

• Guide wall and partition inspection

• Air inlet and outlet opening measurement

• Mounting hole measurement

• Clip and snap-fit verification

• Rib and boss inspection

• Housing fitment checking

• Surface finish inspection

• Colour consistency checking

• Warpage inspection

• Flash and burr inspection

• Sink mark inspection

• Short-shot inspection

• Crack and deformation inspection

• Airflow passage verification where required

• Final visual quality inspection

Production Capacity

Production capacity depends on mould cavity count, injection moulding machine capacity, component weight, plastic material, cycle time, cooling requirements, mould design, product geometry, and overall production efficiency.

For example, a 4-cavity mould operating with a 30-second cycle time can theoretically produce approximately 480 pieces per hour before accounting for machine downtime, material handling, quality inspection, mould maintenance, and other production factors.

Actual production capacity is finalized according to the air guide design, mould cavity configuration, selected material, injection moulding machine specifications, and required production schedule.

Buyer Guide

Before ordering a Room Heater Plastic Air Guide Mould and Moulding Service, buyers should provide the available technical and product information for accurate mould and component development.

Recommended specifications include:

• Product drawing or 3D CAD model

• Existing air guide sample, if available

• Overall component dimensions

• Air channel dimensions

• Guide wall thickness

• Inlet and outlet dimensions

• Guide wall and partition layout

• Mounting hole locations

• Clip and snap-fit requirements

• Rib and boss locations

• Fan or blower interface details

• Heater housing integration details

• Required plastic material

• Operating temperature

• Colour requirements

• Surface finish requirements

• Monthly or annual production quantity

• Required mould cavity count

• Room heater model or assembly details

Providing complete specifications helps determine the appropriate air guide geometry, mould construction, plastic material, injection machine capacity, cavity configuration, and manufacturing process.

Why Choose Renovator Appliances Ltd?

• Precision Injection Mould Manufacturing

• OEM & ODM Plastic Components

• Advanced Plastic Injection Moulding Technology

• Customized Room Heater Air Guide Manufacturing

• Precision Airflow Component Design

• Customized Air Channel and Guide Geometry

• Suitable Engineering Plastic Material Selection

• Customized Colour and Surface Finish Options

• Strict Quality Control System

• Prototype and Bulk Production Support

• High Production Capability

• Competitive Manufacturing Solutions

• Reliable Delivery Support

Renovator Appliances Ltd provides an integrated manufacturing solution covering product development, mould design, mould manufacturing, mould trials, plastic injection moulding, quality inspection, and bulk production for customized Room Heater Plastic Air Guides.

Frequently Asked Questions (FAQ)

Q1. What is a Room Heater Plastic Air Guide?

A Room Heater Plastic Air Guide is a plastic airflow management component used inside a room heater to guide air between the fan or blower, heating section, and outlet. It helps establish a controlled airflow path within the appliance.

Q2. Which materials are used for Room Heater Plastic Air Guides?

Common material options include ABS, PP, PC+ABS, HIPS, PBT, flame-retardant ABS, and engineering-grade thermoplastics, depending on required heat resistance, dimensional stability, mechanical strength, and application requirements.

Q3. Can Room Heater Plastic Air Guides be customized?

Yes. We provide OEM customization according to dimensions, channel geometry, guide wall configuration, wall thickness, mounting features, clips, ribs, bosses, colour, texture, surface finish, and customer drawings or samples.

Q4. How are Room Heater Plastic Air Guides manufactured?

They are manufactured using precision plastic injection moulding technology. Plastic resin is melted and injected into a specially designed mould cavity, followed by cooling, ejection, finishing, dimensional inspection, and assembly verification.

Q5. Do you manufacture moulds for Room Heater Plastic Air Guides?

Yes. Renovator Appliances Ltd provides complete plastic injection mould design, mould manufacturing, mould trials, mould correction, and injection moulding services for Room Heater Plastic Air Guides according to OEM and customized production requirements.
