Electric Tandoor Plastic Power Socket Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

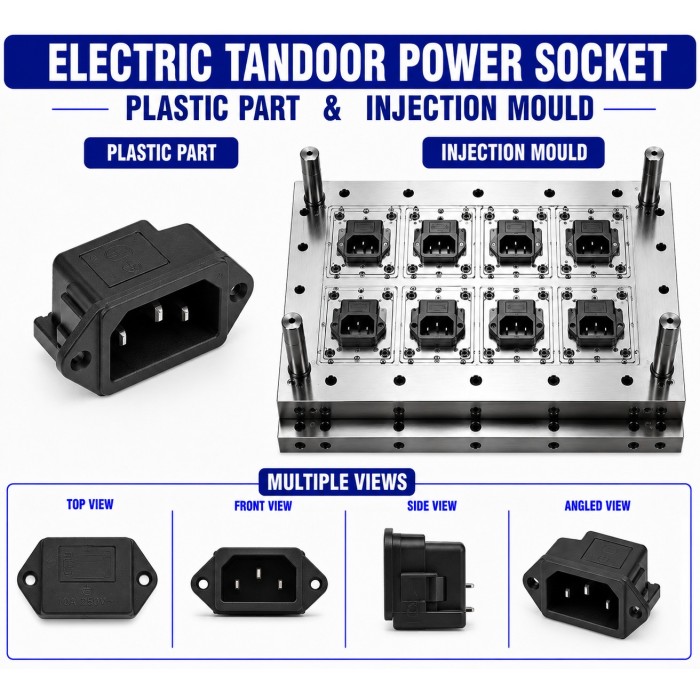

Electric Tandoor Plastic Power Socket is a molded plastic housing or support component used for the electrical power socket interface of an electric tandoor. It helps provide accurate positioning, insulation support, and secure integration of the socket, terminals, wiring, and related electrical components within the appliance body.

Renovator Appliances Ltd provides Electric Tandoor Plastic Power Socket Mould and Moulding Service for OEM and customized electric tandoor applications. The component can be developed with connector openings, mounting bosses, locating ribs, clips, screw-fixing points, cable-entry features, and other assembly details according to the product design.

Because the socket is part of an electrical assembly, the selected plastic grade and component design should be validated for the actual voltage, current, operating temperature, insulation requirements, mechanical loading, and applicable electrical safety requirements.

Key Features

• Designed for electric tandoor power socket assemblies.

• Provides a structured plastic housing or support around the electrical socket.

• Accurate connector and terminal positioning.

• Mounting bosses, screw posts, ribs, clips, and locating features can be customized.

• Cable-entry and wire-routing provisions can be incorporated according to the assembly.

• Suitable insulation-supporting plastic materials can be selected according to application requirements.

• Compact geometry for integration within the appliance enclosure.

• Consistent dimensions for reliable assembly and fitment.

• Colour, surface finish, and texture can be customized.

• Suitable for OEM, ODM, and customized electric tandoor production.

Industrial Applications

Manufacturing Process

1. Product Design & Development

The power socket component is developed according to the electrical connector dimensions, terminal arrangement, cable-entry requirements, appliance enclosure, mounting arrangement, and required insulation clearances. Internal locating features and assembly interfaces are considered during product development.

2. Plastic Mould Design

A precision injection mould is designed according to the component geometry and selected plastic grade. Gate position, parting line, draft angles, cooling channels, ejection system, wall thickness, and material shrinkage are considered to achieve consistent moulded parts.

3. Mould Manufacturing

The mould can be manufactured using suitable mould steels such as P20 Steel, H13 Steel, or S136 Steel, depending on production volume, dimensional requirements, surface finish, and expected mould life.

CNC machining, EDM, drilling, polishing, mould fitting, and trial moulding can be carried out as required.

4. Injection Moulding

The selected electrical-grade or engineering plastic is processed through an injection moulding machine. Injection temperature, pressure, holding pressure, cooling time, and cycle parameters are controlled to achieve repeatable dimensions and surface quality.

5. Finishing & Assembly Preparation

After moulding, components are inspected and trimmed where required. Flash, sharp edges, excessive gate marks, short shots, and other moulding imperfections are controlled before the component is prepared for assembly.

6. Quality Inspection

Finished power socket components are inspected for dimensions, connector openings, mounting features, fitment, appearance, and structural integrity. Electrical and safety validation should be performed on the finished electrical assembly according to its intended application.

Raw Materials

The final material should be selected based on the actual electrical and thermal conditions, insulation requirements, mechanical stresses, environmental exposure, and applicable standards. General-purpose plastic should not be assumed suitable for a power socket application without appropriate validation.

Quality Control

Renovator Appliances Ltd follows controlled inspection procedures for Electric Tandoor Plastic Power Socket production:

• Raw Material Inspection: Plastic grade and incoming material quality are checked according to production requirements.

• Mould Inspection: Cavity condition, mould dimensions, ejector operation, and critical features are inspected.

• Dimensional Inspection: Socket openings, mounting points, terminal interfaces, and critical clearances are verified.

• Visual Inspection: Parts are checked for flash, sink marks, short shots, burn marks, cracks, warpage, and other surface defects.

• Assembly Fitment Inspection: Sample components can be checked with the socket, terminals, wires, and mating appliance components.

• Electrical Safety Review: The finished socket assembly should undergo suitable electrical and safety testing according to its intended application.

• Packaging Inspection: Components are appropriately packed to reduce scratches, deformation, contamination, and handling damage.

Buyer Guide

When sourcing an Electric Tandoor Plastic Power Socket, buyers should consider:

1. Socket Dimensions: Provide the exact socket and connector dimensions.

2. Terminal Arrangement: Share terminal positions and required internal clearances.

3. Cable Requirements: Provide cable diameter and cable-entry details.

4. Mounting Arrangement: Specify screw holes, clips, bosses, slots, or other fixing requirements.

5. Material Requirement: Select an appropriate electrical-grade, engineering, or flame-retardant plastic.

6. Temperature Exposure: Specify the expected operating and peak temperature around the socket.

7. Electrical Requirements: Consider voltage, current, insulation, creepage, clearance, and applicable safety requirements.

8. Production Quantity: Select the mould configuration according to expected production volume.

9. Quality Requirements: Specify dimensional tolerances, colour, surface finish, and required validation procedures.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Renovator Appliances Ltd supports precision plastic component manufacturing using controlled injection moulding processes for appliance and electrical component applications.

In-House Mould Manufacturing

Our mould manufacturing capability supports customized power socket component designs with application-specific geometry, mounting features, and dimensional requirements.

OEM & ODM Manufacturing

We support OEM and ODM requirements from product development and mould manufacturing through injection moulding and production supply.

Quality Assurance

Controlled moulding parameters together with dimensional, visual, and fitment inspections help maintain consistent production quality.

Cost-Effective Manufacturing

Optimized mould design, appropriate material selection, and repeatable injection moulding processes can support economical production for customized electric tandoor power socket components.

Frequently Asked Questions

1. What is an Electric Tandoor Plastic Power Socket?

It is a molded plastic housing or support component used around the electrical power socket interface of an electric tandoor.

2. Which materials can be used for a plastic power socket?

Depending on the application, electrical-grade ABS, PC+ABS, PBT, Nylon, Glass-Filled Nylon, PC, or suitable flame-retardant engineering plastics may be considered. The final material must be validated for the actual electrical and thermal conditions.

3. Can the power socket component be customized?

Yes. The component can be customized according to socket dimensions, terminal arrangement, mounting points, cable-entry geometry, locating features, clips, ribs, colour, surface finish, and appliance design.

4. Does Renovator provide both mould manufacturing and injection moulding?

Yes. Renovator Appliances Ltd provides mould manufacturing and injection moulding services for customized Electric Tandoor Plastic Power Socket requirements.

5. What information is required for manufacturing?

A 2D drawing, 3D CAD model, sample component, socket dimensions, terminal arrangement, cable specifications, material requirement, operating conditions, production quantity, colour, and applicable electrical safety requirements are useful for accurate development.
