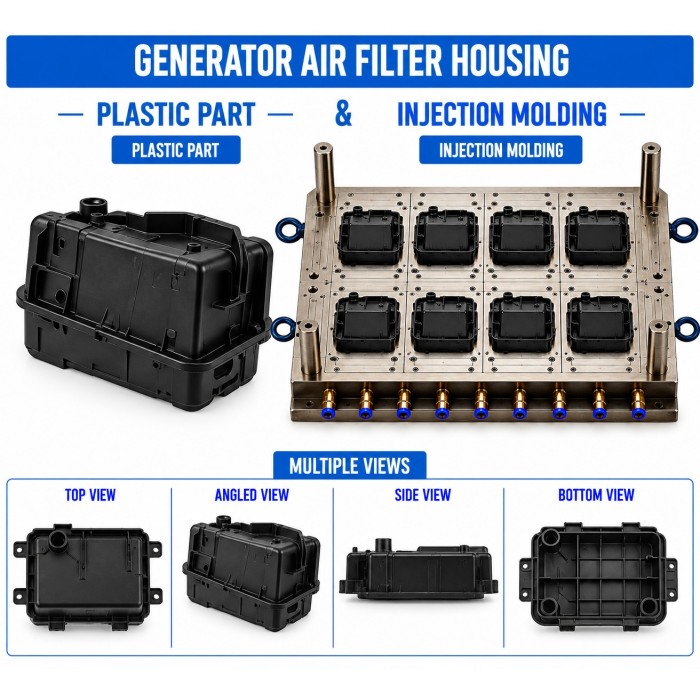

Generator Plastic Air Filter Housing Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd manufactures Generator Plastic Air Filter Housing Mould and Moulding Service for generator engine air-intake and filtration systems. The housing encloses the air filter element and provides a controlled path for incoming air while helping protect the filter and engine intake from dust, dirt, and external contaminants.

The housing is designed according to the air filter element dimensions, inlet and outlet configuration, sealing arrangement, mounting points, cover interface, and available engine-compartment space. Accurate moulding is important for maintaining proper filter seating, airtight interfaces, airflow passage, and secure installation on the generator assembly.

Key Features

• Application-specific housing for generator air filtration systems

• Accurate filter-element cavity and seating profile

• Controlled inlet and outlet airflow passages

• Proper sealing interface for reducing unfiltered-air leakage

• Precisely positioned mounting bosses and fastening points

• Cover and housing interface designed for secure fitment

• Internal clearance for filter element installation and removal

• Reinforcing ribs for improved housing rigidity where required

• Controlled wall thickness for dimensional stability

• Smooth internal airflow surfaces

• Resistance considerations for dust, moisture, vibration, and engine-compartment temperature

• Suitable for OEM and bulk injection moulding production

Industrial Applications

Manufacturing Process

1. Product Design & Development

The housing is developed according to the air filter element size, filter-media profile, air inlet and outlet positions, sealing arrangement, mounting points, cover interface, and surrounding engine components. Internal geometry is planned to provide sufficient filter clearance while maintaining the required airflow path.

2. Plastic Mould Design

The mould is designed around the filter cavity, inlet and outlet passages, sealing surfaces, mounting bosses, ribs, cover interface, locating features, and service-access areas. Gate placement, parting-line location, ejector arrangement, cooling channels, and draft angles are optimized to reduce warpage and maintain dimensional accuracy around critical sealing and mounting surfaces.

3. Mould Manufacturing

The mould is manufactured using suitable tool steel such as P20, H13, or S136 according to production volume, plastic material, surface-finish requirements, and expected mould life. CNC machining, EDM, drilling, polishing, fitting, and mould trials are carried out to achieve accurate cavity geometry.

4. Injection Moulding

The selected thermoplastic material is injection moulded under controlled temperature, pressure, speed, holding pressure, and cooling conditions. Process parameters are optimized to maintain housing dimensions, sealing surfaces, mounting features, and airflow passages while minimizing sink marks, short shots, flash, and warpage.

5. Finishing & Assembly Preparation

After moulding, gate remnants and flash are removed where required. Filter seating surfaces, sealing interfaces, mounting bosses, inlet and outlet passages, and cover-fitting areas are inspected before the housing is prepared for assembly.

6. Quality Inspection

Production parts are checked for overall dimensions, filter cavity geometry, inlet and outlet dimensions, sealing surfaces, mounting-hole positions, cover fitment, wall thickness, internal clearance, and surface quality. Fitment and airflow-related validation can be performed with the complete air-filter assembly.

Raw Materials

Material selection should be finalized according to engine-compartment temperature, vibration, dust and moisture exposure, chemical environment, filter compatibility, and applicable generator specifications.

Quality Control

Renovator Appliances Ltd applies component-specific quality checks for Generator Plastic Air Filter Housing Mould and Moulding Service, including:

• Overall housing dimensions and profile inspection

• Filter cavity and seating-dimension verification

• Air inlet and outlet passage inspection

• Sealing-surface geometry checking

• Cover-to-housing fitment inspection

• Mounting-hole and boss position verification

• Wall-thickness consistency checking

• Internal clearance inspection

• Warpage and distortion inspection

• Flash, sink mark, and short-shot inspection

• Surface-finish inspection

• Filter-element fitment testing

• Housing assembly and sealing validation

• Material and colour consistency checks

Buyer Guide

Before ordering the Generator Plastic Air Filter Housing Mould and Moulding Service, buyers should provide the filter element sample or drawing, housing dimensions, filter cavity requirements, inlet and outlet dimensions, sealing method, cover design, mounting-hole pattern, engine interface, material preference, colour, surface finish, and production quantity.

The complete air-intake assembly should be considered during mould development because filter seating, sealing, airflow restriction, cover fitment, and mounting alignment all influence the performance of the finished housing.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Controlled injection moulding processes support consistent housing dimensions, sealing interfaces, and repeatable production quality.

In-House Mould Manufacturing

Mould development is coordinated with the filter element, airflow passages, cover interface, mounting arrangement, and engine-side geometry.

OEM & ODM Manufacturing

Air filter housings can be manufactured according to customer drawings, CAD models, physical samples, and generator-specific requirements.

Quality Assurance

Dimensional, visual, material, fitment, sealing, and assembly inspections help maintain consistent housing production.

Cost-Effective Manufacturing

Tooling and production parameters can be planned according to housing size, geometry, production volume, material selection, and required mould life.

Frequently Asked Questions

1. What is a Generator Plastic Air Filter Housing used for?

It encloses the air filter element and provides a controlled intake path while helping protect the generator engine from airborne dust and contaminants.

2. What plastic materials can be used for an air filter housing?

PP, ABS, nylon, glass-filled nylon, and other engineering-grade plastics may be considered according to temperature, vibration, rigidity, dimensional stability, and environmental requirements.

3. Can the air filter housing be manufactured according to an existing filter assembly?

Yes. The mould can be developed from customer drawings, CAD data, filter samples, housing samples, or complete assembly specifications after engineering evaluation.

4. Why is the sealing interface important in an air filter housing?

A properly designed sealing interface helps prevent unfiltered air from bypassing the filter element and entering the engine intake path.

5. Can Generator Plastic Air Filter Housing be manufactured in bulk?

Yes. The component can be produced for OEM and bulk requirements, with mould cavity configuration selected according to component geometry, production volume, cycle time, and tooling requirements.
