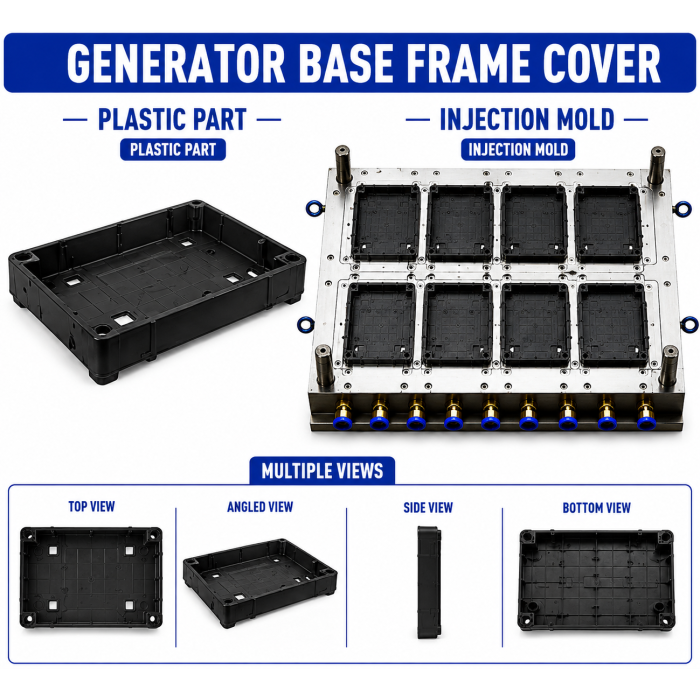

Generator Plastic Base Frame Cover Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd provides Generator Plastic Base Frame Cover Mould and Moulding Service for manufacturing protective plastic covers used around the generator base frame and lower structural assembly. The cover is designed to protect exposed frame sections, mounting areas, wiring or nearby components while providing a clean and integrated appearance to the generator assembly.

The mould is developed according to the required frame profile, cover dimensions, mounting locations, wall thickness, internal clearances, fastening arrangement, and installation space. Proper mould design helps achieve consistent dimensions, accurate fitment, controlled warpage, and reliable production across repeated manufacturing cycles.

Key Features

• Component-specific mould design for generator base frame cover applications

• Accurate profile matching with the generator base frame

• Proper clearance for frame members, mounting hardware, and adjacent components

• Reinforced ribs and bosses where additional structural support is required

• Provision for screw mounting, clips, snap-fits, or other specified fastening methods

• Controlled wall thickness for dimensional stability and moulding consistency

• Smooth external surface suitable for the required generator appearance

• Durable plastic construction suitable for equipment operating environments

• Consistent repeatability for OEM and replacement-part production

• Suitable for customized designs, production volumes, and assembly requirements

Industrial Applications

Manufacturing Process

1. Product Design & Development

The generator base frame cover is developed according to the required overall dimensions, frame geometry, mounting points, fastening method, wall thickness, internal clearance, and surrounding component interfaces. Snap-fits, screw bosses, locating ribs, ventilation openings, cable clearances, and other functional features are incorporated according to the product design.

2. Plastic Mould Design

The injection mould is engineered according to the cover geometry and production requirements. Parting lines, gate locations, ejector positions, cooling channels, draft angles, ribs, bosses, and cavity configuration are optimized to support uniform filling, easy demoulding, dimensional accuracy, and reduced risk of warpage.

3. Mould Manufacturing

The mould is manufactured using suitable mould steel such as P20, H13, or S136 depending on production volume, surface-finish requirements, material characteristics, and expected mould life. Precision machining and finishing are carried out for the cavity, core, mounting features, ribs, bosses, and other detailed sections.

4. Injection Moulding

The selected plastic material is processed under controlled injection moulding conditions. Injection pressure, temperature, filling speed, holding pressure, cooling time, and cycle parameters are adjusted according to the material and component geometry to produce consistent base frame covers.

5. Finishing & Assembly Preparation

After moulding, parts are inspected and prepared by removing required runners or gates and checking edges, mounting features, clips, holes, and other functional details. Additional finishing or assembly preparation can be performed according to OEM requirements.

6. Quality Inspection

Each production batch can be checked for overall dimensions, frame fitment, mounting-hole positions, wall thickness, warpage, surface condition, fastening features, and interference with surrounding generator components.

Raw Materials

The final material is selected according to operating temperature, impact exposure, vibration, electrical proximity, environmental conditions, required appearance, and applicable generator specifications.

Quality Control

Renovator Appliances Ltd applies dimensional and visual inspection procedures to maintain consistent moulded-part quality. Important inspection points include:

• Overall length, width, height, and profile

• Base-frame interface and fitment

• Mounting-hole and boss positions

• Snap-fit or clip dimensions

• Wall thickness consistency

• Rib and reinforcement geometry

• Internal clearance from frame and adjacent components

• Warpage and deformation

• Surface finish and appearance

• Flash, sink marks, short shots, and moulding defects

• Assembly compatibility with the generator base structure

Functional fitment checks and material verification can also be carried out according to the customer's quality requirements.

Buyer Guide

Before ordering a Generator Plastic Base Frame Cover Mould and Moulding Service, buyers should provide the required component drawing, 3D model, sample part, or dimensional specifications wherever available. Important requirements include:

• Generator base-frame dimensions and profile

• Overall cover dimensions

• Mounting arrangement

• Screw, clip, or snap-fit requirements

• Required wall thickness

• Internal clearance requirements

• Plastic material and grade

• Surface-finish expectations

• Colour requirements

• Expected production quantity

• Assembly and fitment specifications

Providing accurate frame and assembly information helps optimize the mould design and reduces fitment issues during production.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Our injection moulding capabilities support consistent production of generator plastic components with controlled processing parameters and repeatable dimensional quality.

In-House Mould Manufacturing

In-house mould manufacturing enables better control over cavity geometry, mould accuracy, cooling, ejection, and component-specific tooling requirements.

OEM & ODM Manufacturing

We support customized generator components according to customer drawings, samples, 3D models, functional requirements, and production specifications.

Quality Assurance

Dimensional, visual, material, and fitment checks help maintain consistent quality across production batches.

Cost-Effective Manufacturing

Optimized mould design, appropriate cavity configuration, material selection, and controlled production processes help support economical manufacturing for both development and production requirements.

Frequently Asked Questions

1. What is a Generator Plastic Base Frame Cover?

It is a moulded plastic component designed to cover and protect selected sections of a generator's base frame or lower structural assembly while providing a finished appearance.

2. Which plastic materials can be used for this cover?

PP, ABS, HIPS, PC+ABS, engineering-grade plastics, or flame-retardant materials may be considered depending on temperature, impact, vibration, electrical proximity, and application requirements.

3. Can the mould include screw bosses and snap-fit features?

Yes. Screw bosses, locating ribs, clips, snap-fits, mounting holes, and other fastening features can be incorporated into the mould according to the generator assembly design.

4. Can the Generator Plastic Base Frame Cover be customized?

Yes. Dimensions, profile, mounting arrangement, wall thickness, surface finish, colour, material, and functional features can be customized according to the required generator model and assembly.

5. What information is required to manufacture the mould?

A 3D CAD model, engineering drawing, physical sample, or accurate dimensional specifications can be used to develop the mould. Frame geometry, mounting points, material requirements, production quantity, and assembly conditions are also useful for tooling development.
