Product Overview

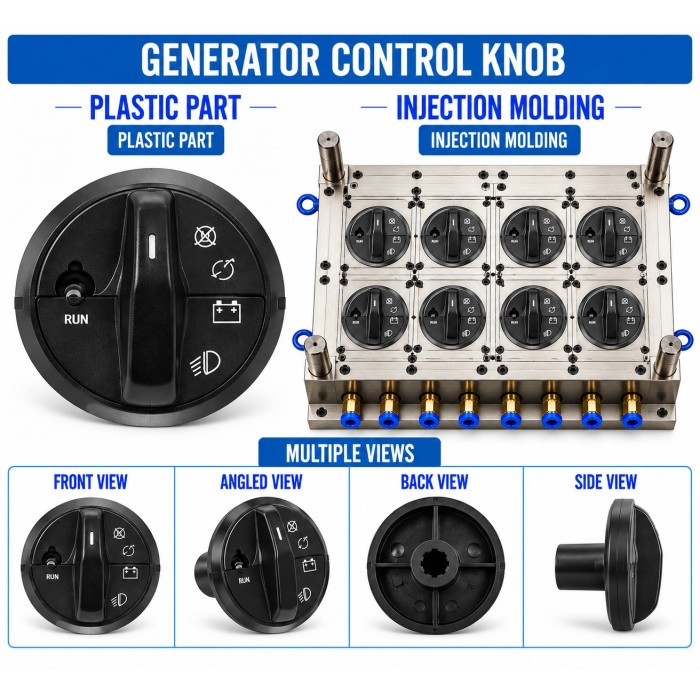

Renovator Appliances Ltd manufactures Generator Plastic Control Knob Mould and Moulding Service for rotary control knobs used on generator control panels. The knob provides a user interface for operating functions such as voltage adjustment, operating mode selection, output control, speed-related settings, or other rotary controls depending on the generator design.

The mould is developed according to the control shaft dimensions, knob diameter, grip profile, mounting depth, rotational torque requirement, indicator position, and control-panel clearance. Accurate moulding helps maintain consistent shaft engagement, smooth operation, proper alignment, and reliable fitment during repeated use.

Key Features

• Precision-moulded generator control knob profile

• Accurate shaft socket and mounting geometry

• Secure torque transfer between knob and control shaft

• Ergonomic grip profile for easy manual operation

• Controlled knob diameter and height

• Accurate indicator or pointer positioning

• Proper clearance from the generator control panel

• Consistent wall thickness for dimensional stability

• Smooth surface finish and clean edges

• Suitable for OEM and customized generator control panels

Industrial Applications

Manufacturing Process

1. Product Design & Development

The Generator Plastic Control Knob is designed according to the control shaft diameter, shaft profile, required insertion depth, knob dimensions, grip geometry, rotational torque, indicator location, and control-panel layout. The internal socket is developed for secure engagement with the corresponding shaft without excessive looseness or interference.

2. Plastic Mould Design

The mould is designed to accurately reproduce the external knob profile and internal shaft socket. Key mould features include the shaft interface, anti-rotation geometry, indicator or pointer detail, grip ribs, locating features, and ejection arrangement. Suitable draft angles, gate positioning, and cooling channels are incorporated to support consistent production.

3. Mould Manufacturing

The mould is manufactured using suitable mould steel such as P20, H13, or S136 according to production volume, required surface finish, plastic material, and expected mould life. CNC machining, EDM, polishing, fitting, and mould trials are used to achieve accurate cavity and core dimensions.

4. Injection Moulding

Selected plastic material is heated and injected into the mould cavity under controlled processing conditions. Proper control of injection pressure, temperature, holding pressure, and cooling helps produce consistent knob dimensions and accurate shaft-socket geometry.

5. Finishing & Assembly Preparation

After moulding, gates and flash are removed and edges are finished as required. Additional operations such as printing, laser marking, hot stamping, or indicator marking can be performed when required for generator control identification.

6. Quality Inspection

Finished knobs are inspected for external dimensions, shaft-socket geometry, rotational fit, indicator alignment, surface finish, wall thickness, and compatibility with the corresponding generator control shaft and panel.

Raw Materials

The final material selection depends on shaft torque, operating temperature, repeated-use requirements, impact exposure, surface requirements, and compatibility with the generator control assembly.

Quality Control

Renovator Appliances Ltd checks the Generator Plastic Control Knob for:

• Overall diameter and height

• Shaft socket dimensions

• Shaft engagement depth

• Anti-rotation feature accuracy

• Rotational fit and torque transfer

• Indicator or pointer alignment

• Grip profile and surface finish

• Wall thickness consistency

• Panel clearance

• Warpage and dimensional deformation

• Flash, sink marks, short shots, and moulding defects

• Assembly compatibility with the control shaft

• Repeated-operation fit where required

Buyer Guide

Before ordering a Generator Plastic Control Knob mould and moulding service, buyers should provide the control shaft diameter and profile, knob dimensions, required insertion depth, grip design, indicator position, colour, plastic material preference, mounting arrangement, and production quantity.

For customized knobs, the shaft-to-socket fit should be carefully specified because excessive clearance can cause knob wobble, while an overly tight fit can make installation difficult or interfere with the control shaft.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Controlled injection moulding processes help maintain accurate knob dimensions, shaft interfaces, and consistent appearance across production batches.

In-House Mould Manufacturing

Mould development and manufacturing can be coordinated with the exact control-shaft interface and external knob geometry.

OEM & ODM Manufacturing

Customized control knobs can be manufactured according to OEM drawings, samples, shaft specifications, or generator control-panel requirements.

Quality Assurance

Dimensional inspection, shaft-fit testing, visual inspection, and functional checks help maintain reliable knob performance.

Cost-Effective Manufacturing

Integrated mould manufacturing and injection moulding support helps streamline production for both customized and volume generator control knob requirements.

Frequently Asked Questions

1. What is a Generator Plastic Control Knob used for?

It is used to provide a manual rotary interface for operating or adjusting generator controls through a switch, potentiometer, selector, or similar control shaft.

2. Can the control knob be customized for a specific generator?

Yes. The knob can be customized according to shaft dimensions, knob size, grip profile, indicator position, colour, mounting depth, and control-panel requirements.

3. Which plastic materials can be used for a generator control knob?

ABS, PP, Nylon/PA, PC+ABS, and POM may be considered depending on the required strength, friction, torque transfer, temperature resistance, appearance, and repeated-use performance.

4. How is the internal shaft socket manufactured accurately?

The shaft socket is incorporated directly into the injection mould cavity/core geometry according to the required shaft profile, insertion depth, anti-rotation features, and specified fit tolerance.

5. Can markings or indicators be added to the control knob?

Yes. Depending on the design, indicator marks, symbols, graduations, or identification markings can be added through suitable secondary processes such as printing, hot stamping, or laser marking.
