Product Overview

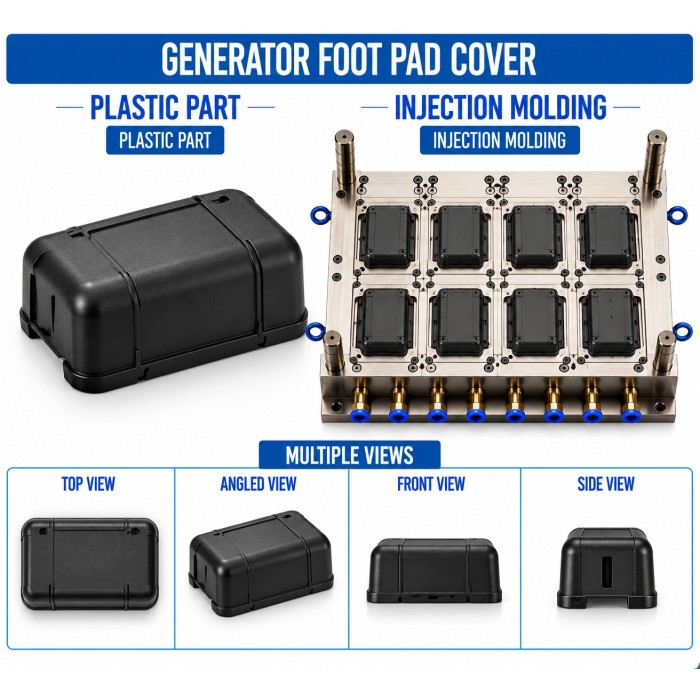

Renovator Appliances Ltd manufactures Generator Plastic Foot Pad Cover Mould and Moulding Service for protective and finishing covers fitted around generator foot pad assemblies. The cover is designed to enclose exposed portions of the foot pad or its mounting area while maintaining the required clearance from the floor, base frame, fasteners, and surrounding components.

The mould is developed according to the foot pad dimensions, mounting-stem or bolt arrangement, cover height, internal clearance, wall thickness, retaining method, and generator base-frame configuration. The design helps provide consistent fitment without interfering with the load-bearing or vibration-isolation function of the actual foot pad.

Key Features

• Application-specific foot pad cover profile

• Accurate fit around the generator foot pad

• Proper clearance for mounting bolts, studs, or stems

• Protective coverage for exposed mounting areas

• Integrated clips, snap-fits, or locating features where required

• Controlled wall thickness for dimensional stability

• Reinforcing ribs where additional rigidity is required

• Smooth and rounded edges

• Proper floor and base-frame clearance

• Consistent fitment with generator assemblies

Industrial Applications

Manufacturing Process

1. Product Design & Development

The Generator Plastic Foot Pad Cover is designed according to the foot pad profile, mounting-stem or bolt dimensions, base-frame interface, required cover height, floor clearance, and installation method. The design ensures that the cover does not interfere with the structural support, compression, or vibration-isolation function of the underlying foot pad.

2. Plastic Mould Design

The mould is designed to accurately reproduce the external cover profile and internal foot-pad clearance. Mounting openings, retaining clips, snap-fits, locating ribs, screw bosses, and other fastening features are incorporated according to the generator assembly.

Draft angles, gate positioning, cooling channels, and ejection arrangements are optimized to reduce warpage and maintain consistent dimensional accuracy.

3. Mould Manufacturing

The mould is manufactured using suitable mould steel such as P20, H13, or S136 depending on production volume, plastic material, surface-finish requirements, and expected mould service life. CNC machining, EDM, drilling, polishing, fitting, and mould trials are performed to achieve the required cavity and core accuracy.

4. Injection Moulding

The selected plastic material is melted and injected into the mould cavity under controlled processing conditions. Injection pressure, filling speed, holding pressure, and cooling time are controlled according to the material and cover geometry to produce stable dimensions and consistent fitment.

5. Finishing & Assembly Preparation

After moulding, gates and flash are removed and edges are finished as required. Internal clearances, mounting openings, retaining features, and floor clearance are checked before the cover is prepared for installation.

6. Quality Inspection

Finished foot pad covers are inspected for overall dimensions, foot-pad fitment, mounting clearance, retaining features, wall thickness, surface finish, and compatibility with the generator base-frame assembly.

Raw Materials

The final plastic grade is selected according to impact, vibration, moisture, chemicals, temperature, installation conditions, and required service life.

Quality Control

Renovator Appliances Ltd checks the Generator Plastic Foot Pad Cover for:

• Overall dimensions and cover profile

• Foot pad and mounting-stem clearance

• Bolt or fastener opening dimensions

• Retaining clip and snap-fit accuracy

• Locating-feature position

• Wall thickness consistency

• Rib and reinforcement geometry

• Generator base-frame fitment

• Floor and support-surface clearance

• Warpage and dimensional deformation

• Flash, sink marks, short shots, and other moulding defects

• Surface finish and edge quality

• Assembly retention and alignment

Buyer Guide

Before ordering a Generator Plastic Foot Pad Cover mould and moulding service, buyers should provide the foot pad dimensions, mounting-stem or bolt size, cover profile, base-frame geometry, fastening method, required floor clearance, material preference, colour, generator specifications, and production quantity.

The cover should remain a protective component and should not unintentionally interfere with the load-bearing or vibration-isolation function of the actual foot pad. Clearance around mounting hardware should also allow convenient installation, removal, and servicing.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Controlled injection moulding processes help maintain accurate cover dimensions, mounting clearances, retaining features, and consistent production quality.

In-House Mould Manufacturing

Mould development can be coordinated with the exact foot pad, mounting hardware, and generator base-frame geometry.

OEM & ODM Manufacturing

Customized foot pad covers can be manufactured according to OEM drawings, samples, existing foot-pad dimensions, or generator-specific requirements.

Quality Assurance

Dimensional inspection, visual checks, assembly-fit testing, and retention checks help maintain reliable component quality.

Cost-Effective Manufacturing

Integrated mould manufacturing and injection moulding support helps streamline customized foot pad cover production for prototype and volume requirements.

Frequently Asked Questions

1. What is a Generator Plastic Foot Pad Cover used for?

It provides protective and finishing coverage around a generator foot pad or its mounting area while maintaining the required clearances for normal operation.

2. Does the plastic cover carry the generator's main load?

The cover is generally designed as a protective component rather than the primary load-bearing element. The actual foot pad and structural frame are responsible for carrying the intended generator load.

3. Can the foot pad cover be customized?

Yes. The cover profile, dimensions, mounting openings, retaining features, material, colour, and frame interface can be customized according to the generator design.

4. Which plastic materials can be used for the foot pad cover?

PP, ABS, HDPE, PC+ABS, and Nylon/PA may be considered depending on impact, vibration, temperature, moisture, chemical exposure, and dimensional requirements.

5. Can Renovator Appliances Ltd manufacture both the mould and the plastic foot pad cover?

Yes. The service can include mould design and manufacturing followed by injection moulding of the Generator Plastic Foot Pad Cover according to the required specifications.
