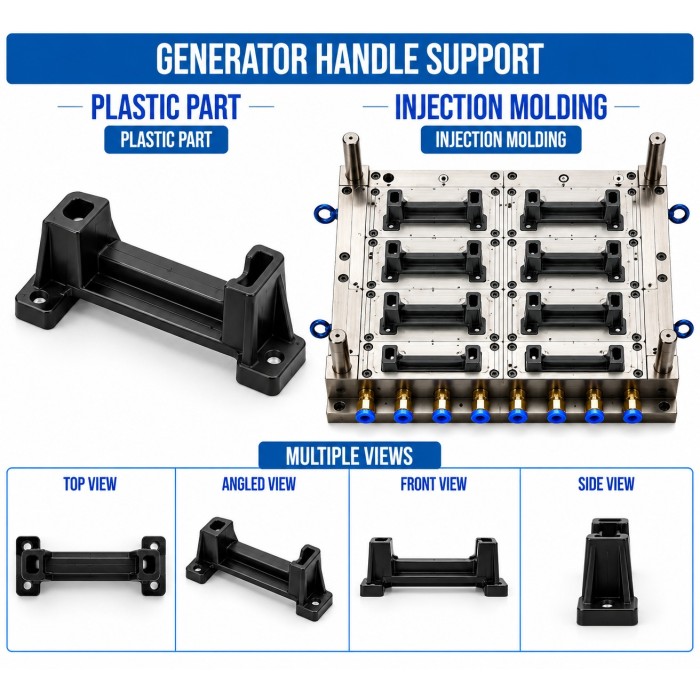

Generator Plastic Handle Support Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd manufactures Generator Plastic Handle Support Mould and Moulding Service for structural support components used to connect and reinforce generator handles. The support helps maintain the handle's position relative to the generator frame or housing and provides a stable interface for handle mounting hardware, hinges, pins, or fasteners.

The mould is developed according to the handle tube or grip dimensions, mounting-hole positions, support geometry, load requirements, wall thickness, reinforcement ribs, and available clearance around the generator frame. The design is optimized for repeated handling, vibration, and the mechanical forces generated when the generator is lifted, moved, or repositioned.

Key Features

• Precision-moulded handle support geometry

• Accurate handle and frame interface

• Reinforced mounting areas for improved structural stability

• Precise holes for bolts, pins, or fastening hardware

• Controlled wall thickness for strength and dimensional stability

• Integrated ribs and gussets where required

• Proper clearance for handle movement where applicable

• Secure alignment with generator frame or housing

• Smooth edges for safer handling

• Suitable for customized OEM generator designs

Industrial Applications

Manufacturing Process

1. Product Design & Development

The Generator Plastic Handle Support is designed according to the handle profile, tube diameter, mounting position, expected handling load, generator frame structure, and required movement. Particular attention is given to the mounting-hole locations and load-bearing areas to ensure proper alignment with the handle and frame.

2. Plastic Mould Design

The mould is designed to reproduce the support profile, mounting holes, handle interface, locating features, ribs, gussets, clips, and other functional details. Reinforcement is incorporated around highly loaded mounting points where required. Draft angles, gate placement, cooling, and ejection are optimized for stable moulding.

3. Mould Manufacturing

The mould is manufactured using suitable mould steel such as P20, H13, or S136 according to production volume, plastic material, surface requirements, and expected mould life. CNC machining, EDM, drilling, polishing, fitting, and mould trials are carried out to achieve the required cavity and core accuracy.

4. Injection Moulding

The selected plastic material is melted and injected into the mould cavity under controlled processing conditions. Injection pressure, filling speed, holding pressure, and cooling time are controlled to produce consistent support dimensions, mounting-hole accuracy, and structural geometry.

5. Finishing & Assembly Preparation

After moulding, gates and flash are removed and edges are finished as required. Mounting holes, handle interfaces, locating features, and reinforcement areas are checked before the component is prepared for assembly with the generator handle and frame.

6. Quality Inspection

Finished handle supports are inspected for overall dimensions, mounting-hole position, handle fitment, wall thickness, rib geometry, frame compatibility, surface quality, and assembly alignment.

Raw Materials

The final material should be selected according to handle load, lifting forces, vibration, impact, temperature, environmental exposure, and required service life.

Quality Control

Renovator Appliances Ltd checks the Generator Plastic Handle Support for:

• Overall dimensions and support profile

• Handle tube or grip interface

• Mounting-hole diameter and position

• Bolt or pin clearance

• Frame mounting alignment

• Wall thickness consistency

• Rib and gusset geometry

• Structural mounting areas

• Handle movement clearance where applicable

• Warpage and dimensional deformation

• Flash, sink marks, short shots, and other moulding defects

• Surface finish and edge quality

• Assembly fitment and alignment

• Load or functional testing where required

Buyer Guide

Before ordering a Generator Plastic Handle Support mould and moulding service, buyers should provide the handle dimensions, tube diameter, mounting-hole size, fastening method, generator frame geometry, expected handling load, movement requirements, material preference, colour, and production quantity.

For lifting or carrying applications, the support should be designed according to the actual static and dynamic loads generated during handling. Reinforcement around mounting holes, ribs, gussets, and fastening interfaces may be required depending on the generator weight and handle configuration.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Controlled injection moulding processes support accurate handle interfaces, mounting holes, reinforcement features, and repeatable production quality.

In-House Mould Manufacturing

Mould development can be coordinated with the handle dimensions, frame geometry, fastening arrangement, and structural requirements.

OEM & ODM Manufacturing

Customized handle supports can be manufactured according to OEM drawings, samples, handle specifications, or generator frame designs.

Quality Assurance

Dimensional inspection, handle-fit checks, mounting alignment, visual inspection, and functional testing where required help maintain reliable support components.

Cost-Effective Manufacturing

Integrated mould manufacturing and injection moulding support helps streamline customized handle support production for prototype and volume requirements.

Frequently Asked Questions

1. What is a Generator Plastic Handle Support used for?

It provides a mounting and structural interface between the generator handle and the generator frame or housing, helping maintain handle alignment and support.

2. Can the handle support withstand generator lifting loads?

The support can be designed for the specified handling load, but the final design and material must be validated according to the generator weight, handle configuration, mounting method, and applicable safety requirements.

3. Can the handle support be customized?

Yes. The support can be customized according to handle diameter, mounting holes, frame geometry, fastening hardware, reinforcement requirements, material, and generator configuration.

4. Which plastic materials are suitable for a handle support?

Nylon/PA, glass-filled Nylon/PA, POM, ABS, and PC+ABS may be considered depending on load, impact, vibration, temperature, dimensional stability, and mechanical requirements.

5. Can Renovator Appliances Ltd manufacture both the mould and the plastic handle support?

Yes. The service can include mould design and manufacturing followed by injection moulding of the Generator Plastic Handle Support according to the required specifications.
