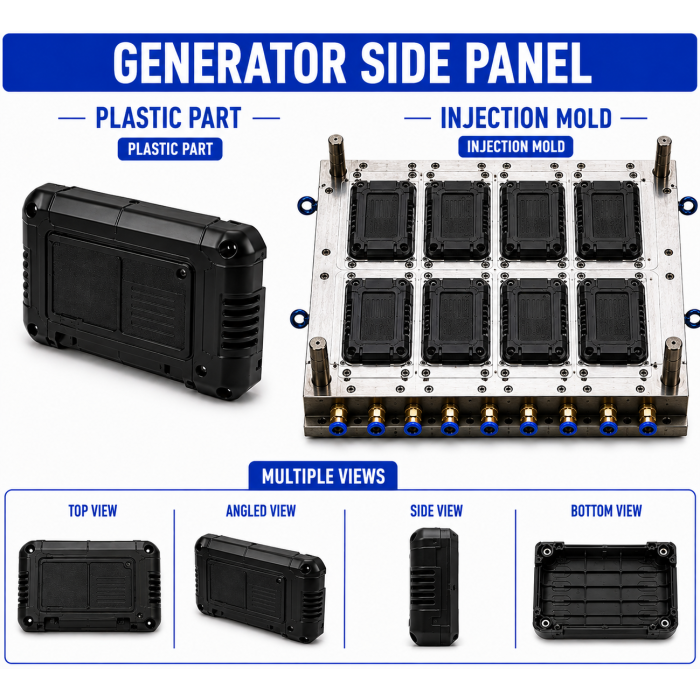

Generator Plastic Side Panel Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd provides Generator Plastic Side Panel Mould and Moulding Service for manufacturing precision-moulded side panels used on generator enclosure assemblies. The side panel forms the lateral section of the generator housing and helps protect internal components from external contact, dust, accidental impact, and environmental exposure while maintaining the required enclosure structure and appearance.

The mould is developed according to the generator's side profile, overall enclosure dimensions, mounting arrangement, ventilation requirements, internal clearances, and interfaces with the front, rear, top, and base sections. Proper tooling design supports accurate panel fitment, controlled wall thickness, dimensional stability, and consistent production quality.

Key Features

• Application-specific mould design for generator side panel production

• Accurate profile matching with the generator enclosure

• Provision for ventilation slots or airflow openings where required

• Mounting holes, screw bosses, clips, and locating features as specified

• Reinforcing ribs for improved panel rigidity

• Controlled wall thickness for dimensional stability

• Proper clearance from engine, wiring, cooling, and other internal components

• Consistent external surface finish

• Accurate alignment with adjoining enclosure panels

• Suitable for OEM, replacement, and customized generator applications

Industrial Applications

Manufacturing Process

1. Product Design & Development

The side panel is developed according to the generator's enclosure dimensions, side profile, mounting locations, required ventilation openings, internal component clearance, and adjoining panel interfaces. Ribs, bosses, clips, cable clearances, and other functional features are incorporated according to the assembly requirements.

2. Plastic Mould Design

The injection mould is designed around the panel geometry with suitable parting lines, draft angles, gate locations, ejector positions, cooling channels, and reinforcement features. Ventilation slots, mounting bosses, screw holes, locating points, and other detailed features are positioned to support accurate moulding and easy demoulding.

3. Mould Manufacturing

The mould is manufactured using suitable mould steel such as P20, H13, or S136 depending on the selected plastic, production quantity, surface-finish requirement, and expected tooling life. Precision machining is performed for the cavity, core, openings, ribs, bosses, and mounting details.

4. Injection Moulding

The selected plastic material is injection moulded under controlled processing conditions. Injection pressure, melt temperature, filling speed, holding pressure, cooling time, and cycle parameters are optimized according to the material and side-panel geometry.

5. Finishing & Assembly Preparation

After moulding, gates and runners are removed as required and the panel is prepared for assembly. Mounting holes, clips, ventilation openings, locating features, and panel edges are checked for proper formation and clean finishing.

6. Quality Inspection

Finished side panels are inspected for overall dimensions, enclosure profile, mounting accuracy, ventilation openings, wall thickness, flatness, warpage, surface appearance, and clearance from internal generator components.

Raw Materials

The final plastic grade is selected according to temperature exposure, vibration, impact, electrical proximity, environmental conditions, flame requirements, and applicable generator specifications.

Quality Control

Renovator Appliances Ltd checks moulded side panels for critical dimensional and functional characteristics, including:

• Overall length, width, height, and panel profile

• Fitment with the generator enclosure

• Alignment with front and rear panels

• Mounting-hole and boss positions

• Clip and locating-feature dimensions

• Ventilation opening size and position

• Internal clearance from engine and other components

• Wall thickness consistency

• Rib and reinforcement geometry

• Panel flatness and warpage

• Surface finish and appearance

• Flash, sink marks, short shots, and other moulding defects

• Compatibility with adjoining enclosure components

Functional assembly and fitment checks can be performed according to customer-specific quality requirements.

Buyer Guide

Before ordering a Generator Plastic Side Panel Mould and Moulding Service, buyers should provide a 3D CAD model, engineering drawing, physical sample, or dimensional specifications wherever available. Important requirements include:

• Generator enclosure dimensions

• Side panel profile and curvature

• Mounting-hole locations

• Ventilation requirements

• Internal component clearances

• Fastening method

• Required wall thickness

• Plastic material and grade

• Surface finish and colour

• Expected production quantity

• Assembly and fitment specifications

Accurate enclosure and internal-component information helps optimize the mould design and ensure proper panel integration.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Our injection moulding capabilities support consistent production of generator side panels with controlled processing and repeatable dimensional quality.

In-House Mould Manufacturing

In-house tooling capabilities allow better control over cavity accuracy, cooling, ejection, ventilation features, and panel-specific mould details.

OEM & ODM Manufacturing

We support customized generator side panels based on customer drawings, CAD models, samples, enclosure designs, and assembly requirements.

Quality Assurance

Dimensional, visual, material, and assembly checks help maintain consistent quality throughout production.

Cost-Effective Manufacturing

Optimized mould design, appropriate cavity configuration, material selection, and controlled injection moulding processes support economical production for development and commercial quantities.

Frequently Asked Questions

1. What is a Generator Plastic Side Panel?

It is a moulded plastic enclosure component installed on the side of a generator to provide protective coverage, enclosure integration, and a finished external appearance.

2. Can ventilation openings be included in the side panel?

Yes. Ventilation slots, louvers, grilles, or other airflow openings can be incorporated according to the generator's cooling and airflow requirements.

3. Can the side panel include mounting bosses and clips?

Yes. Screw bosses, mounting holes, snap-fits, clips, locating ribs, and other fastening features can be integrated into the mould according to the enclosure design.

4. Which plastics can be used for a generator side panel?

ABS, PP, HIPS, PC+ABS, engineering-grade plastics, and flame-retardant plastics may be considered depending on the required strength, temperature performance, impact resistance, flame requirements, and operating environment.

5. Can the side panel be customized for different generator models?

Yes. The mould and moulded component can be customized according to the generator model, enclosure dimensions, mounting arrangement, ventilation requirements, material specifications, and production requirements.
