Hair Straightener Plastic Temperature Dial Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

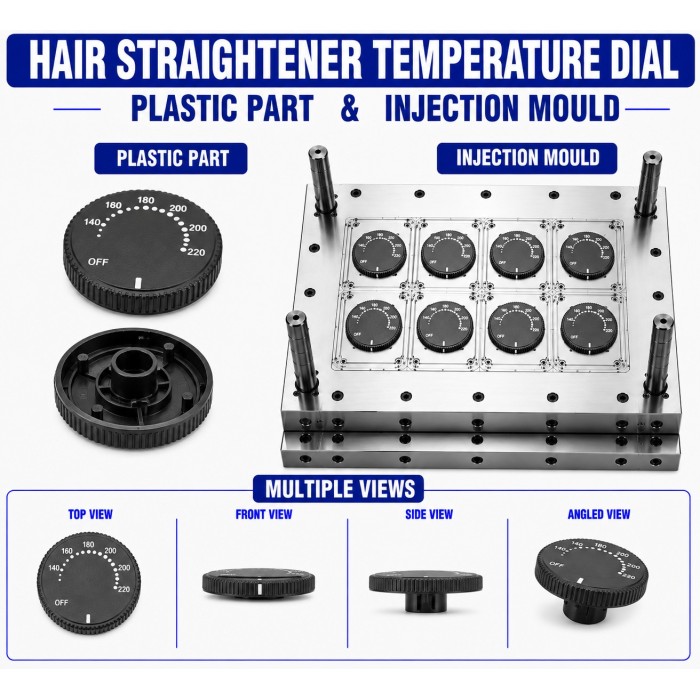

The Hair Straightener Plastic Temperature Dial is a precision-moulded plastic control component used to operate and adjust the temperature setting of a hair straightener. Designed for integration with the appliance's internal temperature-control mechanism, the dial provides an accessible user interface for selecting the desired heat level.

Renovator Appliances Ltd manufactures Hair Straightener Plastic Temperature Dial Mould and Moulding Service for OEMs, hair styling appliance manufacturers, personal care product companies, and private-label brands. The dial can be developed with an ergonomic gripping profile, accurate rotational interface, indicator markings, locating features, and suitable dimensions according to the appliance design.

The injection mould can be engineered for consistent production of temperature dials with repeatable dimensions, smooth rotation, clean edges, and uniform surface appearance. Mould steel, plastic grade, cavity configuration, colour, texture, markings, and production specifications can be customized according to application and production volume.

Key Features

• Precision-moulded plastic temperature dial for hair straighteners

• Designed for temperature adjustment and user control

• Ergonomic outer profile for convenient manual operation

• Can be designed with grooves, ribs, knurling, or textured gripping surfaces

• Accurate internal interface for connection with the temperature-control mechanism

• Suitable rotational movement can be incorporated according to the control assembly

• Can include indicator arrows, reference marks, numbers, or temperature symbols

• Controlled dimensions for consistent assembly and operation

• Smooth edges and customized surface finish for improved appearance

• Available in customized colours and textures

• Suitable plastic material can be selected according to application requirements

• Single-cavity and multi-cavity mould options available

• Suitable for OEM, ODM, customized, and bulk production

Industrial Applications

Manufacturing Process

1. Product Design & Development
The dial dimensions, rotational interface, shaft connection, gripping profile, indicator position, operating requirements, and appliance housing interface are reviewed. The component can be developed according to the customer's control mechanism.

2. Plastic Mould Design
A precision injection mould is designed with suitable cavity geometry, draft angles, parting lines, gates, runners, cooling channels, and ejection arrangements. Critical rotational and mating features are considered during mould development.

3. Mould Manufacturing
The mould is manufactured using suitable tool steel such as P20, H13, or S136 according to production requirements. CNC machining, EDM, drilling, polishing, fitting, and mould trials are performed as required.

4. Injection Moulding
The selected thermoplastic material is heated and injected into the mould cavity under controlled processing conditions. After cooling, the mould opens and the temperature dial is ejected.

5. Finishing & Assembly Preparation
The moulded dial is checked for gate marks, flash, sink marks, surface defects, and edge quality. Additional trimming or finishing can be performed where required.

6. Quality Inspection
Finished dials are checked for dimensions, rotational interface, fitment, indicator alignment, surface quality, and production consistency before packaging.

Raw Materials

Material selection can be customized according to rotational requirements, mechanical performance, operating conditions, electrical environment, appearance, and production specifications.

Quality Control

• Raw Material Inspection: Plastic grade and incoming material quality are checked according to production requirements.

• Mould Inspection: Cavity condition, mould alignment, ejection system, and critical mould dimensions are inspected.

• Dimensional Inspection: Overall dimensions, shaft interface, control features, and mating areas are checked.

• Visual Inspection: Components are inspected for flash, sink marks, short shots, cracks, warpage, scratches, and other visible defects.

• Fitment & Functional Inspection: The dial can be checked with the corresponding temperature-control mechanism for proper fitment and intended rotational operation.

• Packaging Inspection: Finished dials are appropriately packed to minimize scratches, deformation, contamination, or transportation damage.

Buyer Guide

Before ordering a Hair Straightener Plastic Temperature Dial Mould and Moulding Service, buyers should consider:

1. Dial Dimensions: Provide the overall diameter, height, shaft/interface dimensions, and critical mating dimensions.

2. Control Mechanism: Specify the type of internal temperature-control mechanism and required rotational interface.

3. Gripping Profile: Specify grooves, ribs, knurling, texture, or other features required for comfortable operation.

4. Markings & Appearance: Provide temperature numbers, symbols, indicator markings, colour, surface texture, and finish requirements.

5. Production Quantity: Select single-cavity or multi-cavity tooling according to expected production volume and target output.

Why Choose Renovator Appliances Ltd?

• Advanced Injection Moulding Facility: Suitable manufacturing capabilities for precision plastic control components.

• In-House Mould Manufacturing: Integrated mould development and manufacturing support for customized temperature dial designs.

• OEM & ODM Manufacturing: Supports customer-specific dimensions, materials, colours, markings, and finishes.

• Quality Assurance: Dimensional, visual, fitment, and process inspections help maintain consistent component quality.

• Cost-Effective Manufacturing: Optimized moulding solutions for prototype development, repeat production, and bulk OEM requirements.

Frequently Asked Questions

1. What is a Hair Straightener Plastic Temperature Dial?
It is a moulded plastic control component used to adjust or select the temperature setting of a hair straightener through an internal temperature-control mechanism.

2. Which materials can be used for the temperature dial?
Depending on the application, ABS, PP, HIPS, PC+ABS, PC, PBT, Nylon, Glass-Filled Nylon, or suitable flame-retardant plastic can be considered.

3. Can the temperature dial be customized according to our design?
Yes. Diameter, height, gripping profile, rotational interface, colour, texture, indicator markings, numbers, symbols, and surface finish can be customized.

4. Can temperature markings or indicator features be included in the dial design?
Yes. The moulded dial can be designed with suitable indicator arrows, reference marks, numbers, grooves, or other visual control features according to the product design.

5. Can Renovator Appliances Ltd manufacture temperature dials in bulk?
Yes. The component can be manufactured for prototype development, small-batch production, and bulk OEM requirements according to the required quantity and mould configuration.
