Product Overview

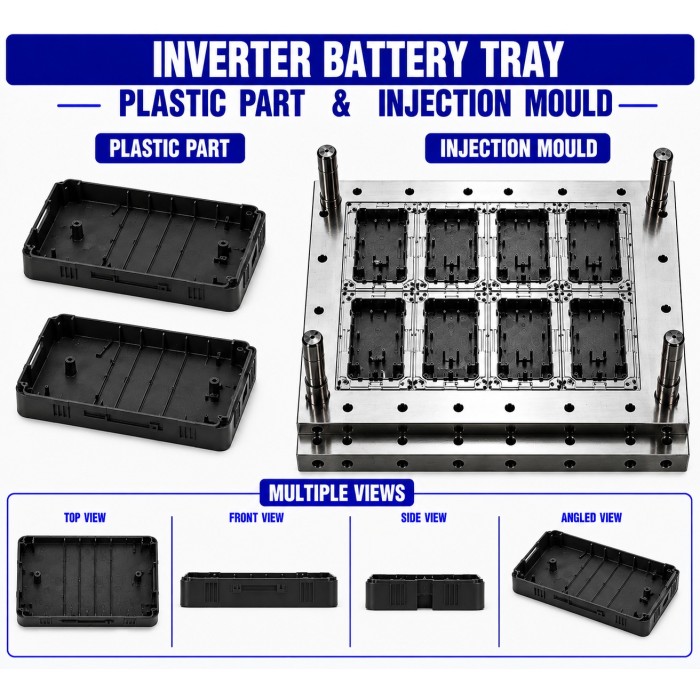

Renovator Appliances Ltd. provides Inverter Plastic Battery Tray Mould and Moulding Service for manufacturing accurately moulded battery tray components used in inverters, UPS systems, battery backup units, and related power equipment. The battery tray is designed to support and position the battery within the equipment enclosure while helping maintain proper clearance, stability, and mounting alignment.

The battery tray can be developed according to the battery dimensions, weight, enclosure space, mounting arrangement, cable-routing requirements, ventilation needs, and required load-bearing capacity. Injection moulding enables consistent production of trays with controlled dimensions, reinforcing ribs, mounting bosses, locating features, drainage provisions, and cable-clearance areas where required.

Key Features

• Application-specific battery tray design

• Stable support and positioning for the battery

• Reinforcing ribs for improved structural rigidity

• Accurate mounting and locating features

• Designed according to battery dimensions and weight

• Provision for cable clearance and routing where required

• Controlled wall thickness for consistent moulding

• Suitable for different colours and surface finishes

• Integrated bosses, clips, tabs, or fixing points where required

• Suitable for OEM, ODM, and customized inverter applications

Industrial Applications

Manufacturing Process

1. Product Design & Development

The battery tray is developed according to the battery's length, width, height, weight, mounting arrangement, enclosure dimensions, and installation requirements. Load-bearing areas, reinforcing ribs, support surfaces, locating features, cable clearances, wall thickness, and draft angles are considered during product development.

2. Plastic Mould Design

The injection mould is designed according to the battery tray geometry and required production volume. Cavity and core configuration, parting line, gate location, runner system, cooling channels, ejection arrangement, and shrinkage allowances are considered to achieve consistent dimensional accuracy.

3. Mould Manufacturing

The mould can be manufactured using suitable tool steel such as P20 Steel, H13 Steel, or S136 Steel, depending on production volume, mould life, surface finish, and component requirements. CNC machining, EDM, grinding, polishing, fitting, and mould trials are performed as required.

4. Injection Moulding

The selected plastic material is heated and injected into the mould cavity under controlled processing conditions. Injection pressure, melt temperature, holding pressure, cooling time, and cycle time are adjusted according to the selected material and battery tray geometry.

5. Finishing & Assembly Preparation

After moulding, gates and excess material are removed. The battery tray is checked for mounting holes, support surfaces, ribs, locating features, cable clearances, and other assembly-related details.

6. Quality Inspection

Finished battery trays are inspected for dimensional accuracy, warpage, surface quality, structural features, moulding defects, and proper fitment with the battery and intended inverter enclosure.

Raw Materials

The final material should be selected according to battery weight, mechanical loading, operating temperature, vibration, chemical exposure, electrical environment, and enclosure requirements. For applications where the tray may be exposed to battery electrolyte or other chemicals, material compatibility should be validated for the actual operating conditions.

Quality Control

• Raw Material Inspection: Plastic grade, colour, and material consistency are checked before production.

• Mould Inspection: Cavity, core, parting surfaces, cooling system, and ejection system are inspected.

• Dimensional Inspection: Tray dimensions, support surfaces, mounting points, ribs, bosses, and critical interfaces are checked.

• Visual Inspection: Components are checked for flash, sink marks, short shots, burn marks, warpage, scratches, and other visible defects.

• Fitment & Functional Inspection: The tray can be checked with the battery, mounting hardware, cable arrangement, and inverter enclosure for proper fitment and positioning.

• Packaging Inspection: Finished trays are packed to minimize deformation, scratches, dust, and handling damage during storage and transportation.

Buyer Guide

When sourcing an Inverter Plastic Battery Tray Mould and Moulding Service, buyers should provide the required drawing, 3D model, sample, battery dimensions and weight, enclosure dimensions, mounting details, material preference, colour, surface finish, cable-routing requirements, and estimated production quantity where available.

For new product development, special attention should be given to the battery's weight, support points, load distribution, vibration conditions, fixing arrangement, ventilation, cable clearance, and chemical exposure. The selected plastic grade should be validated for the actual mechanical, thermal, electrical, and environmental conditions.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Suitable injection moulding capabilities support consistent production of battery trays with repeatable dimensions, structural features, and surface quality.

In-House Mould Manufacturing

Mould development and manufacturing can be coordinated according to the required tray geometry, battery dimensions, production volume, and structural requirements.

OEM & ODM Manufacturing

Customized inverter battery trays can be developed and manufactured according to customer drawings, samples, specifications, or product-development requirements.

Quality Assurance

Raw materials, moulds, dimensions, mounting features, structural geometry, appearance, and fitment can be inspected throughout the manufacturing process.

Cost-Effective Manufacturing

Optimized mould design and controlled injection moulding processes can support economical production for development quantities as well as larger-volume OEM requirements.

Frequently Asked Questions

1. What is an Inverter Plastic Battery Tray?

It is a moulded plastic support component designed to hold and position a battery inside an inverter, UPS, or related electrical equipment.

2. Which plastic materials can be used for a battery tray?

ABS, PP, HIPS, PC+ABS, Nylon, Glass-Filled Nylon, PBT, and suitable flame-retardant plastics can be considered according to the required load, rigidity, temperature, vibration, and environmental conditions.

3. Can the battery tray be customized according to battery size and weight?

Yes. The tray dimensions, support structure, reinforcing ribs, mounting points, locating features, cable clearances, and material can be developed according to the battery and inverter enclosure specifications.

4. Which steel can be used for the battery tray mould?

P20 Steel, H13 Steel, or S136 Steel can be selected depending on production volume, required mould life, surface finish, and component requirements.

5. Can Renovator Appliances Ltd. provide both mould making and moulding?

Yes. Renovator Appliances Ltd. can support mould development, mould manufacturing, and injection moulding for customized inverter plastic battery trays, subject to the required design and production specifications.
