Product Overview

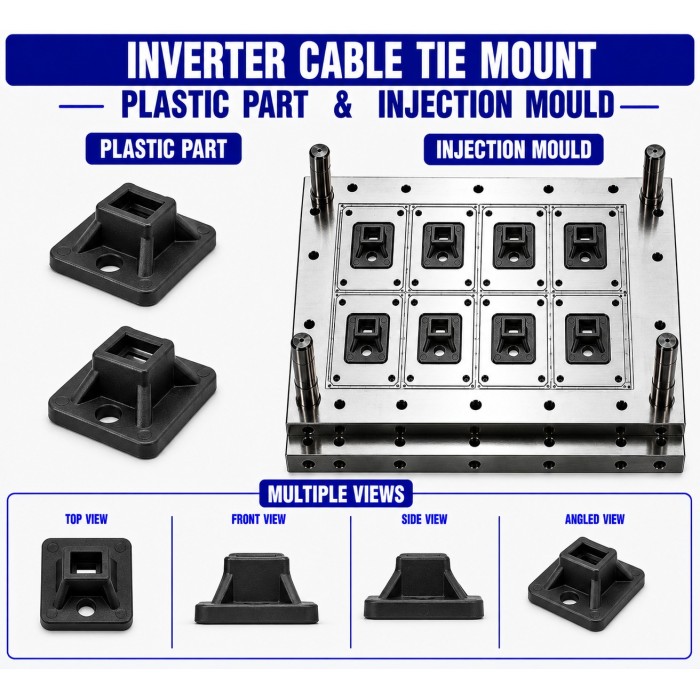

The Inverter Plastic Cable Tie Mount is a compact plastic component designed to provide a secure fixing point for cable ties used to organize, route, and retain electrical wires and cables inside inverter assemblies. It helps maintain a neat wiring layout and reduces unwanted cable movement during assembly and operation.

Renovator Appliances Ltd. provides Inverter Plastic Cable Tie Mount Mould and Moulding Service for OEM and customized inverter applications. The component can be developed with suitable mounting holes, slots, locking features, ribs, and cable-tie passages according to the required wire-routing arrangement and assembly design.

The mould and moulding process can be optimized for dimensional consistency, secure retention, smooth edges, and reliable integration with the inverter enclosure or internal structural components.

Key Features

• Compact plastic cable management and fixing component

• Provides a dedicated mounting point for cable ties

• Helps organize and route internal inverter wiring

• Can be designed with screw, clip, snap-fit, or adhesive mounting arrangements

• Accurate cable-tie slot or passage geometry

• Reinforcing ribs can be incorporated where required

• Smooth edges help reduce the possibility of cable insulation damage

• Suitable for customized dimensions and mounting configurations

• Can be manufactured in different colours according to OEM requirements

• Suitable for high-volume injection moulding production

• Designed for consistent fitment and repeatable production quality

Industrial Applications

Manufacturing Process

1. Product Design & Development

The cable tie mount is developed according to the inverter's internal wiring layout, available mounting space, cable-tie dimensions, fixing method, and assembly requirements. Mounting features, wall thickness, ribs, and cable-tie passages are considered during product development.

2. Plastic Mould Design

A precision injection mould is designed according to the final component geometry. Proper consideration is given to cavity layout, parting line, ejection system, gates, cooling channels, and shrinkage compensation to support consistent production.

3. Mould Manufacturing

The mould is manufactured using suitable tool steel such as P20 Steel, H13 Steel, or S136 Steel, depending on production volume, material requirements, surface finish, and expected mould life. CNC machining, EDM, grinding, polishing, and tool fitting are carried out as required.

4. Injection Moulding

Selected plastic material is heated and injected into the mould cavity under controlled processing conditions. Injection pressure, temperature, cooling time, and cycle parameters are adjusted according to the selected material and component design.

5. Finishing & Assembly Preparation

After moulding, the parts are inspected and processed for removal of excess gate material or flash where required. The cable-tie passage, mounting area, and fixing features are checked for proper assembly compatibility.

6. Quality Inspection

Finished cable tie mounts are inspected for dimensions, appearance, mounting accuracy, cable-tie fitment, material consistency, and overall moulding quality before packing and dispatch.

Raw Materials

Material selection should be finalized according to the inverter's operating temperature, electrical environment, mechanical loading, cable-routing requirements, and applicable material specifications.

Quality Control

Renovator Appliances Ltd. can implement multiple inspection stages to maintain consistent quality of the Inverter Plastic Cable Tie Mount:

• Raw Material Inspection: Verification of material grade and batch consistency.

• Mould Inspection: Checking cavity condition, mould alignment, ejection, and cooling performance.

• Dimensional Inspection: Verification of mounting holes, slots, wall thickness, overall dimensions, and cable-tie passage.

• Visual Inspection: Checking for flash, sink marks, short moulding, burn marks, cracks, and surface defects.

• Fitment & Functional Inspection: Checking cable-tie insertion, retention, mounting, and compatibility with the intended assembly.

• Packaging Inspection: Proper packing to prevent deformation, contamination, or damage during transportation.

Buyer Guide

When sourcing an Inverter Plastic Cable Tie Mount, buyers should provide the required component dimensions, cable-tie size, mounting method, cable quantity, mounting location, expected operating conditions, material requirement, colour, and annual production quantity.

For mould development, providing an existing sample, 2D drawing, 3D CAD file, or product specification can help in determining the appropriate mould design and manufacturing approach. If the component is installed close to heat-generating or electrical parts, the plastic grade should be validated against the actual operating conditions.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

We provide injection moulding solutions for small precision components as well as larger plastic assemblies, supporting consistent production for OEM requirements.

In-House Mould Manufacturing

Our mould manufacturing capability supports customized cable tie mount designs and helps coordinate product development with tooling requirements.

OEM & ODM Manufacturing

We support OEM and customized manufacturing based on customer drawings, samples, CAD models, and application-specific requirements.

Quality Assurance

Inspection of dimensions, appearance, fitment, material consistency, and moulding quality helps maintain repeatable production standards.

Cost-Effective Manufacturing

Proper mould design, cavity planning, material selection, and injection moulding process optimization can help achieve economical production for both prototype and volume requirements.

Frequently Asked Questions

1. What is an Inverter Plastic Cable Tie Mount?

It is a plastic mounting component used to provide a fixing point for cable ties, helping secure and organize electrical wires and cables inside inverter assemblies.

2. Which plastic materials can be used for this component?

PP, ABS, Nylon, Glass-Filled Nylon, PBT, PC+ABS, and suitable flame-retardant plastics can be considered depending on the mechanical, thermal, and electrical requirements.

3. Can the cable tie mount be customized?

Yes. Dimensions, mounting holes, slots, cable-tie passages, fixing features, ribs, colour, and other design parameters can be customized according to the OEM application.

4. Which mould materials can be used?

P20 Steel, H13 Steel, and S136 Steel can be considered depending on production volume, material characteristics, surface finish, and required mould durability.

5. Can Renovator manufacture both the mould and plastic cable tie mounts?

Yes. Renovator Appliances Ltd. can provide mould development and injection moulding services for customized Inverter Plastic Cable Tie Mount requirements, subject to the final design and technical specifications.
