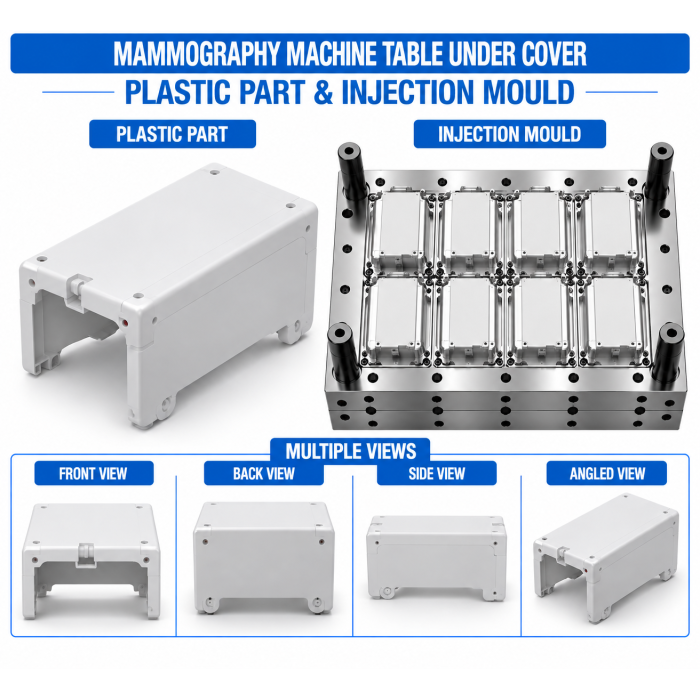

Mammography Machine Plastic Table Under Cover Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd manufactures precision Plastic Injection Moulds and provides injection moulding solutions for Mammography Machine Plastic Table Under Cover components used on the underside of designated mammography table assemblies. The under cover provides a finished protective enclosure for selected structural and internal areas beneath the table while helping maintain clearances around supporting components, cables, and mechanisms.

The mould is developed according to the table dimensions, underside profile, mounting arrangement, wall thickness, internal component clearance, cable-routing requirements, service-access requirements, and adjoining panel geometry. The cover can be customized with mounting bosses, screw holes, locating ribs, clips, snap-fits, access openings, cable passages, ventilation provisions, and reinforcing features according to the equipment design.

Key Features

• Precision injection moulding for mammography table under covers

• Customized underside profile according to table geometry

• Accurate fitment with adjoining table panels

• Protective enclosure for designated underside components

• Integrated mounting bosses and locating features

• Screw-fit, clip-fit, or snap-fit assembly options

• Cable-routing and connector clearance provisions

• Service-access openings where required

• Ventilation provisions where required

• Reinforcing ribs for improved rigidity

• Controlled wall thickness for dimensional stability

• Smooth and easy-to-clean external surface

• Customized colour, texture, and surface finish

• Suitable for prototype and volume production

• Supports OEM and ODM manufacturing requirements

Industrial Applications

Manufacturing Process

1. Product Design & Development

The Mammography Machine Plastic Table Under Cover is developed according to the customer's CAD drawing, 3D model, physical sample, complete table assembly, or equipment specifications. The design is reviewed for table dimensions, underside profile, mounting locations, wall thickness, cable routing, service access, internal component clearance, and adjoining-cover interfaces.

Particular attention is given to the clearance between the under cover and moving, structural, or serviceable components located beneath the table.

2. Plastic Mould Design

The injection mould is designed around the under-cover profile and required assembly features. Suitable parting lines, draft angles, gate locations, cooling channels, ejector arrangements, cores, inserts, and shrinkage allowances are incorporated.

Mounting bosses, screw holes, locating ribs, clips, snap-fits, access openings, cable passages, and ventilation features are positioned according to the complete table design. Balanced filling and cooling are considered to reduce warpage, sink marks, and dimensional variation.

3. Mould Manufacturing

Mould components are manufactured using suitable mould steels such as P20 Steel, H13 Steel, or S136 Steel, depending on production volume, expected mould life, selected plastic material, surface-finish requirements, and component complexity.

CNC machining, EDM, drilling, grinding, polishing, precision fitting, and mould assembly are used to achieve accurate cavity geometry and consistent surface quality.

4. Injection Moulding

The selected plastic material is processed under controlled injection moulding conditions. Injection temperature, filling speed, pressure, holding pressure, cooling time, and cycle time are adjusted according to the selected plastic grade and under-cover geometry.

Controlled processing helps maintain cover dimensions, underside profile accuracy, mounting-feature alignment, opening dimensions, and consistent surface quality.

5. Finishing & Assembly Preparation

After moulding, the table under covers are inspected for flash, gate marks, sink marks, short shots, sharp edges, warpage, and surface imperfections. Mounting bosses, screw holes, locating features, clips, snap-fits, cable passages, access openings, and ventilation features are checked before assembly.

Where required, the moulded cover can be prepared for labels, identification markings, surface decoration, or installation with the designated mammography table components.

6. Quality Inspection

Finished Mammography Machine Plastic Table Under Cover components are checked for overall dimensions, underside profile, mounting alignment, adjoining-panel fitment, internal clearance, cable clearance, access provisions, and surface finish.

Trial assembly with the designated table structure can be performed to verify secure retention, accurate alignment, consistent panel gaps, and clearance from moving and serviceable components.

Raw Materials

The final plastic grade should be selected according to mechanical requirements, operating temperature, cleaning and disinfectant exposure, impact resistance, dimensional stability, surface requirements, flame-performance requirements, and applicable medical-device specifications.

Quality Control

Renovator Appliances Ltd performs quality checks throughout mould development and injection moulding production. Inspection can include:

• Plastic material and grade verification

• Applicable material certification review

• Mould cavity dimensional inspection

• Overall under-cover dimensions

• Underside profile inspection

• Wall-thickness consistency

• Mounting-boss position

• Screw-hole dimensions where applicable

• Locating-rib accuracy

• Clip and snap-fit accuracy

• Access-opening dimensions where applicable

• Cable-passage dimensions where applicable

• Ventilation-opening dimensions where applicable

• Internal component clearance

• Moving-part clearance

• Adjoining-panel interface dimensions

• Panel gap and alignment inspection

• Warpage and deformation inspection

• Sink-mark and short-shot inspection

• Flash and burr inspection

• Surface-finish inspection

• Colour consistency

• Table under-cover trial assembly

• Fitment and retention verification

• Cleaning-surface inspection

• Batch-to-batch dimensional consistency

Buyer Guide

When ordering a Mammography Machine Plastic Table Under Cover Mould and Moulding Service, buyers should provide the complete table design, CAD drawing, 3D model, physical sample, or relevant assembly specifications. Important requirements include:

• Table dimensions

• Under-cover length and width

• Underside profile

• Adjoining-panel dimensions

• Mounting-hole locations

• Screw, clip, or snap-fit requirements

• Required wall thickness

• Internal component clearance

• Moving-part clearance

• Cable-routing requirements

• Cable-entry and connector locations

• Ventilation requirements where applicable

• Service-access requirements

• Surface texture and finish

• Plastic material and grade

• Colour requirements

• Cleaning and disinfectant requirements

• Expected production quantity

• Required mould life

• Prototype or mass-production requirements

• OEM or ODM assembly requirements

For mammography equipment, the Table Under Cover should be validated as part of the complete medical-device assembly for mechanical fitment, moving-part clearance, cleaning and disinfectant exposure, thermal conditions, material compatibility, electrical or EMC considerations where applicable, and applicable medical-device and regulatory requirements.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Renovator Appliances Ltd provides controlled plastic injection moulding for customized mammography table covers requiring accurate profiles, mounting features, clearances, and consistent surface quality.

In-House Mould Manufacturing

In-house mould manufacturing provides better control over under-cover geometry, mounting features, cable openings, cooling, ejection, surface finish, and dimensional accuracy.

OEM & ODM Manufacturing

Customized Mammography Machine Plastic Table Under Cover moulds and moulded components can be developed according to customer drawings, samples, table assemblies, and equipment specifications.

Quality Assurance

Dimensional, material, visual, assembly, clearance, and fitment checks help maintain consistent under-cover quality and reliable integration with the mammography table.

Cost-Effective Manufacturing

Integrated mould manufacturing and injection moulding support efficient production for prototype development, pilot production, and regular commercial quantities.

Frequently Asked Questions

1. What is a Mammography Machine Plastic Table Under Cover?

It is a moulded plastic enclosure component fitted beneath a designated mammography table to cover selected structural and internal areas while maintaining required component clearances.

2. Can the table under cover be customized according to a specific machine?

Yes. The dimensions, underside profile, mounting features, cable passages, access openings, ventilation provisions, adjoining-panel interfaces, and clearances can be customized according to the table design.

3. Can the under cover include snap-fit and screw mounting features?

Yes. Screw bosses, mounting holes, locating ribs, clips, snap-fits, and other assembly features can be incorporated according to the required construction.

4. Which plastic materials can be used for the table under cover?

ABS, PC+ABS, PC, PP, HIPS, PBT, flame-retardant ABS, flame-retardant PC+ABS, and suitable engineering or medical-grade plastics can be considered according to mechanical, thermal, dimensional, cleaning, surface-finish, and equipment requirements.

5. Can Renovator Appliances Ltd manufacture both the mould and moulded table under cover?

Yes. Renovator Appliances Ltd can provide mould design, mould manufacturing, injection moulding, prototype development, quality inspection, and volume production support for customized Mammography Machine Plastic Table Under Cover components.
