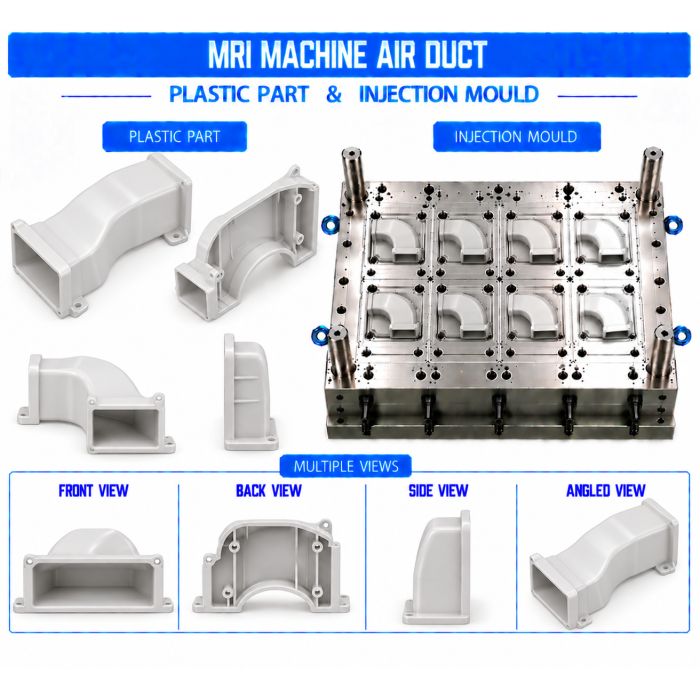

MRI Machine Plastic Air Duct Mould and Moulding Services | Renovator Appliances Ltd

Introduction

Renovator Appliances Ltd manufactures MRI Machine Plastic Air Duct Moulds and provides precision injection moulding services for airflow-routing components used in MRI equipment. The air duct is designed to direct and distribute airflow through designated pathways while integrating with fans, ventilation openings, housings, and other applicable cooling assemblies.

Custom air ducts can be developed according to OEM drawings, 3D CAD models, product samples, airflow-path requirements, mounting arrangements, connection points, and surface-finish specifications. The moulding process supports customized components as well as repeat production requirements.

Key Features

• Precision-engineered air duct design
• Controlled airflow routing
• Accurate inlet and outlet geometry
• Custom duct length, diameter, and profile
• Smooth internal airflow surfaces
• Integrated mounting bosses and fixing points
• Provision for clips and connection features
• Consistent wall thickness
• Lightweight construction
• Customized colours available
• Smooth, matte, or textured external finish
• Accurate dimensional fitment
• Suitable for prototype and production quantities

Industrial Applications

Manufacturing Process

1. Product Design & CAD Analysis – Review of duct geometry, airflow path, inlet/outlet dimensions, and assembly requirements.
2. DFM & Mould Feasibility – Analysis of wall thickness, draft angles, bends, ribs, bosses, mounting points, and ejection requirements.
3. Precision Mould Design – Development of the injection mould according to the approved air duct geometry.
4. Mould Manufacturing – Precision machining and finishing of mould components.
5. Material Selection – Selection of suitable engineering thermoplastic based on mechanical, dimensional, and environmental requirements.
6. Injection Moulding – Controlled injection of plastic material into the mould cavity.
7. Cooling & Ejection – Controlled cooling followed by safe component ejection.
8. Trimming & Finishing – Removal of gates, runners, and excess material.
9. Dimensional Inspection – Checking inlet/outlet dimensions, mounting points, duct profile, and critical interfaces.
10. Final Quality Inspection – Visual, dimensional, and assembly-fitment inspection before packaging and dispatch.

Raw Materials

Depending on the component design and application requirements, suitable materials may include:

• ABS
• PC-ABS
• Polypropylene (PP)
• PBT
• Polycarbonate (PC)
• Nylon for application-specific requirements
• Other suitable engineering thermoplastics
• Customized OEM plastic compounds

The final material should be selected according to the required mechanical strength, dimensional stability, airflow requirements, surface finish, environmental conditions, cleaning requirements, and equipment-specific specifications.

Quality Control

Renovator Appliances Ltd checks MRI Machine Plastic Air Ducts for:

• Overall dimensional accuracy
• Inlet and outlet dimensions
• Duct profile and alignment
• Internal airflow passage
• Wall-thickness consistency
• Mounting-hole positions
• Boss and clip dimensions
• Connection and joining features
• Warpage and deformation
• Flash and moulding defects
• Surface finish
• Material consistency
• Overall assembly fitment

Buyer Guide

Before ordering an MRI Machine Plastic Air Duct mould or moulding service, buyers should provide:

• 3D CAD drawing or 2D engineering drawing
• Existing air duct sample, if available
• Overall duct dimensions
• Inlet and outlet dimensions
• Required airflow path
• Fan or housing connection details
• Required material specification
• Mounting and fixing details
• Required production quantity
• Colour requirement
• Surface-finish requirement
• Required mould cavity configuration
• OEM dimensional specifications
• Applicable component-specific requirements

Frequently Asked Questions

1. Can Renovator Appliances Ltd manufacture custom MRI air ducts?

Yes. Custom air ducts can be manufactured according to CAD drawings, product samples, dimensions, airflow requirements, and OEM specifications.

2. Can the air duct geometry be customized?

Yes. The length, width, height, diameter, bends, inlet/outlet profile, mounting features, and connection points can be customized according to the approved design.

3. Which materials can be used?

Suitable options may include ABS, PC-ABS, PP, PBT, PC, Nylon, and other engineering thermoplastics, depending on the component requirements.

4. Can mounting bosses and connection features be integrated?

Yes. Mounting bosses, clips, locating features, connection flanges, ribs, and fixing points can be incorporated into the mould design.

5. Can the internal duct surface be designed for controlled airflow?

Yes. The internal geometry can be developed according to the required airflow path, connection arrangement, dimensional clearances, and equipment design.

6. Can multi-cavity moulds be manufactured?

For suitable smaller duct components, multi-cavity moulding can be considered. Larger or complex air ducts are generally evaluated according to component size, mould complexity, and production volume.

7. Does Renovator Appliances Ltd provide both mould manufacturing and injection moulding?

Yes. Renovator Appliances Ltd provides custom mould development and plastic injection moulding services for OEM and contract manufacturing requirements.

Why Choose Renovator Appliances Ltd?

• Precision plastic injection mould design and manufacturing
• Customized MRI equipment component development
• OEM and contract manufacturing support
• Suitable engineering plastic selection
• Accurate airflow duct geometry and housing fitment
• Controlled injection moulding processes
• Dimensional and visual quality inspection
• Customized dimensions, colours, and finishes
• Prototype and production support
• Technical assistance during mould development
• Support for complex duct and airflow components
• Manufacturing support from Greater Noida and Delhi NCR for customers across India
