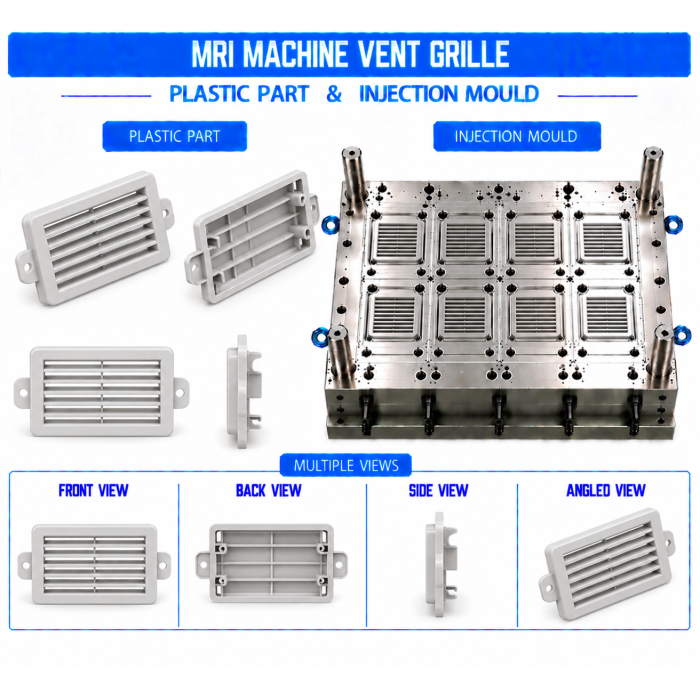

MRI Machine Plastic Vent Grille Mould and Moulding Services | Renovator Appliances Ltd

Introduction

Renovator Appliances Ltd manufactures MRI Machine Plastic Vent Grille Moulds and provides precision injection moulding services for ventilation and airflow components used in MRI equipment. The vent grille is designed to provide a structured ventilation opening while helping protect internal areas and maintain a clean, integrated appearance with the surrounding equipment housing.

Custom vent grilles can be developed according to OEM drawings, 3D CAD models, product samples, grille pattern, opening dimensions, mounting arrangements, clips, ribs, and surface-finish requirements. The moulding process supports customized components as well as repeat production requirements.

Key Features

• Precision-engineered vent grille design
• Controlled ventilation openings
• Custom grille pattern and opening geometry
• Accurate fitment with MRI equipment housing
• Integrated mounting clips, bosses, or fixing points
• Uniform grille ribs and openings
• Consistent wall thickness
• Smooth, matte, textured, or customized surface finish
• Customized colours available
• Good dimensional stability
• Lightweight construction
• Suitable for prototype and production quantities

Industrial Applications

Manufacturing Process

1. Product Design & CAD Analysis – Review of grille pattern, opening dimensions, housing interface, and mounting requirements.
2. DFM & Mould Feasibility – Analysis of wall thickness, grille ribs, draft angles, clips, bosses, and ejection requirements.
3. Precision Mould Design – Development of the injection mould according to the approved vent grille geometry.
4. Mould Manufacturing – Precision machining and finishing of mould components.
5. Material Selection – Selection of suitable engineering thermoplastic according to mechanical, dimensional, and environmental requirements.
6. Injection Moulding – Controlled injection of plastic material into the mould cavity.
7. Cooling & Ejection – Controlled cooling followed by safe component ejection.
8. Trimming & Finishing – Removal of gates, runners, and excess material.
9. Dimensional Inspection – Inspection of grille openings, rib dimensions, mounting points, and overall profile.
10. Final Quality Inspection – Visual, dimensional, and fitment inspection before packaging and dispatch.

Raw Materials

Depending on the component design and application requirements, suitable materials may include:

• ABS
• PC-ABS
• Polycarbonate (PC)
• PP
• PBT
• Nylon for application-specific requirements
• Other suitable engineering thermoplastics
• Customized OEM plastic compounds

The final material should be selected according to the required mechanical strength, dimensional stability, surface finish, environmental conditions, cleaning requirements, and equipment-specific specifications.

Quality Control

Renovator Appliances Ltd checks MRI Machine Plastic Vent Grilles for:

• Overall dimensional accuracy
• Grille opening dimensions
• Rib thickness and spacing
• Ventilation pattern consistency
• Mounting-hole positions
• Clip and locking features
• Housing fitment
• Wall-thickness consistency
• Warpage and deformation
• Flash and moulding defects
• Surface finish
• Colour consistency
• Overall visual quality

Buyer Guide

Before ordering an MRI Machine Plastic Vent Grille mould or moulding service, buyers should provide:

• 3D CAD drawing or 2D engineering drawing
• Existing vent grille sample, if available
• Overall component dimensions
• Required grille pattern and opening size
• Mounting and fixing details
• Required material specification
• Required production quantity
• Colour requirement
• Surface-finish requirement
• Required mould cavity configuration
• OEM dimensional specifications
• Applicable component-specific requirements

Frequently Asked Questions

1. Can Renovator Appliances Ltd manufacture custom MRI vent grilles?

Yes. Custom vent grilles can be manufactured according to CAD drawings, product samples, dimensions, grille patterns, and OEM specifications.

2. Can the grille pattern be customized?

Yes. The opening size, rib shape, rib spacing, grille pattern, and overall geometry can be customized according to the approved design.

3. Which materials can be used?

Suitable options may include ABS, PC-ABS, PC, PP, PBT, Nylon, and other engineering thermoplastics, depending on the component requirements.

4. Can mounting clips and bosses be integrated?

Yes. Mounting bosses, clips, locating features, screw-fixing points, and other retention features can be incorporated into the mould design.

5. Can multi-cavity moulds be manufactured?

Yes. Multi-cavity moulds can be considered for smaller vent grille components where the production volume and component geometry are suitable.

6. Can the vent grille be customized in colour and finish?

Yes. Colour, matte finish, gloss finish, texture, and other surface requirements can be customized according to the approved design.

7. Does Renovator Appliances Ltd provide both mould manufacturing and injection moulding?

Yes. Renovator Appliances Ltd provides custom mould development and plastic injection moulding services for OEM and contract manufacturing requirements.

Why Choose Renovator Appliances Ltd?

• Precision plastic injection mould design and manufacturing
• Customized MRI equipment component development
• OEM and contract manufacturing support
• Suitable engineering plastic selection
• Accurate grille pattern and housing fitment
• Controlled injection moulding processes
• Dimensional and visual quality inspection
• Customized dimensions, colours, and finishes
• Prototype and production support
• Multi-cavity moulding options for suitable components
• Technical assistance during mould development
• Manufacturing support from Greater Noida and Delhi NCR for customers across India
