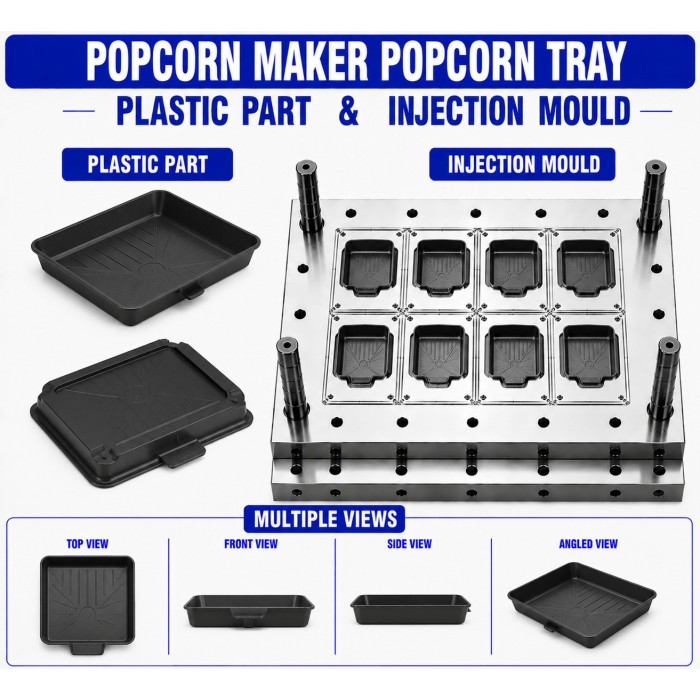

Popcorn Maker Plastic Popcorn Tray Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Popcorn Maker Plastic Popcorn Tray Mould and Moulding Service is designed for manufacturing precision-moulded plastic popcorn trays used in popcorn makers and popcorn dispensing appliances. The tray can provide a dedicated area for collecting, holding, serving, or temporarily storing popped popcorn during appliance operation.

The popcorn tray can be customized according to the appliance structure, required tray capacity, available installation space, popcorn flow path, mounting arrangement, and removal requirements. The design can incorporate raised edges, locating features, handles, retaining clips, drainage or cleaning provisions, and smooth internal surfaces according to the application.

For trays intended for direct food contact, a suitable food-contact grade material should be selected and validated according to the applicable requirements. Injection moulding enables consistent dimensions, smooth surfaces, controlled wall thickness, and repeatable production for OEM and bulk manufacturing requirements.

Key Features

• Precision-moulded plastic popcorn tray for popcorn maker applications

• Designed for collecting and holding popped popcorn

• Customized tray dimensions and capacity

• Smooth internal surface for easier cleaning and handling

• Raised edges to help retain popcorn within the tray

• Integrated locating, mounting, or retaining features

• Snap-fit, slide-fit, clip-fit, or removable installation options

• Rounded corners and controlled edges where required

• Controlled wall thickness for consistent moulding

• Customized colour, texture, and surface finish

• Suitable for OEM and customized appliance production

• Food-contact grade material options for applicable direct-contact designs

• Consistent dimensional repeatability for bulk manufacturing

• Material selection according to food-contact, thermal, mechanical, and cleaning requirements

Industrial Applications

Manufacturing Process

1. Product Design & Development

The tray dimensions, capacity, wall thickness, popcorn collection area, mounting arrangement, removal method, edge height, and available installation space are established during product development. CAD drawings, technical drawings, or physical samples can be used to define the required geometry.

2. Plastic Mould Design

The injection mould is designed according to the tray geometry, selected material, production quantity, and required surface finish. Draft angles, parting line, gate location, cooling arrangement, ejection system, shrinkage, corner radii, mounting features, and critical dimensions are considered during mould development.

3. Mould Manufacturing

The mould can be manufactured using suitable mould steels such as P20 Steel, H13 Steel, or S136 Steel. Steel selection depends on expected production volume, mould life, material characteristics, dimensional requirements, and surface-finish expectations.

4. Injection Moulding

The selected plastic material is heated and injected into the mould cavity under controlled processing conditions. Filling, packing, cooling, and ejection parameters are controlled to achieve consistent tray dimensions, wall thickness, surface quality, and mounting features.

5. Finishing & Assembly Preparation

After moulding, runners or gates are removed where required. The trays are inspected for flash, sharp edges, warpage, sink marks, surface defects, and other moulding conditions before being prepared for installation or use.

6. Quality Inspection

Finished popcorn trays are inspected for dimensions, capacity-related geometry, surface finish, mounting features, fitment, appearance, and overall production consistency.

Raw Materials

For direct food-contact applications, the selected resin must be specifically suitable for the intended food-contact conditions, temperature, cleaning process, and applicable regulatory requirements. General-purpose plastic should not automatically be assumed suitable for direct food contact.

Quality Control

• Raw Material Inspection: Material grade, colour, and incoming material condition are checked.

• Mould Inspection: Cavity surfaces, parting line, cooling system, ejection mechanism, and tray-forming geometry are inspected.

• Dimensional Inspection: Overall dimensions, wall thickness, depth, edge height, and critical tolerances are verified.

• Capacity Inspection: Tray geometry and usable collection area are checked against the approved design.

• Surface Inspection: Internal and external surfaces are checked for smoothness, moulding defects, scratches, sink marks, and other imperfections.

• Edge Inspection: Tray edges and corners are checked for flash, sharp edges, and proper finishing.

• Mounting Inspection: Clips, locating tabs, slots, handles, bosses, and other attachment features are verified.

• Fitment Inspection: The tray is checked with the corresponding popcorn maker housing, chute, or collection area.

• Food-Contact Validation: Where direct food contact is intended, material suitability and applicable requirements are verified according to the intended application.

• Thermal Inspection: Temperature exposure and dimensional stability are evaluated according to the actual operating environment.

• Visual Inspection: Warpage, colour variation, surface defects, and contamination are evaluated.

• Packaging Inspection: Finished trays are packed to reduce scratches, deformation, contamination, and handling damage.

Buyer Guide

Before ordering a Popcorn Maker Plastic Popcorn Tray Mould and Moulding Service, buyers should provide:

1. Required tray dimensions and geometry.

2. Required tray capacity and collection area.

3. CAD drawing, technical drawing, or physical sample.

4. Details of the popcorn flow or discharge path.

5. Required mounting and removal arrangement.

6. Required edge height and retention features.

7. Operating temperature and proximity to heating components.

8. Whether the tray will have direct food contact.

9. Required food-contact grade and material specification where applicable.

10. Required colour, texture, gloss level, or surface finish.

11. Cleaning and maintenance requirements.

12. Expected production quantity and mould life requirement.

13. Prototype or pre-production sample requirements.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Renovator Appliances Ltd provides precision plastic injection moulding solutions for customized popcorn maker trays and food-appliance components.

In-House Mould Manufacturing

Mould development can be coordinated according to the required tray geometry, capacity, mounting arrangement, material, production volume, and surface-finish requirements.

OEM & ODM Manufacturing

Customized popcorn trays can be manufactured according to customer CAD files, technical drawings, physical samples, dimensions, and specific appliance requirements.

Quality Assurance

Dimensional, surface, fitment, material, and application-related inspections help maintain consistent quality throughout moulding and production.

Cost-Effective Manufacturing

Optimized mould design and repeatable injection moulding processes support economical production for suitable medium- and high-volume manufacturing requirements.

Frequently Asked Questions

1. What is Popcorn Maker Plastic Popcorn Tray Mould and Moulding Service?

It is a customized mould manufacturing and plastic injection moulding service for producing trays used to collect, hold, serve, or temporarily store popped popcorn.

2. Which material is suitable for a popcorn tray?

Food-contact grade PP, high-temperature PP, HDPE, suitable food-contact engineering plastics, and other validated food-contact materials can be considered for direct food-contact applications. Non-food-contact materials such as ABS or PC+ABS may be considered where the design does not require direct food contact.

3. Can the popcorn tray be customized according to the appliance?

Yes. The tray size, depth, capacity, shape, mounting arrangement, edge height, locating features, and removal mechanism can be customized according to the popcorn maker design.

4. Can the tray be designed for easy cleaning and removal?

Yes. Smooth internal surfaces, rounded corners, suitable edge geometry, removable mounting arrangements, and other cleaning-friendly features can be incorporated according to the appliance design.

5. Can Renovator Appliances Ltd manufacture customized popcorn tray moulds for OEM production?

Yes. Customized moulds and moulded popcorn trays can be developed for OEM and bulk production according to approved CAD files, drawings, samples, material specifications, and production requirements.
