Product Overview

Renovator Appliances Ltd manufactures high-quality Room Heater Plastic Back Panels and provides complete Plastic Injection Mould Design, Mould Manufacturing, and Moulding Services for electric room heaters, fan heaters, ceramic heaters, portable heating appliances, and customized air heating equipment.

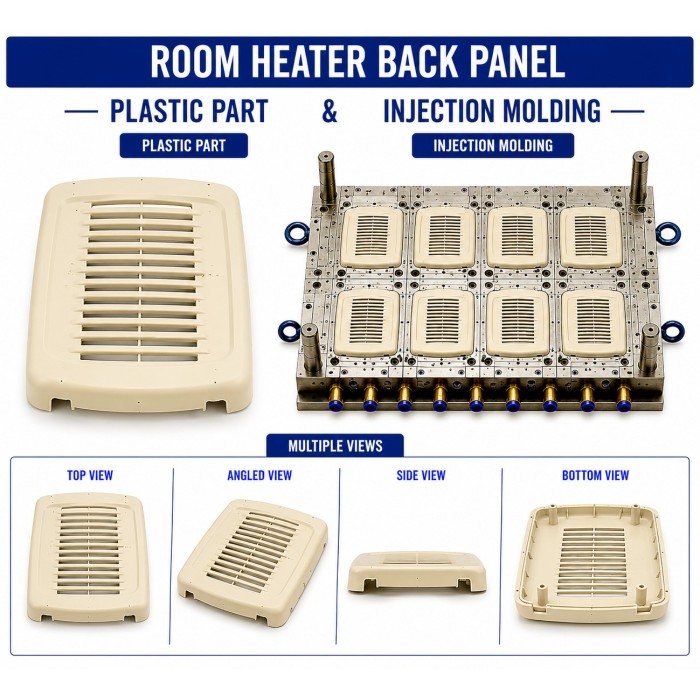

The Room Heater Plastic Back Panel is a protective and structural plastic component fitted on the rear side of a room heater. It helps cover internal components and can provide openings or mounting provisions for ventilation, power cords, switches, wiring, fan or motor arrangements, filters, screws, clips, and other components according to the appliance design.

Manufactured using advanced plastic injection moulding technology, our Room Heater Plastic Back Panels are designed for dimensional accuracy, structural strength, proper ventilation, secure assembly, lightweight construction, and consistent surface quality. We offer OEM and customized manufacturing solutions according to customer drawings, CAD files, 3D models, samples, dimensions, and technical specifications.

Key Features

Protective Rear Structure

Designed to provide a protective barrier around internal heater components while contributing to the overall appliance enclosure.

Precision Assembly Fit

Manufactured with accurately positioned mounting holes, clips, ribs, bosses, screw towers, and locating features for proper installation.

Ventilation-Compatible Design

Can incorporate air inlet openings, ventilation slots, cable passages, and other openings according to the heater's design requirements.

Lightweight Construction

Plastic construction helps reduce overall appliance weight while maintaining suitable structural performance.

Durable & Heat-Resistant Material Options

Suitable plastic grades can be selected according to operating temperature, impact requirements, dimensional stability, and appliance conditions.

OEM Customization

Available in customized dimensions, shapes, ventilation patterns, cable openings, mounting arrangements, colours, textures, and branding.

Industrial Applications

Our Room Heater Plastic Back Panels are widely used in:

Manufacturing Process

Our Room Heater Plastic Back Panels are manufactured using controlled and precision plastic injection moulding technology.

Product Design & Development

The back panel is developed using customer drawings, CAD files, 3D models, or existing samples. Important design parameters may include overall dimensions, wall thickness, ventilation openings, cable passages, mounting holes, screw towers, clips, ribs, bosses, and internal component clearances.

Mould Design & Manufacturing

A precision injection mould is designed according to the back panel geometry, production quantity, selected plastic material, shrinkage allowance, and machine specifications. Advanced tooling processes may include:

• CNC machining

• EDM machining

• Wire EDM cutting

• Surface grinding

• Precision polishing

• Insert machining

• Drilling and fitting

• Advanced mould finishing

Material Selection

A suitable plastic grade is selected based on impact resistance, dimensional stability, operating temperature, structural requirements, appearance, and application conditions.

Injection Moulding Production

Plastic resin is heated and converted into molten plastic inside the injection moulding machine. The molten material is then injected into the mould cavity under controlled pressure, temperature, and speed to form the required back panel.

Cooling & Ejection

The mould cooling system helps solidify the plastic component and control shrinkage. After sufficient cooling, the mould opens and the back panel is ejected through the mould ejection mechanism.

Finishing & Quality Inspection

The moulded back panel undergoes trimming, visual inspection, dimensional measurement, ventilation opening checking, mounting feature inspection, surface inspection, and assembly fitment verification.

Mould Manufacturing Process

Renovator Appliances Ltd provides complete Room Heater Plastic Back Panel Mould Manufacturing Services.

Mould Design

The mould is engineered with appropriate cavity and core configuration, parting line, gate location, runner system, cooling channels, draft angles, ejection arrangement, ventilation features, ribs, bosses, screw towers, and shrinkage allowance.

CNC Machining

Mould plates, cavity components, core components, inserts, and other tooling parts are precision-machined using CNC equipment according to the approved design.

EDM & Wire EDM

EDM and Wire EDM processes may be used for detailed openings, complex housing profiles, intricate internal features, and areas requiring high machining accuracy.

Cooling System

Cooling channels are designed to provide controlled mould temperature and support consistent dimensions and stable injection moulding cycles.

Ejection System

The ejection mechanism is designed to safely remove the back panel without damaging ventilation slots, cable openings, mounting bosses, clips, ribs, or visible surfaces.

Mould Assembly & Trial

After machining and finishing, the mould components are assembled and aligned. Trial moulding is carried out to evaluate filling, cooling, ejection, shrinkage, warpage, dimensions, surface appearance, and assembly fitment.

Final Mould Approval

Necessary mould corrections, modifications, and finishing operations are completed before the mould is approved for regular production.

Raw Materials

The appropriate raw material depends on the heater's operating temperature, impact requirements, structural strength, dimensional stability, appearance, and application requirements.

Final material selection should be based on the actual heater operating conditions, component location, product design, and applicable technical or safety specifications.

Quality Control

Every Room Heater Plastic Back Panel can undergo systematic quality inspection to maintain dimensional accuracy, structural integrity, ventilation compatibility, and assembly consistency.

• Raw material verification

• Overall dimension inspection

• Wall thickness inspection

• Ventilation opening measurement

• Air inlet inspection

• Cable passage verification

• Mounting hole measurement

• Screw tower inspection

• Clip and snap-fit verification

• Rib and boss inspection

• Surface finish inspection

• Colour consistency checking

• Warpage inspection

• Flash and burr inspection

• Sink mark inspection

• Short-shot inspection

• Crack and deformation inspection

• Assembly fitment verification

• Final visual quality inspection

Production Capacity

Production capacity depends on mould cavity count, injection moulding machine capacity, component weight, plastic material, cycle time, cooling requirements, mould design, and overall production efficiency.

For example, a 2-cavity mould operating with a 35-second cycle time can theoretically produce approximately 206 pieces per hour before accounting for machine downtime, material handling, quality inspection, mould maintenance, and other production factors.

Actual production capacity is finalized according to the back panel design, mould cavity configuration, selected material, injection moulding machine specifications, and required production volume.

Buyer Guide

Before ordering a Room Heater Plastic Back Panel Mould and Moulding Service, buyers should provide the available product and technical information for accurate mould and component development.

Recommended specifications include:

• Product drawing or 3D CAD model

• Existing back panel sample, if available

• Overall panel dimensions

• Wall thickness

• Air inlet dimensions

• Ventilation slot pattern

• Cable or power cord opening dimensions

• Motor or fan mounting details, if applicable

• Mounting hole locations

• Screw tower dimensions

• Clip and snap-fit requirements

• Rib and boss locations

• Required plastic material

• Colour requirements

• Surface finish requirements

• Monthly or annual production quantity

• Required mould cavity count

• Room heater model or assembly details

Providing complete specifications helps determine the appropriate mould construction, material, machine capacity, cavity configuration, and manufacturing process.

Why Choose Renovator Appliances Ltd?

• Precision Injection Mould Manufacturing

• OEM & ODM Plastic Components

• Advanced Plastic Injection Moulding Technology

• Customized Room Heater Back Panel Manufacturing

• Precision Mould Design & Development

• Customized Ventilation and Cable Openings

• Suitable Engineering Plastic Material Selection

• Customized Surface Finish Options

• Strict Quality Control System

• Prototype and Bulk Production Support

• High Production Capability

• Competitive Manufacturing Solutions

• Reliable Delivery Support

Renovator Appliances Ltd provides an integrated manufacturing solution covering product development, mould design, mould manufacturing, mould trials, plastic injection moulding, quality inspection, and bulk production for customized Room Heater Plastic Back Panels.

Frequently Asked Questions (FAQ)

Q1. What is a Room Heater Plastic Back Panel?

A Room Heater Plastic Back Panel is a plastic panel fitted on the rear side of a room heater. It helps protect internal components and can include ventilation openings, cable passages, mounting points, clips, and other design features.

Q2. Which materials are used for Room Heater Plastic Back Panels?

Common material options include ABS, PP, PC+ABS, HIPS, flame-retardant ABS, and engineering-grade thermoplastics, depending on required heat resistance, impact strength, dimensional stability, structural performance, and application requirements.

Q3. Can Room Heater Plastic Back Panels be customized?

Yes. We provide OEM customization according to dimensions, ventilation openings, cable passages, mounting holes, screw towers, ribs, clips, colour, texture, surface finish, branding, and customer drawings or samples.

Q4. How are Room Heater Plastic Back Panels manufactured?

They are manufactured using precision plastic injection moulding technology. Plastic resin is melted and injected into a specially designed mould cavity, followed by cooling, ejection, finishing, dimensional inspection, and assembly verification.

Q5. Do you manufacture moulds for Room Heater Plastic Back Panels?

Yes. Renovator Appliances Ltd provides complete plastic injection mould design, mould manufacturing, mould trials, mould correction, and injection moulding services for Room Heater Plastic Back Panels according to OEM and customized production requirements.
