Set Top Box Plastic Rubber Foot Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

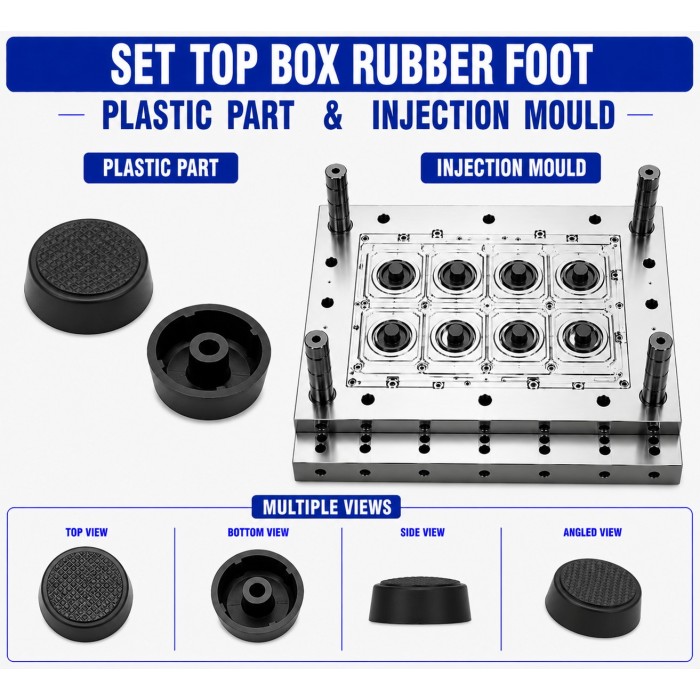

Set Top Box Plastic Rubber Foot Mould and Moulding Service is designed for manufacturing foot components used at the bottom of digital set top boxes, DTH receivers, cable TV receivers, IPTV devices, and other compact electronic equipment. The rubber foot helps provide stability, maintain clearance between the appliance and supporting surface, reduce direct contact with the surface, and can help minimize sliding or movement during normal use.

Depending on the product design, the foot can be developed as a flexible rubber or elastomer component, a rigid plastic foot with an elastomer contact surface, or another suitable non-slip design. The geometry can include locating pins, retaining lips, grooves, mounting bosses, push-fit features, or adhesive-contact surfaces according to the set top box base design.

Moulding enables consistent dimensions, repeatable fitment, controlled flexibility, and uniform contact geometry suitable for OEM and bulk production requirements.

Key Features

• Precision-moulded rubber or elastomer foot component

• Designed for set top box base assemblies

• Provides stable contact with the supporting surface

• Helps reduce sliding and unwanted movement

• Helps maintain clearance between the enclosure and surface

• Flexible or semi-flexible contact surface options

• Customized height, diameter, shape, and hardness

• Locating pins, grooves, retaining lips, or push-fit features can be incorporated

• Adhesive mounting or mechanical retention options

• Suitable for different enclosure base designs

• Customized colour and surface finish options

• Suitable for OEM, ODM, and bulk production

• Can be developed from CAD drawings, samples, or technical specifications

Industrial Applications

Manufacturing Process

1. Product Design & Development

The rubber foot is developed according to the set top box base dimensions, mounting location, required height, contact area, retention method, appliance weight, and supporting surface. CAD drawings, 3D models, samples, or technical specifications can be used for development.

2. Rubber / Elastomer Mould Design

The mould is designed according to the required foot geometry, material flexibility, hardness, mounting features, retention profile, and contact surface. Cavity layout, parting line, material flow, venting, and demoulding requirements are considered during mould development.

3. Mould Manufacturing

The mould can be manufactured using suitable mould steel such as P20 Steel, H13 Steel, or S136 Steel, depending on the selected elastomer, production quantity, surface requirements, and expected mould life. Precision machining, fitting, polishing, and mould trials are carried out before production.

4. Rubber / Elastomer Moulding

The selected rubber or elastomer material is processed and moulded under controlled temperature, pressure, and curing or forming conditions appropriate to the material. Processing parameters are adjusted according to the material grade and component geometry.

5. Finishing & Assembly Preparation

After moulding, excess flash or unwanted material is removed. The feet are inspected for surface defects, dimensional consistency, deformation, incomplete filling, and proper formation of mounting or retention features.

6. Quality Inspection

Finished feet are checked for dimensions, hardness or flexibility where specified, mounting fitment, contact geometry, surface quality, retention, and compatibility with the set top box base assembly.

Raw Materials

Material selection should be based on required hardness, flexibility, grip, abrasion resistance, appliance weight, surface type, temperature, environmental exposure, and mounting method.

Quality Control

• Raw Material Inspection: Material grade, hardness, colour, and batch consistency are checked before production.

• Mould Inspection: Cavity condition, mould alignment, venting, parting line, and demoulding features are inspected.

• Dimensional Inspection: Overall height, diameter, thickness, mounting features, and contact dimensions are measured.

• Hardness Inspection: Rubber or elastomer hardness can be checked against the specified requirement where applicable.

• Fitment Inspection: The foot is checked against the set top box base mounting location.

• Retention Inspection: Push-fit, groove, lip, locating pin, or other mechanical retention features are checked.

• Surface Inspection: Flash, air marks, incomplete filling, cracks, deformation, and other visible defects are inspected.

• Contact Inspection: The bottom contact surface is checked for proper formation and uniformity.

• Stability Inspection: The assembled foot arrangement can be evaluated for proper support and surface contact.

• Packaging Inspection: Finished components are protected against deformation, contamination, and surface damage during handling and transportation.

Buyer Guide

Before ordering Set Top Box Plastic Rubber Foot Mould and Moulding Service, buyers should provide:

• Foot dimensions and shape

• Required foot height

• Set top box weight

• Number of feet required per appliance

• Mounting location and base design

• CAD drawing, 3D model, sample, or technical drawing

• Required mounting method

• Push-fit, groove, lip, pin, screw, or adhesive requirements

• Required rubber or elastomer hardness

• Required flexibility and grip

• Supporting surface type

• Abrasion and durability requirements

• Operating temperature and environment

• Material preference

• Colour requirements

• Surface-finish requirements

• Prototype or sample requirements

• Expected production quantity

• Packaging requirements

Providing accurate base dimensions, appliance weight, mounting details, and material requirements helps in developing the appropriate foot geometry and moulding process.

Why Choose Renovator Appliances Ltd?

Customized Foot Mould Development

We support customized rubber foot mould development according to set top box dimensions, mounting locations, appliance weight, and required retention features.

Rubber & Elastomer Moulding Support

Suitable flexible materials such as TPE, TPU, EPDM, silicone rubber, and other elastomeric compounds can be considered according to the application.

Precision Moulded Components

Moulding supports consistent dimensions, controlled flexibility, and repeatable contact geometry for electronic appliance applications.

Quality-Focused Production

Critical characteristics such as dimensions, hardness, mounting fitment, retention, surface quality, and contact geometry are considered during inspection.

OEM & Bulk Production Support

Customized rubber feet can be developed for OEM, ODM, electronics manufacturers, set top box manufacturers, and bulk buyers.

Frequently Asked Questions

1. What is Set Top Box Plastic Rubber Foot Mould and Moulding Service?

It is a customized mould development and moulding service for manufacturing rubber or elastomeric foot components used underneath set top boxes and similar electronic devices.

2. Which materials can be used for a set top box rubber foot?

TPE, TPU, EPDM, silicone rubber, flexible PVC, and suitable rubber compounds can be considered for flexible feet. Rigid plastic materials such as PP, ABS, or Nylon can also be considered where the design requires a rigid foot structure.

3. Can the rubber foot be customized according to the set top box weight?

Yes. The foot dimensions, contact area, hardness, material, and number of feet can be selected according to the appliance weight and required stability. Final performance should be validated under the actual loading and surface conditions.

4. Can the rubber foot include mounting features?

Yes. Locating pins, retaining lips, grooves, push-fit features, adhesive surfaces, and other mounting or retention features can be incorporated according to the set top box base design.

5. Can Renovator Appliances Ltd manufacture customized rubber feet for OEM production?

Yes. Customized rubber or elastomer foot moulds and moulded components can be developed according to OEM drawings, CAD models, samples, material requirements, dimensions, hardness specifications, and production quantities.
