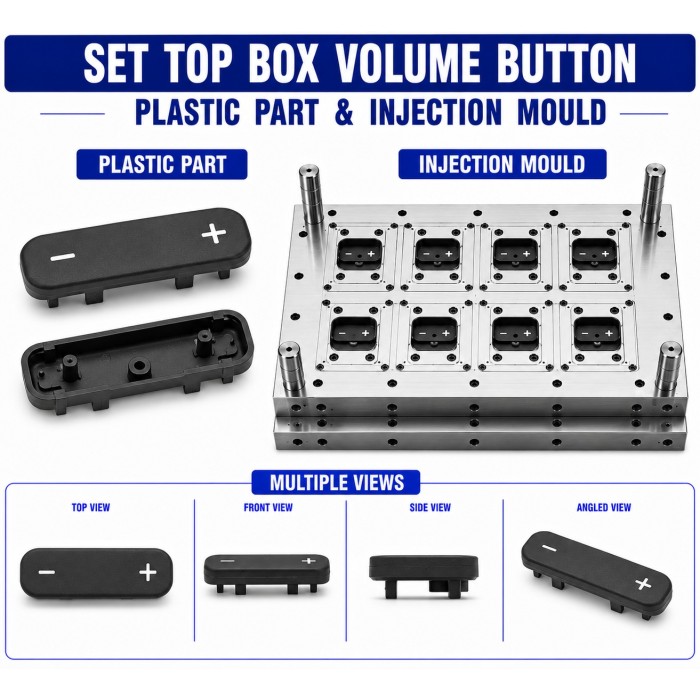

Set Top Box Plastic Volume Button Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Set Top Box Plastic Volume Button Mould and Moulding Service is designed for manufacturing precision plastic volume buttons used on digital set top boxes, DTH receivers, cable TV receivers, IPTV devices, and other electronic entertainment equipment. The volume button provides a user-friendly interface for increasing or decreasing audio volume through the internal switch or control mechanism.

The button can be developed according to the front-panel design, switch dimensions, button travel, mounting arrangement, and required operating feel. It can be manufactured as an individual button, paired volume buttons, or an integrated button assembly depending on the set top box design.

Injection moulding enables consistent button dimensions, controlled pressing surfaces, accurate switch interfaces, smooth movement, and repeatable fitment. Customized colours, surface textures, symbols, markings, and finishes can also be considered according to OEM requirements.

Key Features

• Precision injection-moulded plastic volume button

• Designed for volume up and volume down controls

• Customized according to front-panel and switch dimensions

• Accurate internal switch interface

• Controlled button travel and return movement

• Ergonomic pressing surface

• Locating ribs, guide features, tabs, or snap-fits can be incorporated

• Suitable for individual or integrated button designs

• Customized colour and surface finish options

• Volume symbols or markings can be incorporated where required

• Consistent dimensions for repeatable assembly

• Suitable for OEM, ODM, and bulk production

• Can be developed from CAD drawings, samples, or technical specifications

Industrial Applications

Manufacturing Process

1. Product Design & Development

The volume button is developed according to the front-panel dimensions, internal switch type, button travel, operating force requirements, mounting arrangement, and available space. CAD drawings, 3D models, physical samples, or technical specifications can be used for product development.

2. Plastic Mould Design

The injection mould is designed according to the button geometry, pressing surface, wall thickness, internal locating features, guide surfaces, retention elements, and switch interface. Gate position, parting line, cooling channels, and ejection arrangements are planned for consistent moulding.

3. Mould Manufacturing

The mould can be manufactured using suitable mould steel such as P20 Steel, H13 Steel, or S136 Steel, depending on production quantity, surface-finish requirements, plastic material, and expected mould life. Precision machining, fitting, polishing, and mould trials are performed before production.

4. Injection Moulding

The selected plastic material is heated and injected into the mould cavity under controlled processing conditions. Injection pressure, material temperature, cooling time, and cycle parameters are adjusted according to the selected plastic grade and button geometry.

5. Finishing & Assembly Preparation

After moulding, the volume buttons are trimmed and inspected for flash, gate marks, sink marks, warpage, scratches, and other visible defects. Printing, laser marking, pad printing, or other identification methods can be considered where volume symbols or branding are required.

6. Quality Inspection

Finished buttons are checked for dimensions, switch interface, button travel, fitment, surface appearance, markings, colour consistency, and compatibility with the set top box front-panel assembly.

Raw Materials

Material selection should be based on the required button strength, operating cycles, surface finish, dimensional stability, switch interface, temperature, and application environment.

Quality Control

• Raw Material Inspection: Plastic grade, colour, and batch consistency are checked before production.

• Mould Inspection: Cavity condition, mould alignment, polishing, cooling, and ejection systems are inspected.

• Dimensional Inspection: Button dimensions, wall thickness, locating features, and critical interfaces are measured.

• Switch Interface Inspection: The internal button interface is checked against the specified switch or actuator.

• Button Travel Inspection: Pressing movement, return action, and available clearance are checked according to the approved design.

• Fitment Inspection: The button is checked with the front panel and internal control assembly.

• Surface Inspection: Flash, sink marks, scratches, warpage, gate marks, and other moulding defects are inspected.

• Marking Inspection: Volume symbols, labels, or other markings are checked for position, clarity, and consistency where applicable.

• Visual Inspection: Colour, texture, gloss, and overall appearance are inspected.

• Packaging Inspection: Finished buttons are protected against scratches, deformation, dust, and contamination during handling and transportation.

Buyer Guide

Before ordering Set Top Box Plastic Volume Button Mould and Moulding Service, buyers should provide:

• Volume button length, width, and height

• Front-panel dimensions and design

• Volume switch or actuator specifications

• Button travel requirements

• Required operating feel or actuation requirements

• CAD drawing, 3D model, sample, or technical drawing

• Internal locating and retention arrangement

• Required mounting method

• Required wall thickness

• Plastic material and grade

• Colour requirements

• Surface texture or finish

• Volume symbols or marking requirements

• Printing or branding requirements

• Operating temperature and application environment

• Prototype or sample requirements

• Expected production quantity

• Packaging requirements

Providing accurate switch, front-panel, and button-interface information helps in developing the appropriate mould geometry and injection moulding process.

Why Choose Renovator Appliances Ltd?

Customized Button Mould Development

We support customized volume button mould development according to front-panel dimensions, switch interfaces, button travel, and mounting requirements.

Precision Injection Moulding

Injection moulding enables consistent button dimensions, controlled geometry, and repeatable fitment for electronic control applications.

Material Selection Support

Suitable plastic materials can be considered according to mechanical strength, dimensional stability, appearance, operating cycles, and application environment.

Quality-Focused Production

Critical features such as switch interfaces, button travel, dimensions, surface appearance, markings, and fitment are considered during inspection.

OEM & Bulk Production Support

Customized volume buttons can be developed for OEM, ODM, electronics manufacturers, set top box manufacturers, and bulk buyers.

Frequently Asked Questions

1. What is Set Top Box Plastic Volume Button Mould and Moulding Service?

It is a customized mould development and injection moulding service for manufacturing plastic buttons used to control the audio volume of set top boxes and similar electronic devices.

2. Can the volume button be customized according to the internal switch?

Yes. The internal interface, button travel, locating features, pressing surface, and retention arrangement can be customized according to the specified switch or actuator.

3. Can Volume Up and Volume Down buttons be manufactured?

Yes. Separate Volume Up and Volume Down buttons or an integrated volume-button design can be developed according to the front-panel and control-system requirements.

4. Can volume symbols or markings be added?

Yes. Volume symbols, labels, branding, or other identification marks can be incorporated using suitable printing, marking, or surface-treatment methods according to the design.

5. Can Renovator Appliances Ltd manufacture customized volume buttons for OEM production?

Yes. Customized volume button moulds and injection-moulded components can be developed according to OEM drawings, CAD models, samples, switch specifications, material requirements, and production quantities.
