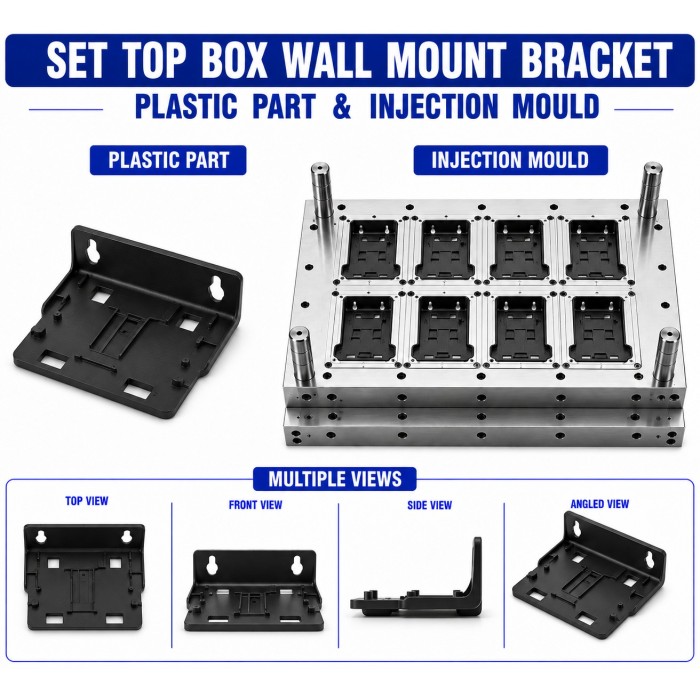

Set Top Box Plastic Wall Mount Bracket Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Set Top Box Plastic Wall Mount Bracket Mould and Moulding Service is designed for manufacturing customized plastic mounting brackets used to install digital set top boxes, DTH receivers, IPTV devices, cable TV receivers, and other compact electronic equipment on walls or suitable mounting surfaces. The bracket provides a structured mounting interface that helps position and support the set top box while maintaining access to required cables, connectors, ventilation areas, and control interfaces.

The wall mount bracket can be developed according to the dimensions and weight of the set top box, mounting-hole arrangement, wall or surface interface, cable-routing requirements, and desired installation method. Depending on the design, the bracket can incorporate mounting holes, screw bosses, locating slots, retaining clips, locking features, support ribs, cable-management openings, and anti-slip features.

Precision injection moulding allows the bracket to be manufactured with consistent dimensions, controlled wall thickness, accurate mounting geometry, and repeatable fitment suitable for OEM and bulk production requirements.

Key Features

• Precision injection-moulded wall mounting bracket

• Designed according to specific set top box dimensions

• Customized mounting holes and fixing points

• Reinforcing ribs for improved structural rigidity

• Locating slots and positioning features

• Retaining clips or locking features can be incorporated

• Cable-routing openings can be integrated into the design

• Customized support and clearance for connectors and cables

• Lightweight construction compared with many metal bracket designs

• Smooth or textured surface finish options

• Customized colour options

• Suitable for OEM, ODM, and bulk production

• Can be developed using CAD drawings, samples, or technical specifications

Industrial Applications

Manufacturing Process

1. Product Design & Development

The wall mount bracket is designed according to the set top box dimensions, weight, mounting arrangement, installation surface, cable routing, connector clearance, and required support points. CAD drawings, 3D models, samples, or technical specifications can be used for development.

2. Plastic Mould Design

The injection mould is designed around the bracket geometry, mounting holes, screw bosses, support ribs, locating slots, clips, locking features, and cable openings. Gate location, parting line, cooling channels, and ejection arrangements are planned for consistent moulding.

3. Mould Manufacturing

The mould can be manufactured using suitable mould steel such as P20 Steel, H13 Steel, or S136 Steel, depending on production volume, required surface finish, plastic material, and expected mould life. Precision machining, fitting, polishing, and mould trials are carried out before production.

4. Injection Moulding

The selected plastic material is heated and injected into the mould cavity under controlled processing conditions. Injection pressure, material temperature, cooling time, and cycle parameters are adjusted according to the material and bracket geometry.

5. Finishing & Assembly Preparation

After moulding, the brackets are trimmed and inspected for flash, gate marks, sink marks, warpage, scratches, and other visible defects. Secondary operations such as marking, printing, or surface finishing can be considered according to the product requirements.

6. Quality Inspection

Finished brackets are checked for overall dimensions, mounting-hole accuracy, support geometry, structural features, set top box fitment, installation compatibility, surface appearance, and assembly performance.

Raw Materials

Material selection should be based on the set top box weight, mounting load, installation method, impact requirements, temperature, environmental conditions, and applicable product specifications.

Quality Control

• Raw Material Inspection: Plastic grade, colour, and batch consistency are checked before production.

• Mould Inspection: Cavity condition, mould alignment, cooling system, inserts, and ejection system are inspected.

• Dimensional Inspection: Overall bracket dimensions, wall thickness, mounting holes, slots, and critical features are measured.

• Mounting Hole Inspection: Screw holes, slots, bosses, and fixing points are checked against the approved design.

• Structural Inspection: Reinforcing ribs, support arms, retaining features, and load-bearing areas are inspected.

• Fitment Inspection: The bracket is checked with the specified set top box for correct positioning and compatibility.

• Cable Clearance Inspection: Cable-routing paths and connector clearances are checked to ensure the required space is maintained.

• Surface Inspection: Flash, sink marks, scratches, warpage, gate marks, and other moulding defects are inspected.

• Assembly Inspection: Installation and retention features are checked for proper engagement.

• Packaging Inspection: Finished brackets are protected against scratches, deformation, and contamination during storage and transportation.

Buyer Guide

Before ordering Set Top Box Plastic Wall Mount Bracket Mould and Moulding Service, buyers should provide:

• Set top box length, width, and height

• Approximate product weight

• Mounting location and orientation

• Required wall or surface mounting arrangement

• CAD drawing, 3D model, sample, or technical drawing

• Mounting-hole dimensions and positions

• Required screw or fastener specifications

• Support and retention requirements

• Cable-routing requirements

• Connector clearance requirements

• Required plastic material and grade

• Required wall thickness

• Colour and surface-finish requirements

• Snap-fit, clip, locking, or locating requirements

• Expected static and dynamic loading conditions

• Operating temperature and installation environment

• Prototype or sample requirements

• Expected production quantity

• Packaging requirements

Providing accurate product weight, mounting geometry, and installation information helps in selecting the appropriate bracket structure, mould design, and plastic material.

Why Choose Renovator Appliances Ltd?

Customized Bracket Development

We support customized wall mount bracket development according to set top box dimensions, mounting arrangements, cable routing, and structural requirements.

Precision Injection Moulding

Injection moulding supports consistent bracket geometry, accurate mounting features, and repeatable dimensions for OEM applications.

Engineering Material Selection

Suitable engineering plastics can be considered according to structural loading, impact resistance, rigidity, temperature, and environmental requirements.

Quality-Focused Production

Critical features such as mounting holes, support ribs, locating points, fitment, surface quality, and structural geometry are considered during inspection.

OEM & Bulk Manufacturing Support

Customized wall mount brackets can be developed for OEM, ODM, electronics manufacturers, DTH equipment manufacturers, and bulk buyers.

Frequently Asked Questions

1. What is Set Top Box Plastic Wall Mount Bracket Mould and Moulding Service?

It is a customized mould development and injection moulding service for manufacturing plastic brackets used to mount set top boxes and similar electronic devices on walls or other suitable surfaces.

2. Can the bracket be customized according to the set top box weight?

Yes. Bracket geometry, reinforcing ribs, support areas, mounting points, and material selection can be developed according to the required product weight and loading conditions. The final design should be validated for the actual installation load.

3. Can cable-routing and connector-clearance features be included?

Yes. Cable openings, routing channels, clearance areas, locating slots, and other features can be incorporated according to the set top box connector arrangement and installation requirements.

4. Which plastic materials can be used for a wall mount bracket?

ABS, HIPS, PP, PC+ABS, PC, PBT, Nylon, Glass-Filled Nylon, and suitable flame-retardant plastics can be considered depending on the required strength, rigidity, impact resistance, and application environment.

5. Can Renovator Appliances Ltd manufacture customized wall mount brackets for OEM production?

Yes. Customized wall mount bracket moulds and injection-moulded components can be developed according to OEM drawings, CAD models, samples, product weight, mounting specifications, material requirements, and production quantities.
