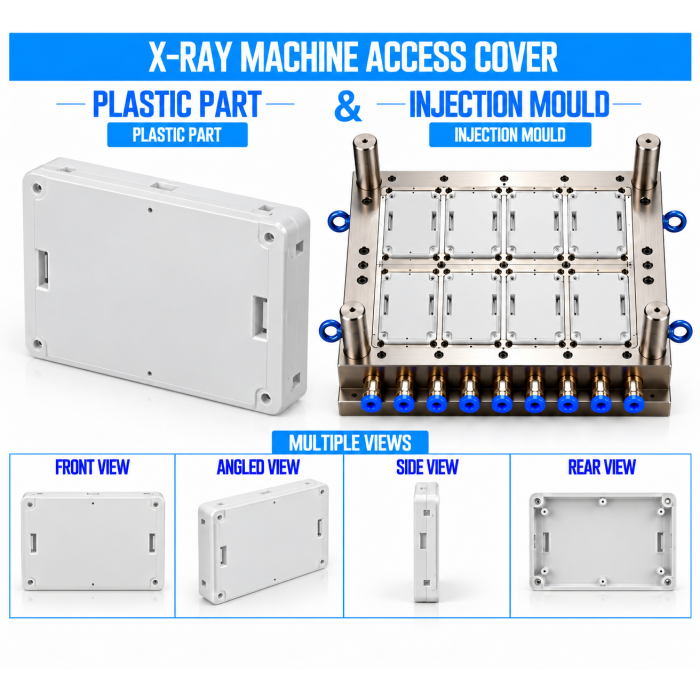

X-Ray Machine Plastic Access Cover Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd manufactures precision Plastic Injection Moulds and provides injection moulding solutions for X-Ray Machine Plastic Access Cover components used on medical X-ray equipment. The access cover provides a removable or fixed protective enclosure section that allows authorized access to selected internal components, wiring, connectors, service points, or adjustment areas while maintaining a finished equipment exterior.

The mould is developed according to the access opening, cover profile, mounting arrangement, service requirements, internal clearance, wall thickness, and surrounding housing geometry. The X-Ray Machine Plastic Access Cover can be customized with screw bosses, snap-fits, retaining clips, locating ribs, handles, finger-access features, ventilation openings, hinges, and other equipment-specific details.

Key Features

• Precision injection moulding for consistent access-cover production

• Customized cover dimensions and profile

• Designed according to the equipment access opening

• Removable or fixed mounting options

• Screw-fit, clip-fit, snap-fit, or hinged arrangements

• Integrated locating ribs and retaining features

• Service-access and finger-grip provisions

• Reinforced mounting areas

• Controlled wall thickness for dimensional stability

• Proper internal component clearance

• Smooth or textured external surface

• Customized colour and surface finish

• Suitable for prototype and volume production

• Supports OEM and ODM manufacturing requirements

Industrial Applications

Manufacturing Process

1. Product Design & Development

The X-Ray Machine Plastic Access Cover is developed according to the customer's CAD drawing, 3D model, physical sample, equipment housing, or service-access requirements. The design is reviewed for opening dimensions, cover profile, mounting method, removal frequency, internal component clearance, cable and connector access, and surrounding housing interfaces.

Where the cover is intended for regular servicing, the retention and removal method can be designed to provide practical access while maintaining secure fitment during normal equipment operation.

2. Plastic Mould Design

The injection mould is designed around the complete access-cover geometry, including the cover profile, mounting bosses, screw holes, clips, snap-fits, locating ribs, retaining lips, handles, hinges, and access features.

Parting lines, gate locations, draft angles, cooling channels, ejector arrangements, and shrinkage allowances are optimized for consistent production. Large or flat access covers require balanced filling and cooling to minimize warpage, sink marks, bowing, and dimensional variation.

3. Mould Manufacturing

Mould components are manufactured using suitable mould steels such as P20 Steel, H13 Steel, or S136 Steel, depending on production quantity, selected plastic material, required mould life, surface-finish requirements, and component complexity.

CNC machining, EDM, grinding, polishing, precision fitting, and mould assembly are used to achieve accurate cavity and core geometry.

4. Injection Moulding

The selected plastic material is processed through controlled injection moulding parameters. Injection temperature, filling speed, pressure, holding pressure, cooling time, and cycle time are adjusted according to the selected plastic grade and access-cover geometry.

Controlled processing helps maintain cover flatness, mounting accuracy, access-opening fitment, wall thickness, surface appearance, and consistent assembly with the equipment housing.

5. Finishing & Assembly Preparation

After moulding, access covers are inspected for flash, gate marks, sharp edges, sink marks, short shots, warpage, and surface imperfections. Gate marks and unwanted edges are removed where required.

Where specified, the cover can be prepared for printing, labelling, texture, hinge installation, or other finishing operations. Trial assembly can be performed with the corresponding housing to verify installation, removal, retention, and internal clearance.

6. Quality Inspection

Finished X-Ray Machine Plastic Access Cover components are checked for overall dimensions, profile, opening fitment, mounting features, retention, wall thickness, surface finish, and housing alignment.

Functional inspection can include cover installation and removal, screw or clip engagement, service access, internal clearance, and repeated removal cycles where applicable.

Raw Materials

The final plastic grade should be selected according to operating temperature, impact exposure, service frequency, cleaning conditions, dimensional stability, flame-performance requirements, and applicable equipment specifications.

Quality Control

Renovator Appliances Ltd performs quality checks throughout mould development and injection moulding production. Inspection can include:

• Plastic material and grade verification

• Mould cavity dimensional inspection

• Overall access-cover dimensions

• Cover profile and flatness

• Access-opening fitment

• Mounting-hole and boss positions

• Screw-fit accuracy

• Clip and snap-fit accuracy

• Hinge interface dimensions where applicable

• Locating-rib dimensions

• Retaining-feature accuracy

• Wall-thickness consistency

• Internal component clearance

• Cable and connector clearance

• Warpage and deformation inspection

• Short-shot inspection

• Flash and burr inspection

• Sink-mark inspection

• Surface-finish inspection

• Colour consistency

• Housing fitment

• Installation and removal verification

• Repeated service-cycle checks where required

• Batch-to-batch dimensional consistency

Buyer Guide

When ordering an X-Ray Machine Plastic Access Cover Mould and Moulding Service, buyers should provide a CAD drawing, 3D model, physical sample, equipment housing details, or service-access requirements. Important requirements include:

• Access-opening dimensions

• Required cover dimensions

• Cover profile and curvature

• Internal component location

• Required service-access area

• Mounting arrangement

• Screw, clip, snap-fit, or hinge requirements

• Expected removal frequency

• Retention requirements

• Internal component clearance

• Cable and connector clearance

• Required wall thickness

• Operating temperature

• Cleaning or chemical-exposure requirements

• Flame-performance requirements where applicable

• Plastic material and grade

• Colour and surface texture

• Surface-finish requirements

• Expected production quantity

• Required mould life

• Prototype or mass-production requirements

• OEM or ODM assembly requirements

For medical X-ray equipment, the access cover should be validated as part of the complete enclosure for mechanical fitment, service access, electrical safety, thermal conditions, and applicable medical-equipment requirements. The plastic access cover should not be assumed to provide radiation shielding or electrical protection unless specifically engineered, tested, and validated for those functions.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Renovator Appliances Ltd provides controlled plastic injection moulding for precision access covers and other customized medical equipment plastic components.

In-House Mould Manufacturing

In-house mould manufacturing provides control over cover geometry, mounting features, retention details, service-access provisions, cooling, ejection, and surface-finish requirements.

OEM & ODM Manufacturing

Customized X-Ray Machine Plastic Access Cover moulds and moulded components can be developed according to customer drawings, samples, equipment housing designs, and service requirements.

Quality Assurance

Dimensional, visual, material, surface, mounting, fitment, and functional checks help maintain consistent access-cover quality.

Cost-Effective Manufacturing

Integrated mould manufacturing and injection moulding support efficient production for prototypes, development batches, and regular commercial quantities.

Frequently Asked Questions

1. What is an X-Ray Machine Plastic Access Cover?

An X-Ray Machine Plastic Access Cover is a moulded plastic enclosure component that covers a designated service or access opening while allowing access to selected internal components when required.

2. Can the access cover be made removable?

Yes. Screw-fit, clip-fit, snap-fit, hinged, or other removable mounting arrangements can be incorporated according to the equipment service requirements.

3. Can the cover include a handle or finger-grip feature?

Yes. Finger grips, pull tabs, handles, retaining lips, locating features, and other access-related details can be incorporated into the mould design.

4. Which plastic materials can be used for the access cover?

ABS, PC+ABS, PC, PP, PBT, Nylon / PA, flame-retardant ABS, flame-retardant PC+ABS, and suitable engineering plastics can be considered according to temperature, mechanical, dimensional, cleaning, and flame-performance requirements.

5. Can Renovator manufacture both the mould and access cover?

Yes. Renovator Appliances Ltd can provide mould manufacturing and injection moulding solutions for customized X-Ray Machine Plastic Access Cover production, supporting OEM and ODM requirements.
