X-Ray Machine Plastic Collimator Front Frame Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

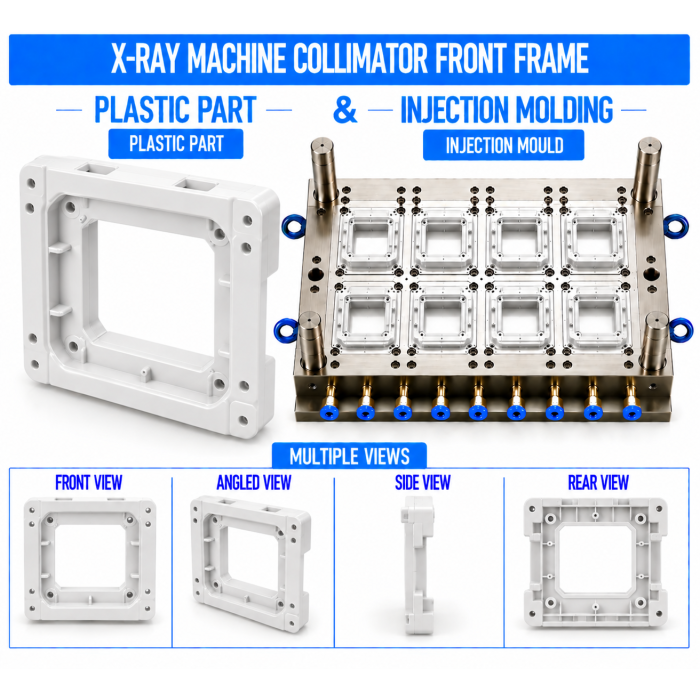

Renovator Appliances Ltd manufactures X-Ray Machine Plastic Collimator Front Frames using precision Plastic Injection Moulding and custom mould manufacturing processes. The collimator front frame is a structural plastic component positioned at the front of the collimator assembly, providing a defined mounting and enclosure interface for the front-facing components while maintaining alignment with the tube head and collimator mechanism.

The frame is developed according to the collimator opening, shutter mechanism, front cover or trim interface, mounting points, internal clearances, and surrounding tube head geometry. Accurate moulding of the frame profile, locating features, mounting points, and opening geometry helps maintain reliable assembly and proper alignment of the connected collimator components.

The plastic front frame should not be assumed to provide radiation shielding or define the X-ray beam unless specifically engineered, tested, and validated for those functions.

Key Features

• Application-specific collimator front-frame geometry

• Precision front opening profile

• Accurate mounting and locating features

• Controlled interface with collimator components

• Shutter and mechanism clearance

• Reinforced fastening areas

• Controlled wall thickness

• Smooth external and visible surfaces

• Accurate tube-head mating interface

• Consistent dimensional stability

• Customizable according to collimator design

• Suitable for OEM and high-volume production

Industrial Applications

Manufacturing Process

1. Product Design & Development

The front frame is developed according to the complete collimator assembly and tube head interface. Important parameters include the front opening dimensions, shutter clearance, mounting-hole locations, locating features, surrounding cover interfaces, internal component clearance, and required structural rigidity.

The opening and frame geometry are coordinated with the collimator mechanism and specified beam outlet. The plastic component is not assumed to provide radiation shielding unless this function is specifically engineered and validated.

2. Plastic Mould Design

The injection mould is designed to reproduce the front-frame profile, central opening, mounting bosses, locating features, ribs, retaining interfaces, and other required details accurately. Parting-line placement, draft angles, gate location, cooling channels, shrinkage allowance, and ejection are optimized to minimize warpage and maintain accurate assembly interfaces.

3. Mould Manufacturing

The mould is manufactured using precision machining and mould-making processes. P20, H13, S136, or another suitable mould steel can be selected according to production volume, plastic material, surface-finish requirements, and expected mould life. Critical opening, mounting, and locating dimensions are inspected before production trials.

4. Injection Moulding

The selected plastic material is injection moulded under controlled processing conditions. Injection pressure, injection speed, melt temperature, holding pressure, and cooling time are adjusted according to the selected material and frame geometry. Controlled processing helps maintain the front opening, mounting dimensions, frame flatness, and overall dimensional stability.

5. Finishing & Assembly Preparation

After moulding, gates, runners, flash, and excess material are removed. The central opening, mounting points, locating features, and mating edges are checked for flash or obstruction. Visible surfaces are inspected for sink marks, flow marks, scratches, and other cosmetic defects before assembly.

6. Quality Inspection

Finished front frames are inspected for overall dimensions, opening dimensions, mounting-hole positions, boss dimensions, locating features, wall thickness, flatness, warpage, surface finish, flash, and mating fit. Trial assembly with the collimator and tube head components verifies alignment and mechanical fit.

Raw Materials

Quality Control

Renovator Appliances Ltd applies dimensional, visual, and assembly inspections throughout front-frame production. Key inspection areas include:

• Overall frame dimensions

• Central opening dimensions

• Opening alignment

• Mounting-hole position

• Mounting-boss dimensions

• Locating-feature accuracy

• Shutter and mechanism clearance

• Tube-head mating interface

• Wall thickness

• Flatness

• Warpage

• Surface finish

• Flash and burr inspection

• Sink marks and moulding defects

• Parting-line condition

• Collimator assembly fitment

• Material compliance with specified requirements

Buyer Guide

When sourcing an X-Ray Machine Plastic Collimator Front Frame, buyers should provide the CAD model or engineering drawing, collimator dimensions, central opening requirements, shutter geometry, mounting locations, tube-head interface dimensions, mating cover details, required clearances, plastic material specification, surface-finish requirements, and production quantity.

The front frame should be evaluated together with the complete collimator assembly because the opening, mounting points, shutter clearance, and mating surfaces must remain accurately aligned.

The plastic front frame should not be treated as a radiation-shielding component unless its material, thickness, geometry, and complete assembly have been specifically engineered and validated for that purpose. Final equipment validation should follow applicable medical-device, mechanical, electrical, radiation-safety, and regulatory requirements.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

We provide controlled Plastic Injection Moulding for producing detailed collimator front frames with accurate openings, mounting features, and consistent surface quality.

In-House Mould Manufacturing

Our mould manufacturing capabilities support central openings, precision locating features, mounting bosses, ribs, retaining interfaces, and complex frame profiles.

OEM & ODM Manufacturing

We support OEM and ODM requirements from component development and mould design through mould manufacturing, injection moulding, inspection, and production supply.

Quality Assurance

Critical opening dimensions, mounting interfaces, collimator alignment, surface finish, warpage, and assembly fitment are inspected according to customer specifications.

Cost-Effective Manufacturing

Optimized mould construction, suitable engineering plastics, and controlled injection moulding processes support efficient production of repeatable collimator front frames.

Frequently Asked Questions

1. What is an X-Ray Machine Plastic Collimator Front Frame?

It is a moulded plastic structural frame positioned at the front of an X-ray collimator to provide mounting, alignment, and enclosure interfaces for front-facing components.

2. Does the plastic front frame provide radiation shielding?

Not automatically. The component should not be considered radiation shielding unless it has been specifically engineered, tested, and validated for that function.

3. Which plastic materials can be used?

ABS, PC+ABS, PC, PBT, and specified flame-retardant engineering plastics can be considered according to mechanical, thermal, dimensional, electrical, and equipment requirements.

4. Can the front frame be customized for a specific collimator?

Yes. The frame can be manufactured according to customer CAD data or engineering drawings, including the central opening, shutter clearances, mounting features, locating details, and tube-head interfaces.

5. Can Renovator Appliances Ltd manufacture both the mould and front frame?

Yes. Renovator Appliances Ltd can provide the complete service from component development and mould design to mould manufacturing, Plastic Injection Moulding, quality inspection, and OEM/ODM production.
