Product Overview

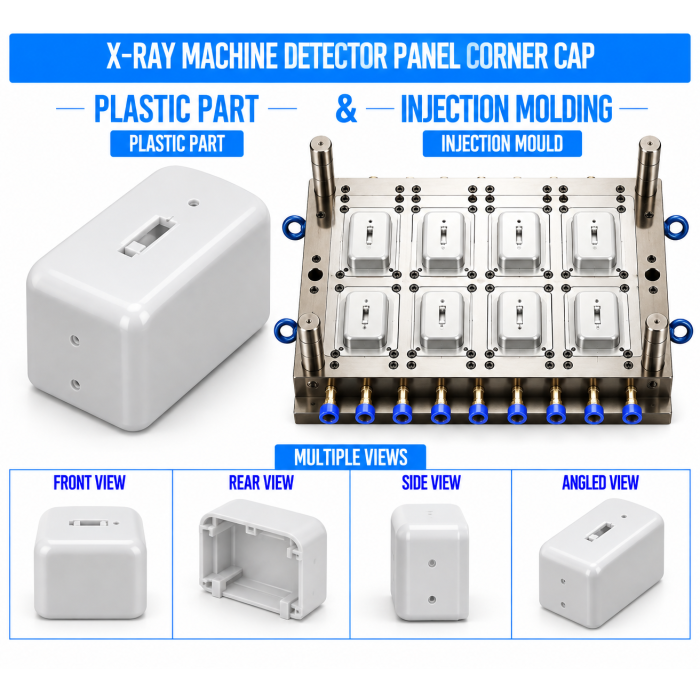

Renovator Appliances Ltd manufactures X-Ray Machine Plastic Detector Panel Corner Caps using precision Plastic Injection Moulding and customized mould manufacturing processes. The detector panel corner cap is a moulded plastic component fitted at the corner of an X-ray detector panel housing. It protects exposed housing corners, provides a finished edge transition, and can support the connection and alignment of adjoining enclosure sections.

The corner cap is developed according to the detector panel's overall dimensions, corner radius, front and rear cover profiles, side-frame geometry, fastening arrangement, and required edge protection. Accurate moulding helps maintain consistent corner geometry and secure fitment with the detector panel housing.

Depending on the detector design, the corner cap can incorporate snap-fit tabs, locating features, screw bosses, retaining clips, protective lips, reinforcement ribs, or interfaces for handles and other enclosure components.

The plastic corner cap should not be assumed to provide radiation shielding unless its material, thickness, geometry, and complete assembly have been specifically engineered, tested, and validated for that purpose.

Key Features

• Precision moulded detector-panel corner cap

• Customized corner profile and radius

• Accurate fit with front, rear, and side housing sections

• Protective coverage of exposed housing corners

• Smooth edge transition

• Integrated locating features

• Snap-fit or clip-fit retention options

• Screw mounting provisions where required

• Reinforced fastening areas

• Controlled wall thickness

• Lightweight construction

• Smooth and consistent surface finish

• Customized colour and texture

• Suitable for OEM and ODM production

Industrial Applications

Manufacturing Process

1. Product Design & Development

The corner cap is developed according to the complete detector-panel housing. Important design parameters include corner radius, adjoining front and rear cover profiles, side-frame interface, cap thickness, mounting method, locating features, retention requirements, and clearance from internal components.

The design also considers impact exposure at the detector-panel corners and the required transition between adjacent enclosure surfaces.

2. Plastic Mould Design

The injection mould is designed to reproduce the corner profile, radius, retaining features, locating tabs, mounting bosses, protective lips, and adjoining housing interfaces accurately.

Parting-line location, gate placement, draft angles, ejector arrangement, cooling channels, and shrinkage allowance are optimized according to the component geometry. Particular attention is given to corner surfaces and thin retaining features to minimize warpage, sink marks, and dimensional variation.

3. Mould Manufacturing

The mould is manufactured using precision machining, EDM, polishing, fitting, and mould assembly processes. P20, H13, S136, or another suitable mould steel can be selected according to production volume, plastic material, surface-finish requirements, and required mould life.

Critical corner geometry, locating features, and retention interfaces are inspected before mould trials.

4. Injection Moulding

The selected plastic material is injection moulded under controlled processing conditions. Injection pressure, speed, melt temperature, holding pressure, cooling time, and cycle parameters are adjusted according to the material and corner-cap geometry.

Controlled moulding helps maintain corner radius, dimensional accuracy, retention strength, surface appearance, and consistent housing fitment.

5. Finishing & Assembly Preparation

After moulding, gates, runners, flash, and excess material are removed. Retaining tabs, locating features, mounting points, adjoining edges, and protective surfaces are checked for moulding defects.

Where required, the corner caps can be prepared for assembly with the front cover, back cover, side frame, fasteners, or other detector-panel enclosure components.

6. Quality Inspection

Finished corner caps are inspected for overall dimensions, corner radius, mating surfaces, mounting features, locating tabs, retention features, wall thickness, surface finish, flatness, warpage, and flash.

Trial assembly with the detector panel housing verifies proper corner alignment, retention, and fitment with the surrounding enclosure sections.

Raw Materials

Material selection should consider impact exposure, detector operating conditions, dimensional stability, surface finish, electrical requirements, and applicable medical-equipment specifications.

Quality Control

Renovator Appliances Ltd focuses on the following quality parameters during production:

• Overall corner-cap dimensions

• Corner radius accuracy

• Front-cover interface

• Back-cover interface

• Side-frame interface

• Locating-tab dimensions

• Snap-fit retention accuracy

• Clip-fit engagement

• Screw-boss dimensions where applicable

• Mounting-hole position

• Protective edge coverage

• Wall thickness consistency

• Retaining-feature strength

• Surface finish

• Flash and burr inspection

• Sink-mark inspection

• Warpage inspection

• Colour consistency

• Front-to-back housing alignment

• Detector-panel assembly fitment

• Material-grade verification

• Batch-to-batch dimensional consistency

Buyer Guide

Before ordering an X-Ray Machine Plastic Detector Panel Corner Cap Mould and Moulding Service, buyers should provide:

• Detector panel CAD drawing or sample

• Corner-cap dimensions

• Corner radius specification

• Front-cover profile

• Back-cover profile

• Side-frame profile

• Mounting arrangement

• Snap-fit or clip-fit requirements

• Screw-mounting details where applicable

• Required impact or protection requirements

• Plastic material specification

• Colour and surface-finish requirements

• Expected production quantity

• Required mould life

• Prototype requirements

Providing the complete detector-panel housing helps establish accurate interfaces between the corner cap, front cover, back cover, side frame, and other enclosure components.

The corner cap should not be treated as a radiation-shielding component unless its material, thickness, geometry, and complete assembly have been specifically engineered and validated for that purpose. Final medical-equipment validation should address applicable mechanical, electrical, thermal, imaging, radiation-safety, and regulatory requirements.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Renovator Appliances Ltd supports precision Plastic Injection Moulding for small and detailed detector-panel corner caps requiring accurate profiles, retention features, and consistent housing fitment.

In-House Mould Manufacturing

In-house mould manufacturing supports precise corner geometry, locating tabs, snap-fits, mounting bosses, protective lips, and adjoining enclosure interfaces.

OEM & ODM Manufacturing

Customized detector-panel corner caps can be manufactured according to customer CAD drawings, samples, detector specifications, and complete housing designs.

Quality Assurance

Dimensional inspection, corner-radius verification, retention checks, surface inspection, and trial assembly help maintain consistent corner-cap quality.

Cost-Effective Manufacturing

Mould design, material selection, cavity configuration, and injection parameters can be optimized according to component complexity and production volume for efficient manufacturing.

Frequently Asked Questions

1. What is an X-Ray Machine Plastic Detector Panel Corner Cap?

It is a moulded plastic component fitted at the corner of an X-ray detector panel housing to protect the corner, provide a finished appearance, and connect or align adjoining enclosure sections.

2. Can the corner cap be customized for different detector panel designs?

Yes. The corner radius, profile, dimensions, mounting arrangement, locating features, and retention system can be customized according to the detector-panel housing.

3. Can snap-fit and clip-fit features be integrated?

Yes. Snap-fit tabs, retaining clips, locating features, screw bosses, and other fastening provisions can be incorporated into the mould according to the assembly design.

4. Does the plastic corner cap provide radiation shielding?

Not automatically. Radiation-shielding performance should only be claimed when the complete material construction and assembly have been specifically engineered, tested, and validated for that purpose.

5. Can Renovator Appliances Ltd manufacture both the corner-cap mould and moulded parts?

Yes. Renovator Appliances Ltd supports component development, mould design, mould manufacturing, Plastic Injection Moulding, quality inspection, prototype production, and bulk OEM/ODM manufacturing.
