X-Ray Machine Plastic Detector Panel Handle Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

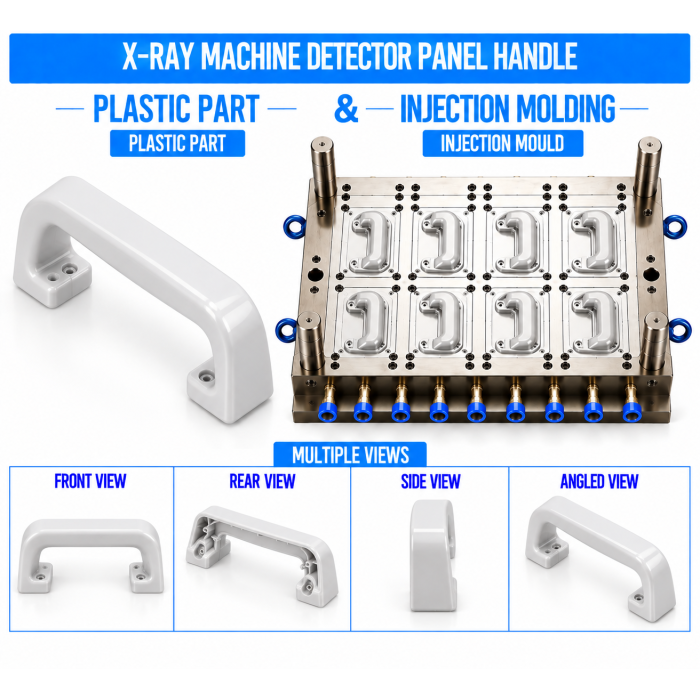

Renovator Appliances Ltd manufactures precision Plastic Injection Moulds and provides injection moulding solutions for X-Ray Machine Plastic Detector Panel Handle components used for handling, carrying, positioning, and installing X-ray detector panels. The handle provides a practical gripping interface while supporting safe and convenient movement of the detector panel during equipment operation, transportation, storage, or servicing.

The mould is developed according to the detector panel dimensions, handle length, grip profile, mounting arrangement, expected handling load, attachment points, hand clearance, and surrounding housing geometry. The X-Ray Machine Plastic Detector Panel Handle can be customized with ergonomic grip surfaces, mounting bosses, screw holes, locating features, reinforcing ribs, retaining clips, and cable-clearance provisions according to the detector design.

Key Features

• Precision injection moulding for consistent detector panel handle production

• Customized handle length, width, and grip profile

• Ergonomic gripping surface for convenient handling

• Designed according to detector panel dimensions and weight

• Reinforced mounting areas for handling loads

• Integrated screw bosses, mounting holes, clips, or snap-fit features

• Proper hand and finger clearance

• Smooth edges and controlled surface finish

• Optional textured grip surface for improved handling

• Internal ribs for increased structural rigidity

• Accurate alignment with detector panel housing

• Controlled wall thickness for dimensional stability

• Suitable for repeated handling and installation cycles

• Customized colour, texture, and surface finish

• Suitable for prototype and volume production

• Supports OEM and ODM manufacturing requirements

Industrial Applications

Manufacturing Process

1. Product Design & Development

The X-Ray Machine Plastic Detector Panel Handle is developed according to the customer's CAD drawing, 3D model, physical sample, detector-panel dimensions, or complete equipment specifications. The design is reviewed for handle length, grip diameter or profile, hand clearance, mounting locations, expected handling load, attachment method, and clearance from connectors, cables, and other detector components.

2. Plastic Mould Design

The injection mould is designed according to the handle's external grip profile, mounting features, reinforcing ribs, and attachment geometry. Draft angles, parting line, gate location, runner system, cooling channels, ejector arrangement, and shrinkage allowance are optimized for reliable mould filling and dimensional consistency.

Parting lines and ejector locations are positioned to minimize visible marks on the primary gripping surfaces. Particular attention is given to long or curved handle sections to control warpage and maintain proper mounting alignment.

3. Mould Manufacturing

Mould components are manufactured using suitable mould steels such as P20 Steel, H13 Steel, or S136 Steel according to production quantity, selected plastic material, required mould life, and surface-finish requirements. CNC machining, EDM, drilling, grinding, polishing, fitting, and mould assembly are performed to achieve accurate cavity geometry.

4. Injection Moulding

The selected plastic material is processed using controlled injection moulding parameters. Injection temperature, pressure, filling speed, holding pressure, cooling time, and cycle time are adjusted according to the selected plastic grade and handle geometry.

Controlled processing helps maintain grip dimensions, mounting-hole accuracy, surface quality, structural integrity, and consistent fitment with the detector panel housing.

5. Finishing & Assembly Preparation

After moulding, the handles are inspected for flash, gate marks, sharp edges, sink marks, and surface imperfections. Where required, gate vestiges are trimmed and the gripping surface is finished according to the specified texture or appearance.

Mounting holes, bosses, clips, locating features, and attachment points are checked before assembly with the detector panel housing.

6. Quality Inspection

Finished X-Ray Machine Plastic Detector Panel Handle components are checked for overall dimensions, grip profile, mounting alignment, structural integrity, surface finish, and fitment. Trial assembly with the detector panel housing can be performed to verify proper installation and handling clearance.

Raw Materials

The final plastic grade should be selected according to detector-panel weight, expected handling load, impact exposure, operating environment, temperature, chemical-cleaning exposure, required surface finish, and applicable equipment specifications.

Quality Control

Renovator Appliances Ltd performs quality checks throughout mould development and injection moulding production. Inspection can include:

• Plastic material and grade verification

• Mould cavity dimensional inspection

• Overall handle dimensions

• Grip length and profile

• Grip diameter or cross-section

• Hand and finger clearance

• Mounting-hole position and dimensions

• Screw-boss accuracy

• Clip and snap-fit accuracy

• Reinforcing-rib dimensions

• Handle-to-housing alignment

• Wall-thickness consistency

• Structural and load-related inspection

• Warpage and deformation inspection

• Sink-mark and short-shot inspection

• Flash and burr inspection

• Surface finish and texture inspection

• Colour consistency

• Detector-panel trial assembly

• Connector and cable clearance

• Repeated installation/removal checks where applicable

• Batch-to-batch dimensional consistency

Buyer Guide

When ordering an X-Ray Machine Plastic Detector Panel Handle Mould and Moulding Service, buyers should provide a CAD drawing, 3D model, physical sample, detector-panel specifications, or complete housing details. Important requirements include:

• Detector panel dimensions

• Detector panel weight

• Required handle length and profile

• Grip diameter or cross-section

• Handle mounting location

• Mounting-hole dimensions

• Screw, clip, bracket, or snap-fit requirements

• Expected handling and lifting load

• Required hand and finger clearance

• Required reinforcing structure

• Clearance from connectors and cables

• Plastic material and grade

• Colour and surface texture

• Surface-finish requirements

• Expected production quantity

• Required mould life

• Prototype or mass-production requirements

• OEM or ODM assembly requirements

For handles intended to carry or support a detector panel, the complete handle-to-housing attachment should be evaluated for the expected static and dynamic handling loads. The plastic handle should not be treated as a radiation-shielding component unless it has been specifically engineered, tested, and validated for that purpose.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Renovator Appliances Ltd provides controlled plastic injection moulding for functional components requiring accurate dimensions, repeatable production, and consistent assembly fitment.

In-House Mould Manufacturing

In-house mould manufacturing provides better control over handle geometry, grip surfaces, mounting features, reinforcing ribs, ejection, cooling, and dimensional requirements.

OEM & ODM Manufacturing

Customized X-Ray Machine Plastic Detector Panel Handle moulds and moulded components can be developed according to customer drawings, samples, detector specifications, and equipment housing designs.

Quality Assurance

Dimensional, visual, material, assembly, and structural checks help maintain consistent handle quality and proper integration with the detector panel assembly.

Cost-Effective Manufacturing

Integrated mould manufacturing and injection moulding services support efficient production for prototype development and regular commercial quantities.

Frequently Asked Questions

1. What is an X-Ray Machine Plastic Detector Panel Handle?

It is a moulded plastic gripping component designed to provide a convenient interface for handling, carrying, positioning, or installing an X-ray detector panel.

2. Can the handle be customized according to the detector panel size?

Yes. Handle length, grip profile, mounting position, attachment method, hand clearance, and reinforcing structure can be customized according to the detector panel design.

3. Can the plastic handle support a heavy detector panel?

Yes. The handle geometry and mounting structure can be designed according to the expected detector-panel weight and handling load. The complete handle and housing attachment should be validated for the required load conditions.

4. Which plastic materials can be used for the detector panel handle?

ABS, PC+ABS, PC, Nylon / PA, Glass-Filled Nylon, PBT, flame-retardant ABS, and other suitable engineering plastics can be considered according to mechanical, environmental, appearance, and equipment requirements.

5. Can Renovator Appliances Ltd manufacture both the mould and plastic detector panel handle?

Yes. Renovator Appliances Ltd can provide mould manufacturing and injection moulding solutions for customized X-Ray Machine Plastic Detector Panel Handle production, supporting OEM and ODM requirements.
