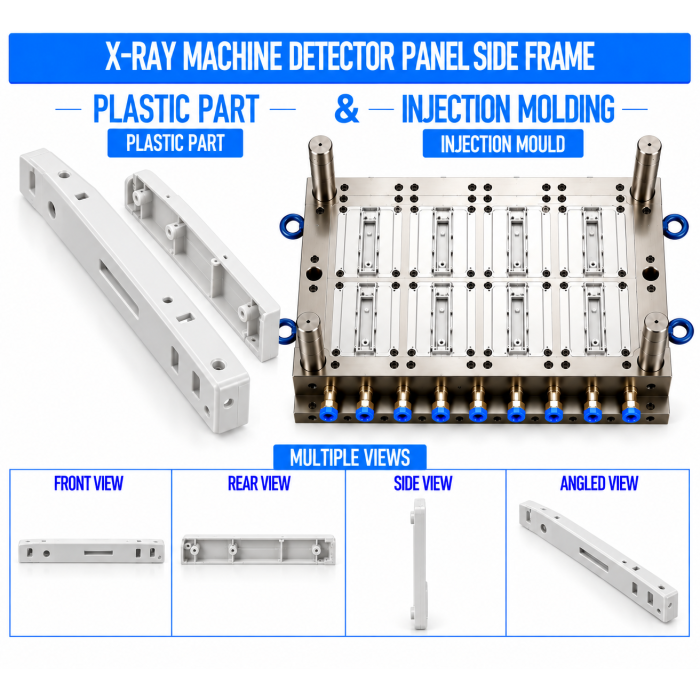

Renovator Appliances Ltd manufactures X-Ray Machine Plastic Detector Panel Side Frames using precision Plastic Injection Moulding and customized mould manufacturing processes. The detector panel side frame is a structural plastic component positioned along the side of an X-ray detector panel assembly. It provides edge protection, supports the front and rear enclosure sections, maintains panel alignment, and can incorporate mounting, locating, connector, handle, or accessory interfaces according to the detector design.

The side frame is developed according to the overall detector-panel dimensions, front and back cover profiles, internal detector components, mounting structure, connector locations, cable routing, and required edge clearances. Accurate moulding helps maintain consistent frame geometry, straightness, mating dimensions, and reliable assembly with the complete detector panel.

Customized features such as screw bosses, locating ribs, snap-fits, clips, handle interfaces, connector clearances, cable passages, reinforcement ribs, and protective edge profiles can be incorporated according to the application.

The plastic side frame should not be assumed to provide radiation shielding unless its material, thickness, geometry, and complete assembly have been specifically engineered, tested, and validated for that function.

Key Features

• Precision moulded detector-panel side frame

• Accurate side-profile geometry

• Front and rear cover mating interfaces

• Controlled panel-edge alignment

• Reinforced mounting and fastening areas

• Locating ribs and alignment features

• Internal detector-component clearance

• Connector and cable-routing provisions

• Handle or accessory mounting provisions where required

• Controlled wall thickness

• Lightweight structural construction

• Smooth and consistent surface finish

• Customized screw, clip, or snap-fit assembly

• Suitable for OEM and ODM production

Industrial Applications

Manufacturing Process

1. Product Design & Development

The side frame is developed according to the complete detector panel assembly. Key parameters include frame length and profile, front and rear cover mating geometry, detector-panel edge clearance, mounting locations, locating features, internal component clearance, connector positions, cable routing, and accessory or handle interfaces where applicable.

Special attention is given to frame straightness, wall thickness, ribs, and fastening areas to maintain dimensional stability and prevent interference with the detector assembly.

2. Plastic Mould Design

The injection mould is designed to reproduce the side-frame profile, mounting bosses, locating ribs, fastening features, connector clearances, cable passages, and front/rear housing interfaces accurately.

Parting-line placement, gate position, draft angles, cooling channels, ejector arrangement, and shrinkage allowance are optimized according to the frame geometry. Long or narrow frame sections are carefully considered to minimize warpage, shrinkage, and dimensional variation.

3. Mould Manufacturing

The mould is manufactured using precision machining, EDM, polishing, fitting, and mould assembly processes. P20, H13, S136, or another suitable mould steel can be selected according to production quantity, plastic material, surface-finish requirements, and required mould life.

Critical frame dimensions, mounting features, locating interfaces, and mating surfaces are inspected before mould trials.

4. Injection Moulding

The selected plastic material is injection moulded under controlled processing conditions. Injection pressure, speed, melt temperature, holding pressure, cooling time, and cycle parameters are adjusted according to the selected material and side-frame geometry.

Controlled processing helps maintain frame straightness, dimensional stability, mounting accuracy, surface quality, and consistent fitment with the detector panel.

5. Finishing & Assembly Preparation

After moulding, gates, runners, flash, and excess material are removed. Mounting holes, bosses, locating features, connector clearances, cable passages, and mating edges are checked for obstruction or moulding defects.

Where required, the side frame can be prepared for handles, labels, protective trim interfaces, connectors, fasteners, or other detector-panel assembly operations.

6. Quality Inspection

Finished side frames are inspected for overall length and profile, straightness, mounting-hole positions, boss dimensions, locating features, front/rear cover interfaces, internal clearances, wall thickness, warpage, surface finish, and flash.

Trial assembly with the detector panel, front cover, back cover, and internal components can be performed to verify accurate fitment and alignment.

Raw Materials

Material selection should consider impact requirements, detector operating temperature, dimensional stability, electrical requirements, environmental exposure, surface finish, and applicable medical-equipment specifications.

Quality Control

Renovator Appliances Ltd focuses on the following quality parameters during production:

• Overall frame dimensions

• Frame length and side profile

• Straightness

• Front-cover mating dimensions

• Back-cover mating dimensions

• Mounting-hole position

• Mounting-boss dimensions

• Locating-feature accuracy

• Internal detector-component clearance

• Connector clearance

• Cable-routing clearance

• Handle or accessory interface accuracy

• Wall thickness consistency

• Rib and reinforcement dimensions

• Screw-fit or snap-fit accuracy

• Flatness and warpage

• Sink-mark inspection

• Flash and burr inspection

• Surface-finish inspection

• Colour consistency

• Detector-panel assembly fitment

• Front and rear housing alignment

• Material-grade verification

• Batch-to-batch dimensional consistency

Buyer Guide

Before ordering an X-Ray Machine Plastic Detector Panel Side Frame Mould and Moulding Service, buyers should provide:

• Detector panel CAD drawing or sample

• Complete side-frame dimensions

• Front and back cover profiles

• Detector component arrangement

• Mounting-hole locations

• Locating-feature details

• Connector and cable positions

• Internal clearance requirements

• Handle or accessory mounting details where applicable

• Required reinforcement ribs

• Fastening method

• Plastic material specification

• Colour and surface-finish requirements

• Expected production quantity

• Required mould life

• Prototype requirements

Providing the complete detector panel housing helps establish accurate interfaces between the side frame, front cover, back cover, internal detector assembly, connectors, and accessory components.

The plastic side frame should not be treated as a radiation-shielding component unless its material, thickness, geometry, and complete assembly have been specifically engineered and validated for that function. Final medical-equipment validation should address applicable mechanical, electrical, thermal, imaging, radiation-safety, and regulatory requirements.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Renovator Appliances Ltd supports precision Plastic Injection Moulding for long and detailed detector-panel side frames requiring dimensional stability, straightness, and accurate housing interfaces.

In-House Mould Manufacturing

In-house mould manufacturing supports customized side profiles, mounting bosses, locating ribs, fastening features, cable clearances, and detailed front/rear housing interfaces.

OEM & ODM Manufacturing

Customized detector-panel side frames can be manufactured according to customer CAD drawings, samples, detector specifications, and complete equipment designs.

Quality Assurance

Dimensional inspection, straightness checks, mating-interface verification, mounting-feature inspection, surface inspection, and trial assembly help maintain consistent side-frame quality.

Cost-Effective Manufacturing

Mould design, material selection, injection parameters, and production configuration can be optimized according to component geometry and production volume for efficient manufacturing.

Frequently Asked Questions

1. What is an X-Ray Machine Plastic Detector Panel Side Frame?

It is a moulded plastic structural component fitted along the side of an X-ray detector panel to provide edge protection, housing support, alignment, and interfaces between the front and rear enclosure sections.

2. Can the side frame include mounting and locating features?

Yes. Screw bosses, mounting holes, locating ribs, clips, snap-fits, reinforcement ribs, and other assembly features can be incorporated according to the detector-panel design.

3. Can cable and connector clearances be included in the side frame?

Yes. Cable passages, connector clearances, wiring routes, and other interface features can be integrated into the mould according to the internal assembly layout.

4. Does the plastic side frame provide radiation shielding?

Not automatically. Radiation-shielding performance should only be claimed when the complete material construction and assembly have been specifically engineered, tested, and validated for that purpose.

5. Can Renovator Appliances Ltd manufacture both the side-frame mould and moulded parts?

Yes. Renovator Appliances Ltd supports component development, mould design, mould manufacturing, Plastic Injection Moulding, quality inspection, prototype production, and bulk OEM/ODM manufacturing.
