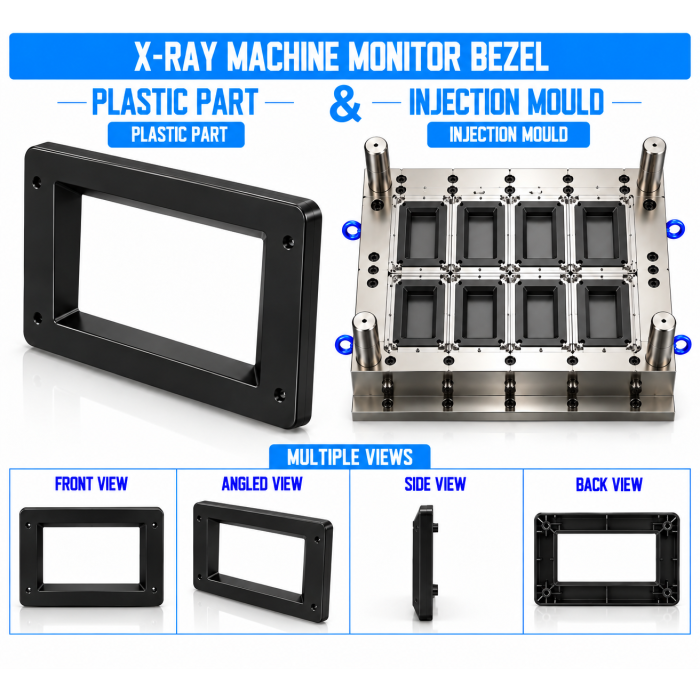

X-Ray Machine Plastic Monitor Bezel Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd manufactures precision Plastic Injection Moulds and provides injection moulding solutions for X-Ray Machine Plastic Monitor Bezel components used around the display or monitor assembly of X-ray equipment. The monitor bezel provides a finished front-facing frame around the display while supporting proper alignment between the monitor, display opening, control-console housing, and adjoining panels.

The mould is developed according to the monitor dimensions, visible display area, screen profile, mounting arrangement, viewing opening, internal clearance, and console geometry. The X-Ray Machine Plastic Monitor Bezel can be customized with display openings, locating features, mounting bosses, clips, retaining lips, ventilation provisions, cable clearances, and other assembly features according to the equipment design.

Key Features

• Precision injection moulding for consistent monitor bezel production

• Customized display opening according to monitor dimensions

• Accurate alignment around the visible screen area

• Smooth finished front-facing frame

• Integrated mounting bosses, clips, or snap-fit features

• Locating and retaining features for monitor assembly

• Controlled screen and display clearance

• Cable and connector clearance where required

• Reinforced mounting areas

• Controlled wall thickness for dimensional stability

• Smooth and cleanable external surface

• Customized colour, texture, and surface finish

• Suitable for prototype and volume production

• OEM and ODM manufacturing support

Industrial Applications

Manufacturing Process

1. Product Design & Development

The X-Ray Machine Plastic Monitor Bezel is developed according to the customer's CAD drawing, 3D model, physical sample, monitor specifications, or complete control-console assembly. The design is reviewed for screen size, visible display area, bezel width, monitor mounting points, front-surface profile, cable routing, ventilation, and internal clearance.

Particular attention is given to the display opening and monitor interface to maintain accurate screen alignment without interfering with the display housing or connectors.

2. Plastic Mould Design

The injection mould is designed around the bezel profile, display opening, mounting bosses, locating features, retaining clips, and cable or ventilation openings where required. Parting lines, gate locations, draft angles, cooling channels, ejector arrangement, and shrinkage allowance are optimized for accurate production.

Large flat or curved bezel surfaces require balanced filling and cooling to minimize warpage, sink marks, unevenness, and dimensional variation around the display opening.

3. Mould Manufacturing

Mould components are manufactured using suitable mould steels such as P20 Steel, H13 Steel, or S136 Steel according to production volume, selected plastic material, expected mould life, and surface-finish requirements. CNC machining, EDM, drilling, grinding, polishing, fitting, and mould assembly are used to achieve accurate cavity geometry.

4. Injection Moulding

The selected plastic material is processed through controlled injection moulding parameters. Injection pressure, melt temperature, filling speed, holding pressure, cooling time, and cycle time are adjusted according to the selected plastic grade and bezel geometry.

Controlled processing helps maintain display-opening accuracy, surface quality, flatness, mounting-feature dimensions, and consistent fitment with the monitor and console housing.

5. Finishing & Assembly Preparation

After moulding, the monitor bezels are inspected for flash, gate marks, sharp edges, sink marks, weld lines, and surface imperfections. The display opening and front-facing surfaces are carefully checked for visual quality.

Where required, the bezel can be prepared for printing, labelling, decorative finishing, or installation with the monitor/display assembly.

6. Quality Inspection

Finished X-Ray Machine Plastic Monitor Bezel components are checked for overall dimensions, display-opening accuracy, bezel width, mounting features, monitor clearance, surface finish, and fitment with the corresponding console housing and display assembly.

Raw Materials

The final plastic grade should be selected according to monitor heat generation, impact requirements, dimensional stability, surface-finish expectations, cleaning conditions, electrical-equipment requirements, and applicable medical-equipment specifications.

Quality Control

Renovator Appliances Ltd performs dimensional, visual, material, and assembly checks during mould development and production. Inspection can include:

• Plastic material and grade verification

• Mould cavity dimensional inspection

• Overall bezel dimensions

• Display-opening dimensions

• Display-opening squareness and alignment

• Bezel width consistency

• Monitor housing clearance

• Mounting-hole and boss position

• Clip and snap-fit accuracy

• Locating-feature dimensions

• Cable and connector clearance

• Ventilation-opening dimensions where applicable

• Wall-thickness consistency

• Front-surface flatness and profile

• Warpage and deformation inspection

• Sink-mark and weld-line inspection

• Flash and burr inspection

• Surface-finish inspection

• Colour consistency

• Printing or marking alignment where applicable

• Trial assembly with monitor and console housing

• Batch-to-batch dimensional consistency

Buyer Guide

When ordering an X-Ray Machine Plastic Monitor Bezel Mould and Moulding Service, buyers should provide a CAD drawing, 3D model, physical sample, monitor specifications, or complete control-console assembly details. Important requirements include:

• Monitor dimensions

• Display viewing-area dimensions

• Required bezel opening

• Bezel width and profile

• Monitor housing dimensions

• Mounting-hole locations

• Screw, clip, or snap-fit requirements

• Cable and connector positions

• Ventilation requirements where applicable

• Internal clearance

• Required wall thickness

• Plastic material and grade

• Colour and surface texture

• Surface-finish requirements

• Printing or marking requirements

• Expected production quantity

• Required mould life

• Prototype or mass-production requirements

• OEM or ODM assembly requirements

For medical X-ray equipment, the monitor bezel is generally a mechanical and cosmetic enclosure component. It should not be assumed to provide radiation shielding, electrical safety, structural support, or other specialized protection unless specifically engineered, tested, and validated for that function.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Renovator Appliances Ltd provides controlled plastic injection moulding for precision monitor bezels and console components requiring accurate display openings and consistent surface quality.

In-House Mould Manufacturing

In-house mould manufacturing provides control over display-opening geometry, surface finish, mounting features, cooling, ejection, and dimensional accuracy.

OEM & ODM Manufacturing

Customized X-Ray Machine Plastic Monitor Bezel moulds and moulded components can be developed according to customer drawings, monitor specifications, samples, and console designs.

Quality Assurance

Dimensional inspection, display-opening checks, surface inspection, material verification, and trial assembly help maintain consistent bezel quality and fitment.

Cost-Effective Manufacturing

Integrated mould manufacturing and injection moulding support efficient production for prototype development, testing quantities, and regular OEM production.

Frequently Asked Questions

1. What is an X-Ray Machine Plastic Monitor Bezel?

It is a moulded plastic frame installed around the monitor or display opening of an X-ray machine control console, providing a finished appearance and helping align the display assembly with the console housing.

2. Can the monitor bezel be customized for a specific display?

Yes. The display opening, bezel width, mounting points, retaining features, cable clearances, and overall profile can be customized according to the monitor assembly.

3. Can the bezel include mounting clips and screw bosses?

Yes. Screw bosses, snap-fits, retaining clips, locating ribs, and other assembly features can be integrated into the moulded bezel according to the console design.

4. Which plastic materials can be used for the monitor bezel?

ABS, PC+ABS, PC, HIPS, PBT, flame-retardant ABS, flame-retardant PC+ABS, and suitable engineering plastics can be considered according to mechanical, thermal, dimensional, surface-finish, and equipment requirements.

5. Can Renovator manufacture both the mould and moulded monitor bezel?

Yes. Renovator Appliances Ltd provides mould manufacturing and injection moulding solutions for customized X-Ray Machine Plastic Monitor Bezel production, supporting OEM and ODM requirements.
