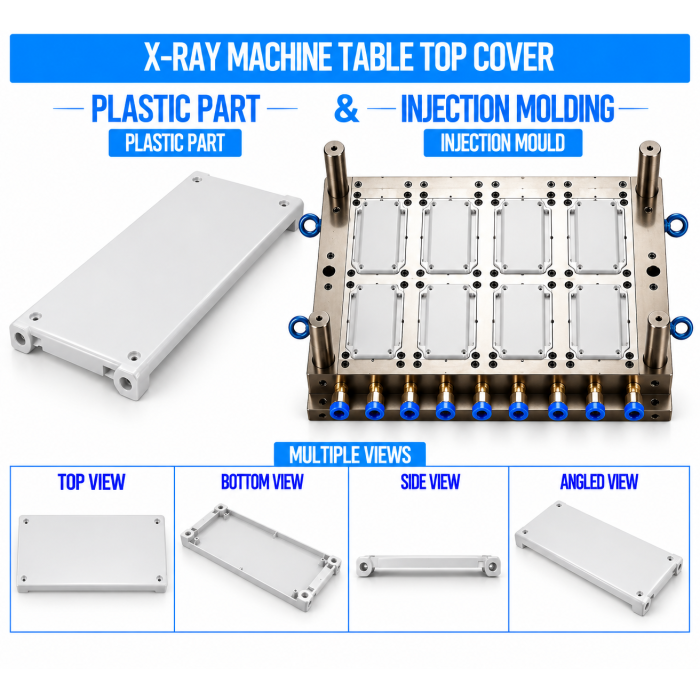

X-Ray Machine Plastic Table Top Cover Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd manufactures precision Plastic Injection Moulds and provides injection moulding solutions for X-Ray Machine Plastic Table Top Cover components used on medical X-ray examination and imaging tables. The table top cover forms a protective and finished plastic surface or enclosure section over the table-top structure, helping provide a clean external appearance while protecting underlying components and supporting integration with the table assembly.

The mould is developed according to the table-top length, width, curvature, thickness, mounting arrangement, patient-contact requirements, structural interfaces, and clearance from the internal table mechanism. The X-Ray Machine Plastic Table Top Cover can be customized with rounded edges, access openings, mounting bosses, locating features, reinforcement ribs, cable clearances, and other product-specific details.

The plastic cover should not be assumed to provide radiation shielding or determine X-ray beam characteristics unless it has been specifically engineered, tested, and validated for that purpose.

Key Features

• Precision injection moulding for consistent table top cover production

• Customized table-top profile and dimensions

• Smooth and uniform external surface

• Rounded edges for improved handling and cleaning

• Accurate fitment with the table-top structure

• Integrated mounting bosses and locating features

• Optional clips, snap-fits, or screw-mounting provisions

• Reinforcing ribs for improved structural rigidity where required

• Controlled wall thickness for dimensional stability

• Provision for required access openings and interfaces

• Clearance for moving table mechanisms and internal components

• Customized colour, texture, and surface finish

• Easy-to-clean surface options

• Suitable for prototype and volume production

• Supports OEM and ODM manufacturing requirements

Industrial Applications

Manufacturing Process

1. Product Design & Development

The X-Ray Machine Plastic Table Top Cover is developed according to the customer's CAD drawing, 3D model, physical sample, complete table dimensions, or equipment specifications. The design is reviewed for table-top length and width, surface profile, curvature, edge geometry, wall thickness, mounting locations, internal clearances, access openings, and interaction with moving table mechanisms.

Where the cover is positioned around the imaging area, the design is also reviewed against the complete detector and imaging-system configuration so that the plastic component does not interfere with the intended equipment operation.

2. Plastic Mould Design

The injection mould is designed around the complete table-top cover geometry, including curved or contoured surfaces, mounting bosses, locating features, access openings, clips, and reinforcing ribs.

Parting lines, gate locations, draft angles, cooling channels, ejector arrangements, and shrinkage allowances are optimized for reliable mould filling and dimensional stability. Because table-top covers can have relatively large surface areas, mould design and cooling balance are carefully considered to minimize warpage, sink marks, flow marks, and dimensional variation.

3. Mould Manufacturing

Mould components are manufactured using suitable mould steels such as P20 Steel, H13 Steel, or S136 Steel according to production quantity, selected plastic material, mould-life requirements, component complexity, and surface-finish requirements.

CNC machining, EDM, drilling, grinding, polishing, fitting, and mould assembly are performed to achieve the required cavity geometry and surface quality.

4. Injection Moulding

The selected plastic material is processed using controlled injection moulding parameters. Injection temperature, filling speed, injection pressure, holding pressure, cooling time, and cycle time are adjusted according to the selected material and large-cover geometry.

Balanced filling and controlled cooling help maintain surface appearance, dimensional accuracy, flatness, curvature, and consistent fitment with the table structure.

5. Finishing & Assembly Preparation

After moulding, the table top covers are inspected for flash, gate marks, sharp edges, sink marks, warpage, and surface imperfections. Gate vestiges are trimmed where required, and the surface can be supplied with the specified texture, gloss, or other finish.

Mounting bosses, screw holes, clips, snap-fits, locating features, and access openings are checked before assembly with the X-ray table.

6. Quality Inspection

Finished X-Ray Machine Plastic Table Top Cover components are checked for overall dimensions, profile, flatness or curvature, mounting alignment, surface finish, edge geometry, and fitment with the table assembly.

Trial assembly can be performed to verify clearance from moving mechanisms, detector-related components, cables, and other adjacent parts.

Raw Materials

The final plastic grade should be selected according to mechanical loading, impact exposure, cleaning chemicals, operating temperature, surface requirements, dimensional stability, patient-contact considerations where applicable, and the complete equipment specification.

Quality Control

Renovator Appliances Ltd performs quality checks throughout mould development and injection moulding production. Inspection can include:

• Plastic material and grade verification

• Mould cavity dimensional inspection

• Overall table-top cover dimensions

• Length and width accuracy

• Profile and curvature inspection

• Flatness inspection where applicable

• Wall-thickness consistency

• Edge and corner-radius inspection

• Mounting-hole and boss position

• Clip and snap-fit accuracy

• Locating-feature accuracy

• Reinforcing-rib dimensions

• Internal component clearance

• Moving-mechanism clearance

• Detector-area clearance where applicable

• Cable and connector clearance

• Warpage and deformation inspection

• Sink-mark and short-shot inspection

• Flash and burr inspection

• Surface finish and texture inspection

• Colour consistency

• Trial assembly with the X-ray table

• Table-top cover fitment

• Batch-to-batch dimensional consistency

Buyer Guide

When ordering an X-Ray Machine Plastic Table Top Cover Mould and Moulding Service, buyers should provide a CAD drawing, 3D model, physical sample, complete table dimensions, or equipment housing details. Important requirements include:

• Table-top length and width

• Overall cover profile and curvature

• Required cover thickness

• Mounting locations

• Screw, clip, bracket, or snap-fit requirements

• Required edge and corner geometry

• Internal component clearance

• Moving-mechanism clearance

• Detector-area clearance where applicable

• Cable and connector clearance

• Reinforcing-rib requirements

• Plastic material and grade

• Colour and surface texture

• Surface-finish requirements

• Cleaning and chemical-exposure requirements

• Expected production quantity

• Required mould life

• Prototype or mass-production requirements

• OEM or ODM assembly requirements

For medical X-ray equipment, the final plastic table-top cover and its material should be validated against the complete equipment design and applicable mechanical, electrical, cleaning, biocompatibility or patient-contact, imaging, radiation-safety, and regulatory requirements, as applicable. The cover should not be considered radiation shielding unless specifically engineered and validated for that function.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

Renovator Appliances Ltd provides controlled plastic injection moulding for large and detailed enclosure components requiring dimensional consistency, surface quality, and repeatable assembly fitment.

In-House Mould Manufacturing

In-house mould manufacturing provides better control over large-cover cavity geometry, cooling balance, ejection, mounting features, surface finish, and dimensional requirements.

OEM & ODM Manufacturing

Customized X-Ray Machine Plastic Table Top Cover moulds and moulded components can be developed according to customer drawings, samples, table structures, and equipment specifications.

Quality Assurance

Dimensional, visual, material, surface, and assembly checks help maintain consistent table-top cover quality and integration with the complete X-ray table.

Cost-Effective Manufacturing

Integrated mould manufacturing and injection moulding services support efficient production for prototype development and regular commercial quantities.

Frequently Asked Questions

1. What is an X-Ray Machine Plastic Table Top Cover?

It is a moulded plastic component designed to provide a finished protective surface or enclosure section for an X-ray examination or imaging table.

2. Can the table top cover be customized according to the X-ray table design?

Yes. The cover dimensions, curvature, edge profile, mounting features, access openings, ribs, clips, and surface finish can be customized according to the table design.

3. Can the cover be manufactured with mounting and snap-fit features?

Yes. Screw bosses, mounting holes, locating features, clips, snap-fits, and other assembly interfaces can be incorporated according to the equipment structure.

4. Which plastic materials can be used for the table top cover?

ABS, PC+ABS, PC, HIPS, PP, PBT, flame-retardant plastics, and suitable engineering plastics can be considered according to the required mechanical, environmental, surface, and equipment specifications.

5. Can Renovator Appliances Ltd manufacture both the mould and plastic table top cover?

Yes. Renovator Appliances Ltd can provide mould manufacturing and injection moulding solutions for customized X-Ray Machine Plastic Table Top Cover production, supporting prototype, OEM, ODM, and volume manufacturing requirements.
