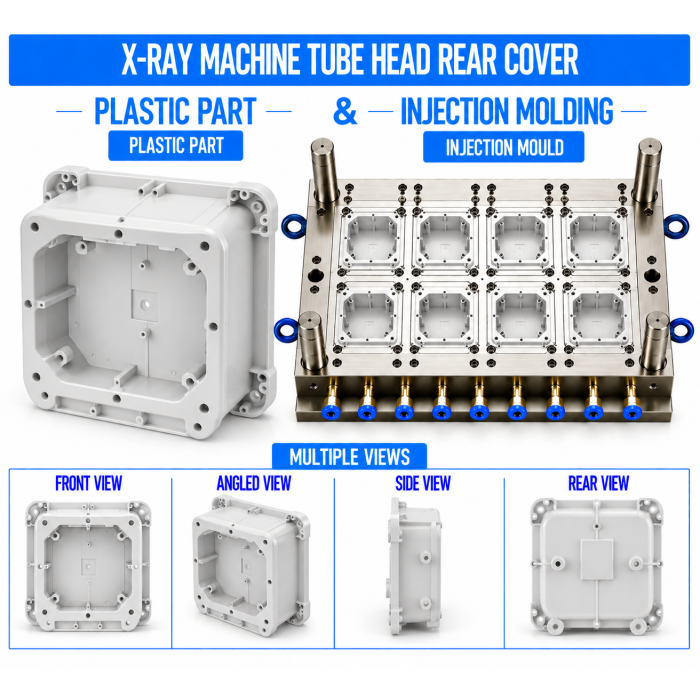

X-Ray Machine Plastic Tube Head Rear Cover Mould and Moulding Service | Renovator Appliances Ltd

Product Overview

Renovator Appliances Ltd manufactures X-Ray Machine Plastic Tube Head Rear Covers using precision Plastic Injection Moulding and custom mould manufacturing processes. The tube head rear cover forms the rear enclosure section of the X-ray tube head, providing a protective housing interface around internal components while maintaining proper alignment with the front cover and main tube head structure.

The rear cover is designed according to the tube head profile, internal component clearances, mounting arrangement, ventilation requirements, cable-routing areas, service-access requirements, and mating interfaces. Accurate moulding of mounting bosses, locating features, openings, and enclosure contours helps achieve reliable assembly and consistent equipment appearance.

Key Features

• Application-specific tube head rear enclosure profile

• Accurate mating interface with the tube head body

• Precision mounting bosses and locating features

• Controlled wall thickness for dimensional stability

• Provision for ventilation openings where required

• Cable and connector clearance where specified

• Reinforced fastening points

• Smooth external enclosure surface

• Controlled fit with front and side housing sections

• Consistent production dimensions

• Customizable according to equipment design

• Suitable for OEM and high-volume production

Industrial Applications

Manufacturing Process

1. Product Design & Development

The rear cover is developed according to the complete tube head assembly, including its rear profile, mating surfaces, mounting points, internal components, cable routing, ventilation requirements, and service-access requirements. Clearance around electrical and other internal components is incorporated according to the equipment design.

2. Plastic Mould Design

The mould is designed to accurately reproduce the rear-cover contour, mounting bosses, locating ribs, cable openings, ventilation features, fastening interfaces, and other required details. Draft angles, parting-line position, gate location, cooling channels, ejection system, and shrinkage allowance are optimized to control warpage and maintain fitment with the complete enclosure.

3. Mould Manufacturing

The mould is manufactured using precision machining and mould-making processes. P20, H13, S136, or another suitable mould steel can be selected according to production volume, material, surface-finish requirements, and expected mould life. Critical cavity, core, boss, and mounting features are inspected before production trials.

4. Injection Moulding

The selected plastic material is processed under controlled injection moulding conditions. Injection pressure, speed, melt temperature, holding pressure, and cooling time are adjusted according to the selected material and rear-cover geometry. Controlled filling and cooling help maintain the enclosure profile and minimize dimensional variation.

5. Finishing & Assembly Preparation

After moulding, gates, runners, flash, and excess material are removed. Ventilation slots, cable openings, mounting interfaces, and mating edges are checked for flash or obstructions. Visible surfaces are inspected for cosmetic defects before the component is prepared for assembly.

6. Quality Inspection

Finished rear covers are inspected for overall dimensions, enclosure profile, wall thickness, mounting-hole positions, boss dimensions, locating features, opening dimensions, warpage, flatness, surface finish, flash, and mating fit. Assembly checks with the tube head body and related covers can be performed according to customer specifications.

Raw Materials

Quality Control

Renovator Appliances Ltd applies dimensional, visual, and assembly inspections throughout rear-cover production. Key inspection areas include:

• Overall rear-cover dimensions

• Housing profile and contour

• Wall thickness

• Mounting-hole position

• Mounting-boss dimensions

• Locating-feature accuracy

• Ventilation opening dimensions

• Cable-entry openings

• Mating-edge accuracy

• Warpage and flatness

• Surface finish

• Flash and burr inspection

• Sink marks and moulding defects

• Parting-line condition

• Front-cover and main-housing fitment

• Internal component clearance

• Material compliance with specified requirements

Buyer Guide

When sourcing an X-Ray Machine Plastic Tube Head Rear Cover, buyers should provide the CAD model or engineering drawing, tube head dimensions, mating housing geometry, mounting locations, ventilation requirements, cable-entry details, plastic material specification, surface-finish requirements, and production quantity.

The rear cover should be evaluated with the complete tube head enclosure because the fit depends on the front cover, main housing, internal mounting structure, and related components. For medical equipment, final material selection and component validation should follow the applicable mechanical, electrical, thermal, safety, and regulatory requirements.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

We provide controlled Plastic Injection Moulding for producing detailed enclosure covers with consistent dimensions, fitment, and surface quality.

In-House Mould Manufacturing

Our mould manufacturing capabilities support complex rear-cover contours, mounting bosses, locating ribs, ventilation openings, cable interfaces, and fastening features.

OEM & ODM Manufacturing

We support OEM and ODM requirements from component development and mould design through mould manufacturing, injection moulding, inspection, and production supply.

Quality Assurance

Critical dimensions, mounting interfaces, housing profile, surface finish, warpage, openings, and assembly fitment are inspected according to customer specifications.

Cost-Effective Manufacturing

Optimized mould construction, appropriate engineering plastics, and controlled injection moulding processes support efficient production of repeatable tube head enclosure components.

Frequently Asked Questions

1. What is an X-Ray Machine Plastic Tube Head Rear Cover?

It is a moulded plastic enclosure component installed at the rear of an X-ray tube head to provide a protective housing interface around the internal assembly.

2. Can the rear cover include ventilation and cable openings?

Yes. Ventilation slots, cable-entry openings, connector clearances, service-access features, and other interfaces can be incorporated according to the tube head design.

3. Which plastic materials can be used?

ABS, PC+ABS, PC, and specified flame-retardant grades can be considered based on the equipment's mechanical, thermal, electrical, safety, and material requirements.

4. How is accurate fitment with the front cover maintained?

The mould is developed from the complete enclosure geometry, with controlled mating edges, locating features, mounting bosses, wall thickness, shrinkage allowance, and warpage control incorporated into the design.

5. Can Renovator Appliances Ltd manufacture both the mould and rear cover?

Yes. Renovator Appliances Ltd can provide the complete service from component development and mould design to mould manufacturing, Plastic Injection Moulding, quality inspection, and OEM/ODM production.
