Product Overview

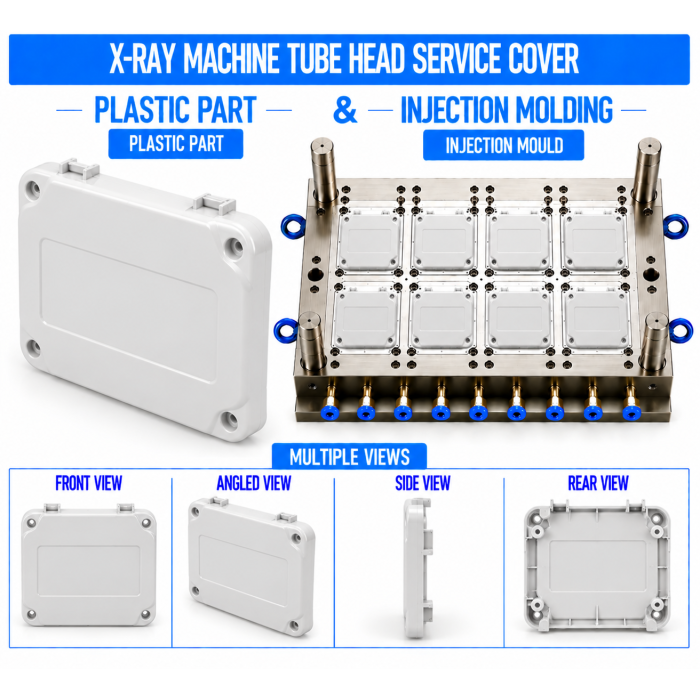

Renovator Appliances Ltd manufactures X-Ray Machine Plastic Tube Head Service Covers using precision Plastic Injection Moulding and custom mould manufacturing processes. The service cover is a removable plastic enclosure component designed to provide access to selected internal areas of the X-ray tube head for inspection, maintenance, adjustment, or component servicing while maintaining the required protective housing structure during normal operation.

The cover is developed according to the tube head enclosure profile, access opening, fastening method, internal component clearance, service requirements, and surrounding housing geometry. Accurate moulding of mounting points, locating features, edges, and retention interfaces helps provide secure installation while allowing controlled removal when servicing is required.

Key Features

• Application-specific service-access cover geometry

• Accurate fit with the tube head enclosure

• Controlled access opening profile

• Screw, clip, snap-fit, or other specified retention interfaces

• Precision locating features

• Reinforced fastening areas

• Controlled wall thickness

• Smooth and durable external surface

• Easy installation and removal where required

• Proper clearance from internal components

• Consistent fit across production batches

• Customizable according to X-ray equipment design

Industrial Applications

Manufacturing Process

1. Product Design & Development

The service cover is designed according to the tube head access area, internal components, enclosure profile, service procedure, and required removal frequency. Important parameters include cover dimensions, mounting-hole locations, clip or screw interfaces, locating features, edge overlap, internal clearance, and surrounding housing geometry.

2. Plastic Mould Design

The mould is designed to reproduce the service-cover profile, mounting bosses, locating tabs, retaining clips, screw features, ribs, and access-opening geometry accurately. Draft angles, parting-line position, gate location, cooling, shrinkage allowance, and ejection are optimized to maintain dimensional stability and reliable fitment.

3. Mould Manufacturing

The mould is manufactured using precision machining and mould-making processes. P20, H13, S136, or another suitable mould steel can be selected according to production volume, plastic material, surface-finish requirements, and expected mould life. Critical cavity and mounting features are inspected before mould trials.

4. Injection Moulding

The selected plastic material is processed under controlled injection moulding conditions. Injection speed, pressure, melt temperature, holding pressure, and cooling time are adjusted according to the material and service-cover geometry. Controlled filling and cooling help maintain cover flatness, mounting dimensions, and enclosure fitment.

5. Finishing & Assembly Preparation

After moulding, gates, runners, flash, and excess material are removed. Mounting holes, clip interfaces, locating features, and mating edges are checked for obstructions or sharp flash. The visible surface is inspected for sink marks, flow marks, scratches, and other moulding defects before assembly preparation.

6. Quality Inspection

Finished service covers are inspected for overall dimensions, access-opening profile, mounting-hole positions, boss dimensions, locating features, wall thickness, flatness, warpage, surface finish, flash, and mating fit. Installation and removal checks can be performed with the complete tube head enclosure to verify retention and service accessibility.

Raw Materials

Quality Control

Renovator Appliances Ltd applies dimensional, visual, and functional inspections to maintain consistent service-cover performance. Key inspection areas include:

• Overall cover dimensions

• Access-opening dimensions

• Cover profile and contour

• Wall thickness

• Mounting-hole position

• Mounting-boss dimensions

• Locating-feature accuracy

• Clip or retention geometry

• Mating-edge accuracy

• Flatness

• Warpage

• Surface finish

• Flash and burr inspection

• Sink marks and moulding defects

• Installation fit

• Removal and reinstallation fit

• Internal component clearance

• Material compliance with specified requirements

Buyer Guide

When sourcing an X-Ray Machine Plastic Tube Head Service Cover, buyers should provide the CAD model or engineering drawing, service-access dimensions, mating housing profile, mounting arrangement, screw or clip specifications, internal component clearances, plastic material requirements, surface-finish requirements, and production quantity.

The service cover should be evaluated with the complete tube head enclosure to confirm secure retention, proper sealing or enclosure overlap where required, adequate internal clearance, and convenient access for the intended service procedure.

For medical X-ray equipment, final material selection and component validation should follow the applicable mechanical, electrical, thermal, safety, radiation-safety, and regulatory requirements.

Why Choose Renovator Appliances Ltd?

Advanced Injection Moulding Facility

We provide controlled Plastic Injection Moulding for producing service covers with consistent dimensions, reliable retention features, and repeatable surface quality.

In-House Mould Manufacturing

Our mould manufacturing capabilities support access-cover profiles, mounting bosses, locating features, clips, screw interfaces, ribs, and detailed enclosure geometry.

OEM & ODM Manufacturing

We support OEM and ODM production from component development and mould design through mould manufacturing, injection moulding, inspection, and production supply.

Quality Assurance

Critical dimensions, mounting interfaces, retention features, access geometry, surface finish, warpage, and assembly fitment are inspected according to customer specifications.

Cost-Effective Manufacturing

Optimized mould design, appropriate engineering plastics, and controlled injection moulding processes support efficient production of repeatable service-cover components.

Frequently Asked Questions

1. What is an X-Ray Machine Plastic Tube Head Service Cover?

It is a removable plastic enclosure component that provides controlled access to selected internal areas of an X-ray tube head for inspection, maintenance, adjustment, or servicing.

2. Can the service cover be designed for repeated removal?

Yes. The mounting arrangement can be designed with suitable screws, clips, snap-fits, or other retention features according to the required service frequency and enclosure design.

3. Which plastic materials can be used for the service cover?

ABS, PC+ABS, PC, PBT, and specified flame-retardant grades can be considered depending on the required mechanical, thermal, dimensional, electrical, and safety properties.

4. Can the service cover include ventilation or cable openings?

Yes. Ventilation slots, cable clearances, connector openings, inspection features, and other required interfaces can be incorporated according to the equipment design.

5. Can Renovator Appliances Ltd manufacture both the mould and service cover?

Yes. Renovator Appliances Ltd can provide the complete service from component development and mould design to mould manufacturing, Plastic Injection Moulding, quality inspection, and OEM/ODM production.
